BAT54WS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Green Products
BAT54WS SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features:
•
•
•
•
•
•
•
•
•
Low Turn-on Voltage
Fast Switching
PN Junction Guard Ring Transient and ESD Protection
Designed for Surface Mount Application
Plastic Material
—UL
Recognition Flammability Classification 94V-O
Green Products in Compliance with the ROHS Directive
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Mechanical Data:
•
•
•
•
Case: SOD-323, Molded Plastic
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.004 grams(approx)

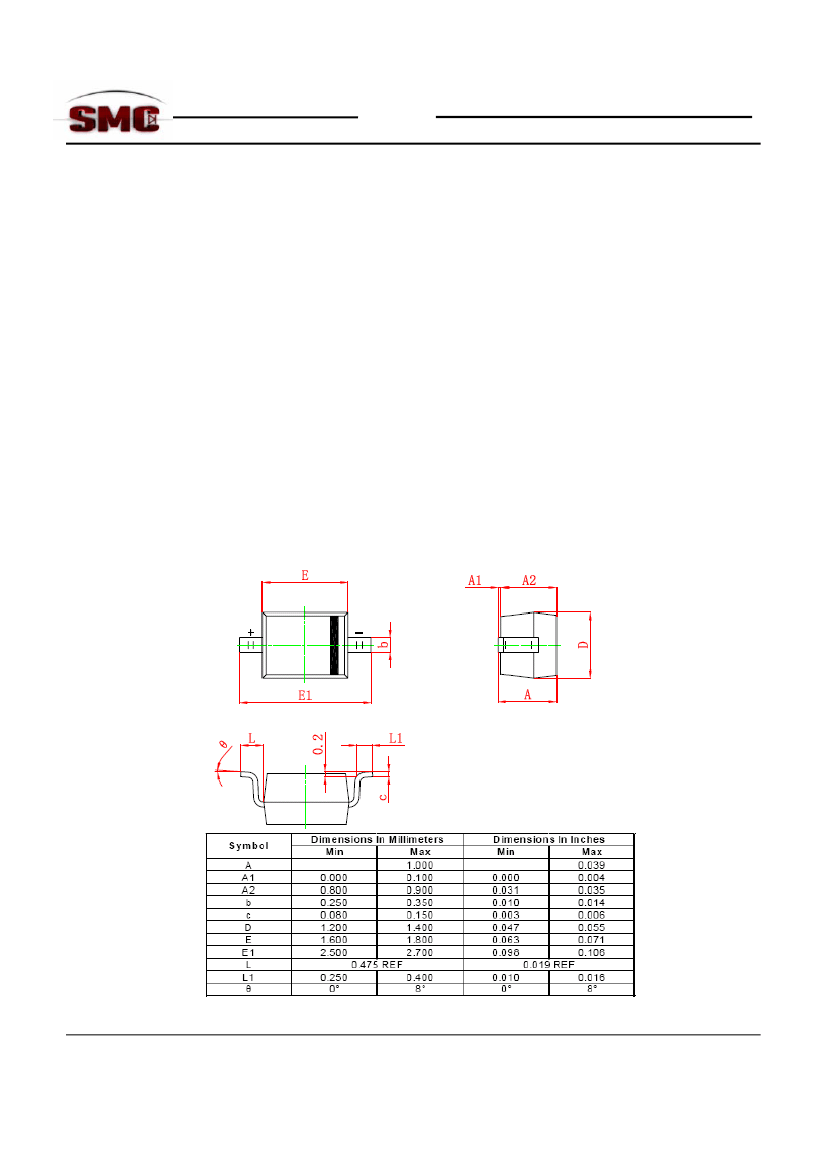

Mechanical Dimensions: In mm / Inches
SOD-323(CJ)
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS

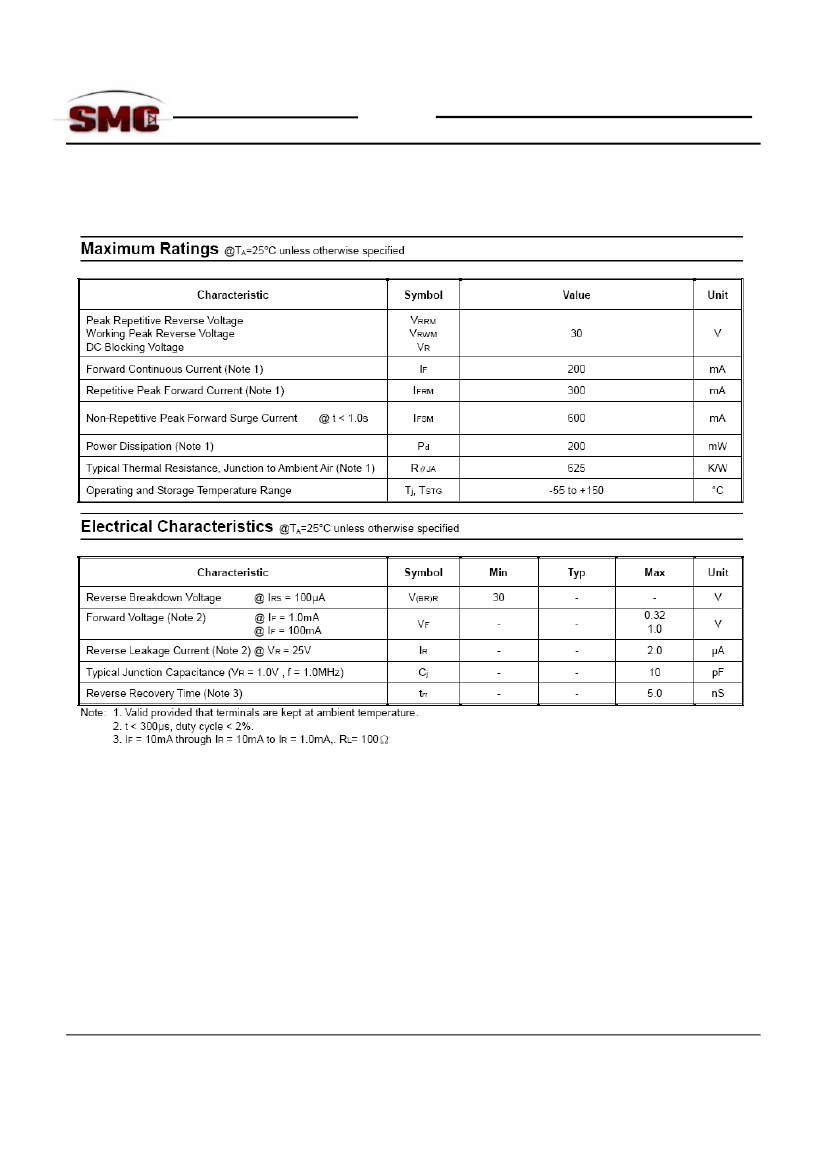

Technical Data
Data Sheet N0714, Rev. B
BAT54WS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Green Products
Marking Diagram:
Where X is Date Code
L48
= Part Name
Cautions：
Molding resin
Epoxy resin UL:94V-0

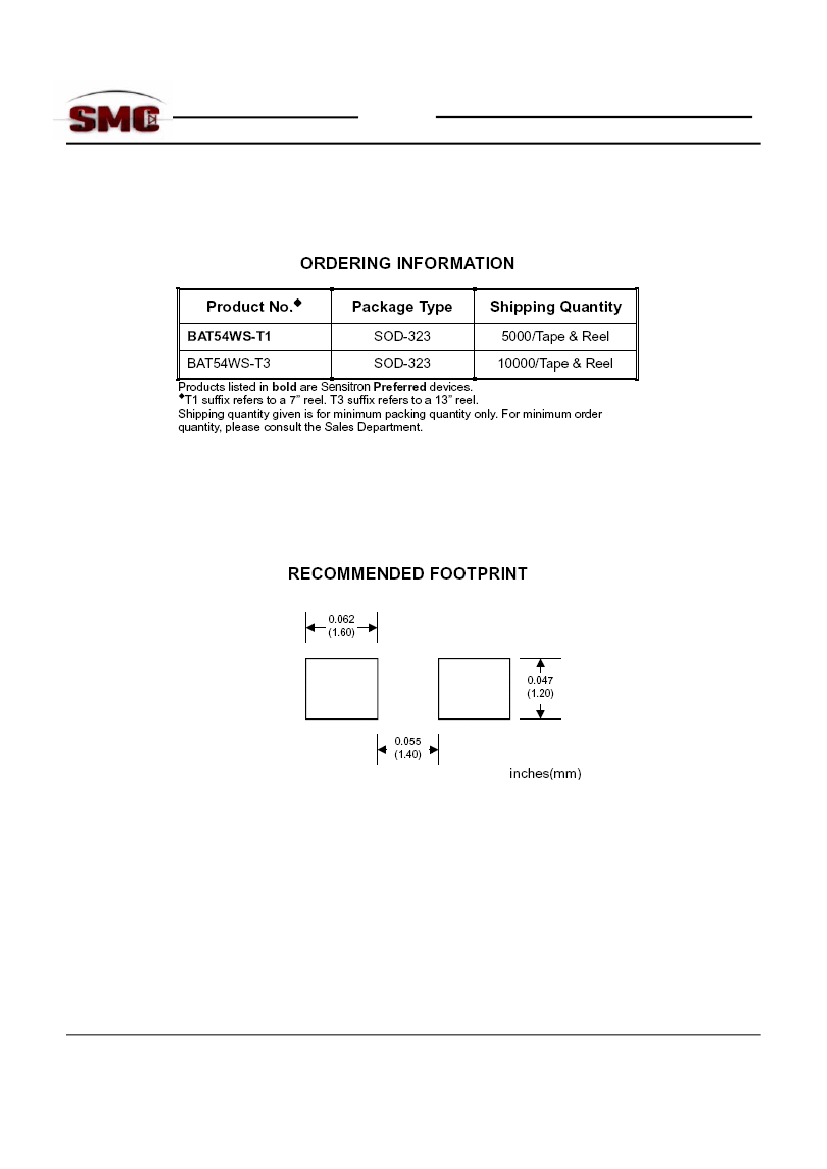

Ordering Information:
Device
BAT54WS
Package
SOD-323(Pb-Free)
Shipping
3000pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
•
