ST113017 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > ST113017

Preview

ST113017: DescriptionALL DIMENSIONS IN MM [INCH]; File Size147KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

ST113017 Overview

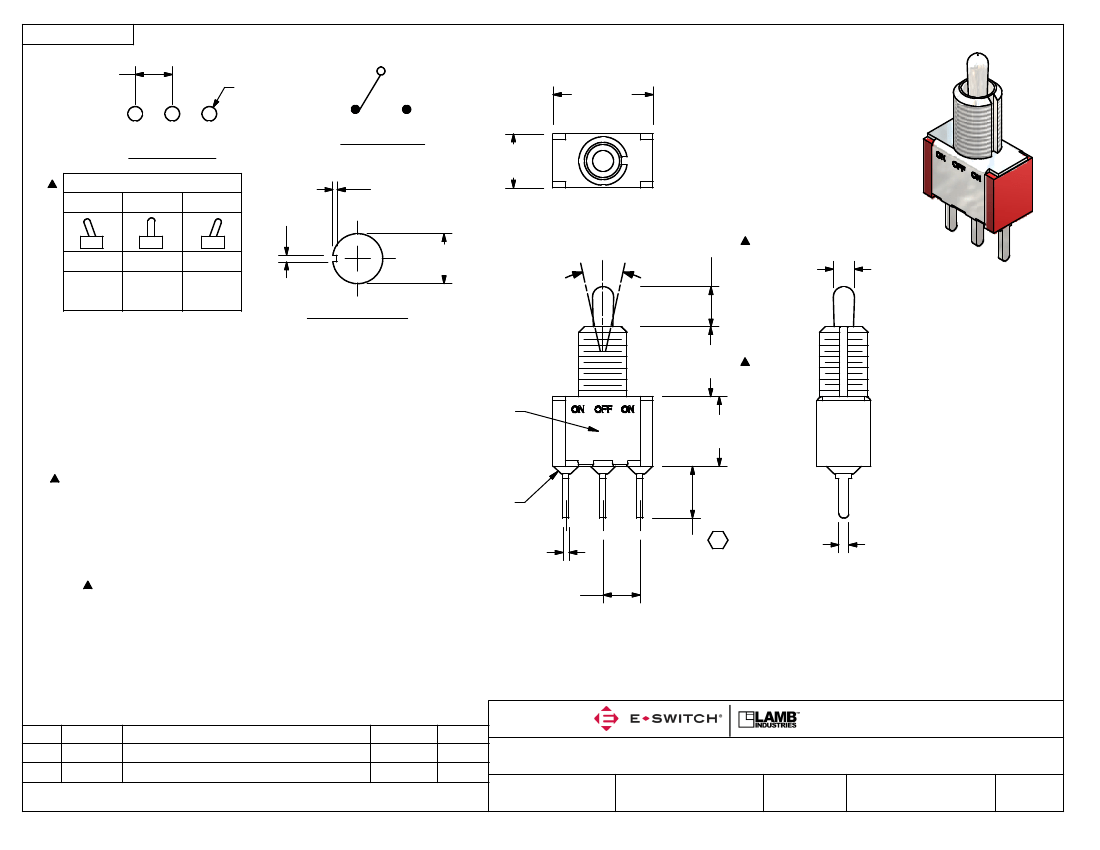

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

4.70

[.185 in]

1.85

[.073 in]

12.70

[.500 in]

6.86

[.270 in]

ISOMETRIC

CIRCUIT: SPDT

P.C. MOUNTING

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

.85

[.033 in]

.55

[.022 in]

2-3

OFF

OPEN

2-1

PANEL MOUNTING

6.35

[.250 in]

POS. 1

POS. 2

5.09

[.200 in]

POS. 3

[.105 in]

2.68

8.89

[.350 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 5A @120VAC OR 28VDC

2A @250VAC

6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30°C to 85°C

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT

12. HARDWARE TO BE SHIPPED BULK:

T100011 - LOCK WASHER, QTY 1

T100015 - LOCK RING, QTY 1

T100000 - HEX NUT, QTY 2

8.84

[.348 in]

EPOXY SEAL

.76

[.030 in]

4.70

[.185 in]

1.27

[.050 in]

6.60

[.260 in]

REV

19110

16137

PCR NO

DIM CHG. FOR LEAD LENGTH

NEW PART RELEASE

DESCRIPTION

5/27/10

6/13/06

DATE

BLR

TITLE

100SP3T2B1M2QEH

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

5/27/2010

BLR

ST113017
