Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
UMK325BJ475MN-T
Features
Item Summary
4.7uF±20%, 50V,
X5R, 1210/3225 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
500 MΩ·μF
Yes
Yes
Yes
Reflow
4.7 uF ± 20 %
1210/3225
50 V
10 %
X5R
-55 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.30 mm
2.5 ±0.20 mm
1.9 ±0.20 mm
0.60 ±0.30 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○UMK325BJ475MN
50V 3225 X5R 4.7uF +/- 20% t=2.1mmMAX
50V 1210 X5R 4.7uF +/- 20% t=0.083inchMAX
1000

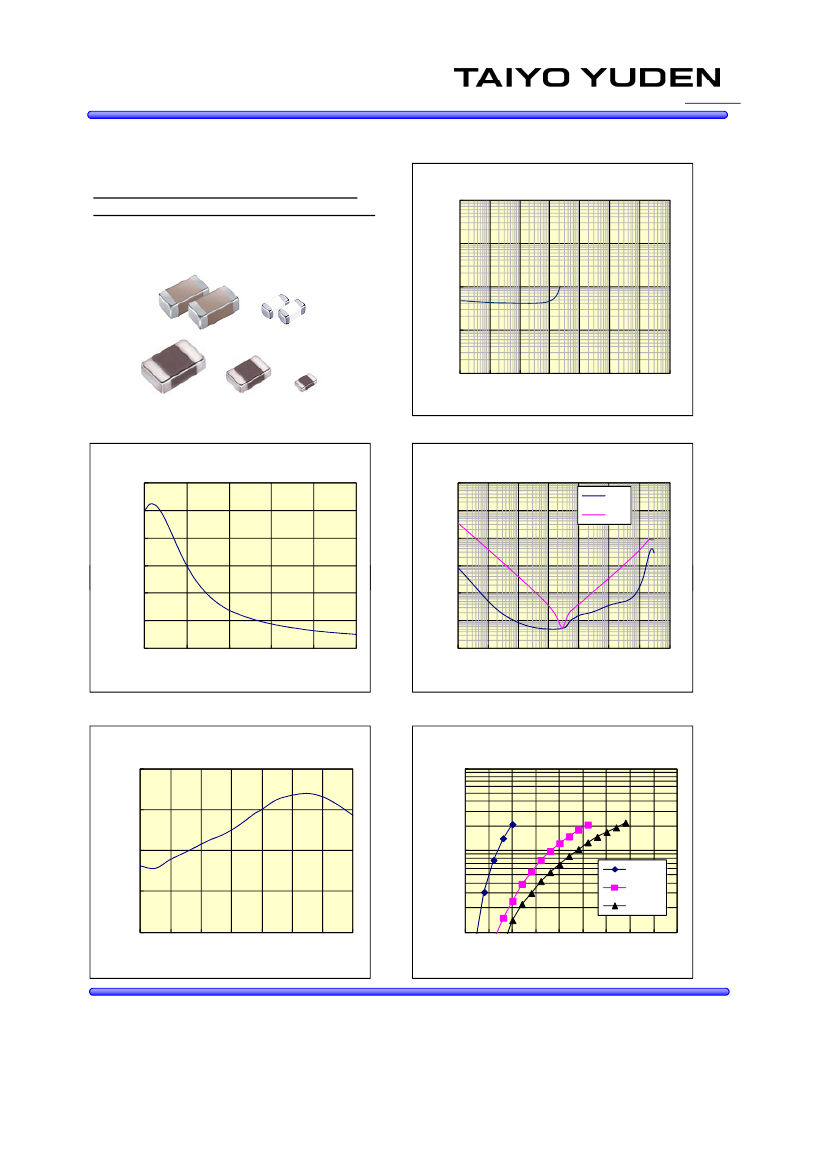

-Electrical Characteristics Data-
16R2A03
RoHS compliance product
UMK325BJ475MN
Capacita nce Freq.
100
Capacitance[uF]
10
1
0.1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
20
0
-20
UMK325BJ475MN
DC Bias Char.
1000
100
UMK325BJ475MN
Impedance,ESR Freq.
ESR
Z
-40
-60
-80
-100
0
10
20
30
40
DC Bias Voltage[V]
50
Z,ESR[O
Z,ESR[OHM]
10
1
dC/C
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
UMK325BJ475MN
Capacitance Temp.
10
100
UMK325BJ475MN
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5 2 2.5 3 3.5
Ripple Current[Arms]
4
4.5
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
