S3A/B - S3M/B
3.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Features
Glass Passivated Die Construction
Low Forward Voltage Drop and High Current Capability
Surge Overload Rating to 100A Peak
Ideally Suited for Automated Assembly
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SMB/SMC
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: SMB 0.093 grams (approximate)
SMC 0.21 grams (approximate)
Top View
Bottom View
Ordering Information*
(Note 4)
Part Number
S3xB-13-F
S3x-13-F
Notes:
Compliance
Standard
Standard
Case
SMB
SMC
Packaging
3000/Tape & Reel
3000/Tape & Reel
*x = Device type, e.g. S3AB-13-F (SMB package); S3A-13-F (SMC Package).
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
YWW
S3x(B)
S3x = Product Type Marking Code, ex. S3K (SMC)
S3xB = Product Type Marking Code, ex. S3KB (SMB)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 14 for 2014)
WW = Week code (01 to 53)
S3A/B - S3M/B
Document number: DS16005 Rev. 18 - 2
1 of 4
www.diodes.com
March 2014
© Diodes Incorporated
S3A/B - S3M/B
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
T
= +75°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
S3
A/AB
50
30
S3
B/BB
100
70
S3
D/DB
200
140
S3
G/GB
400
280
3.0
100
S3
J/JB
600
420
S3
K/KB
800
560
S3
M/MB
1000
700
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Terminal
Operating and Storage Temperature Range
(Note 5)
Symbol
R
θJT
T
J,
T
STG
Value
10
-65 to +150
Unit
°C/W
°C
Electrical Characteristics
Characteristic
Forward Voltage
Peak Reverse Current
at Rated DC Blocking Voltage
Typical Total Capacitance (Note 6)
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Symbol
@ I
F
= 3.0A
@ T
A
= +25°C
@ T
A
= +125 °C
V
FM
I
RM
C
T
Value
1.15
10
250
40
Unit
V
µA
pF
5. Thermal resistance: Junction to Terminal, unit mounted on PC board with 5.0 mm
2
(0.013 mm thick) copper pad as heat sink.
6. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
3.0
2.5
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
I
AV
, AVERAGE FORWARD CURRENT (A)
2.0
1.0
1.5
1.0
0.1
0.5
0
25
50
75
100
125
T
T
, TERMINAL TEMPERATURE (ºC)
Fig. 1 Forward Current Derating Curve
150
0.01
I
F
Pulse Width = 300
S
0
0.4
0.8
1.2
1.6
2.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
S3A/B - S3M/B
Document number: DS16005 Rev. 18 - 2
2 of 4
www.diodes.com
March 2014
© Diodes Incorporated

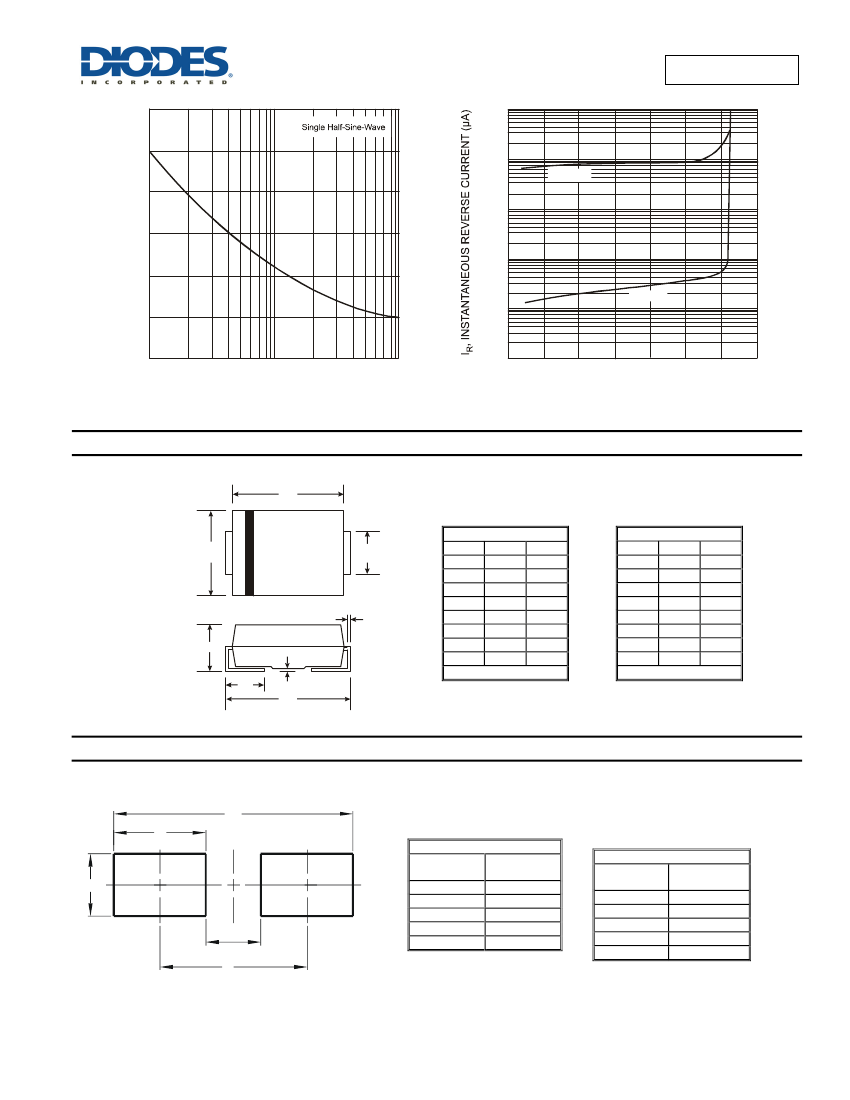

S3A/B - S3M/B
120
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
1,000
100
T
j
= 125°C
80
10
60
1.0
40
0.1
T
j
= 25°C
20
0
1
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Forward Surge Current Derating Curve
0.01
0
20
40
60
80
100
120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
B
A
C
D
J
H
E
G
SMB
Dim
Min
Max
A
3.30
3.94
B
4.06
4.57
C
1.96
2.21
D
0.15
0.31
E
5.00
5.59
G
0.05
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
SMC
Dim
Min
Max
A
5.59
6.22
B
6.60
7.11
C
2.75
3.18
D
0.15
0.31
E
7.75
8.13
G
0.10
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X
X 1
SMB
Y
G
C
Dimensions
C
G
X
X1
Y
Value
(in mm)
4.30
1.80
2.50
6.80
2.30
SMC
Dimensions
C
G
X
X1
Y
Value
(in mm)
6.80
4.40
2.50
9.40
3.30
S3A/B - S3M/B
Document number: DS16005 Rev. 18 - 2
3 of 4
www.diodes.com
March 2014
© Diodes Incorporated
S3A/B - S3M/B
