Dual Output Hall Effect Sensor
Hall Effect
Sensor
BEI now offers the latest in rugged, non-contacting Hall effect sensing
technology with the 9900 series rotary sensor. This design offers the benefits of
potentiometers (simple construction and few components) while providing the superior
reliability and durability of non-contacting technology.
Unlike most similar products, this design provides the full redundancy of two*
independent Hall detectors in a common package. The Hall detectors are rigidly
supported to meet the severe durability requirements in most automotive and off-highway
applications. The device contains two programmable Hall effect sensors that can be
configured to a wide variety of application requirements in a compact package with an
integral, sealed connector.

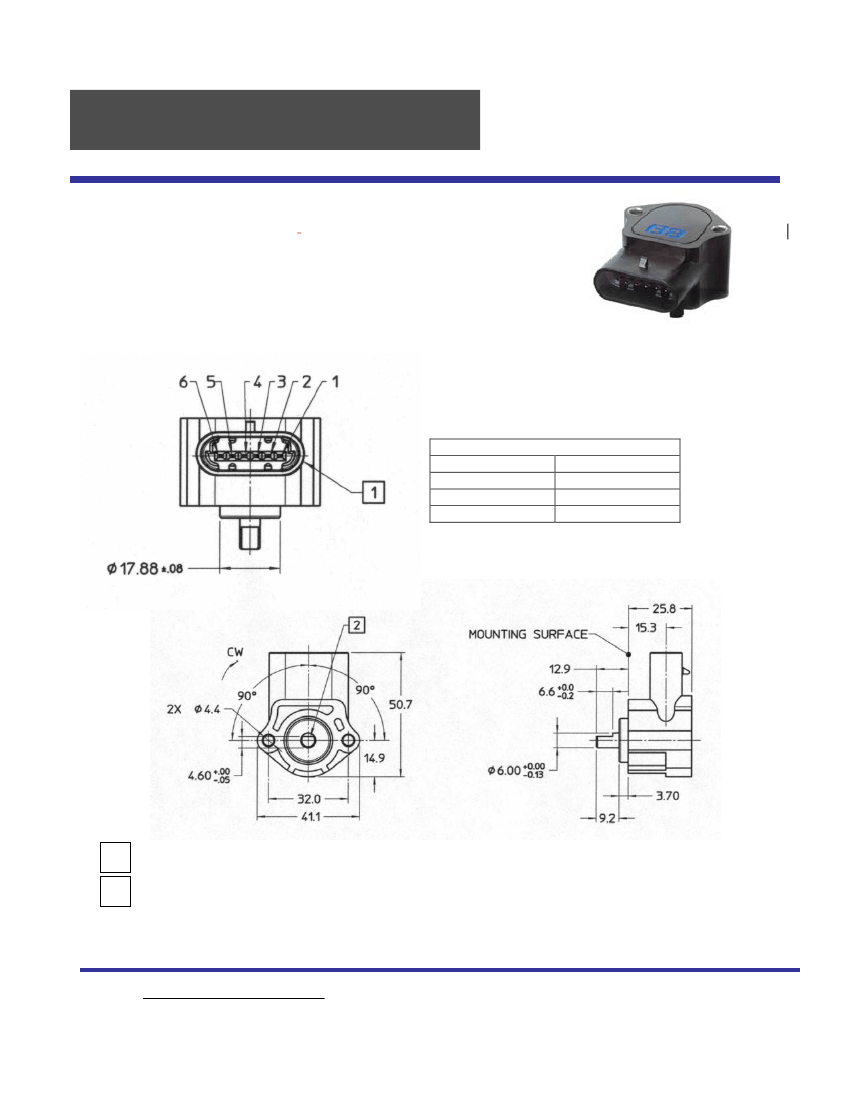

CONNECTOR PIN OUTPUT
SENSOR 1
SENSOR 2
Vs
1
5
GROUND
2
6
OUTPUT
4
3
1
2
Connector mates with Packard Electric METRI-Pack 150 series, pull-to-seat 6 pin sealed connector assemblies.
Shaft flat is shown with sensor outputs at 50% Vs.
NOTE: All dimensions are shown in millimeters.
*Single output sensors also available
15771 Red Hill Avenue
Phone: (714)258-7500
BEI
DUNCAN ELECTRONICS DIVISION
SENSORS & SYSTEMS COMPANY
Tustin, CA 92780-7303
Fax: (714)258-8120
Dual Output Hall Effect Sensor
Features
:
•
•
•
•
•
•
•
•
•
•
Rotating magnet / fixed sensor configuration provides improved accuracy and reliability
Two independent outputs for redundancy
Fully programmable outputs; programmable offset, gain, slope,
and temperature compensation
Sintered magnets provide excellent temperature stability and
corrosion resistance
Ratiometric output
One time programming through connector (at Duncan) provides
high accuracy
Fully sealed construction
Extended temperature range: -40° to +125°C available optionally
Can be provided with or without return spring
Clockwise or counterclockwise options available
Mechanical Specifications
Mechanical Travel
Frequency Response
Weight
-90° to +90°
1,000Hz minimum
40 grams maximum

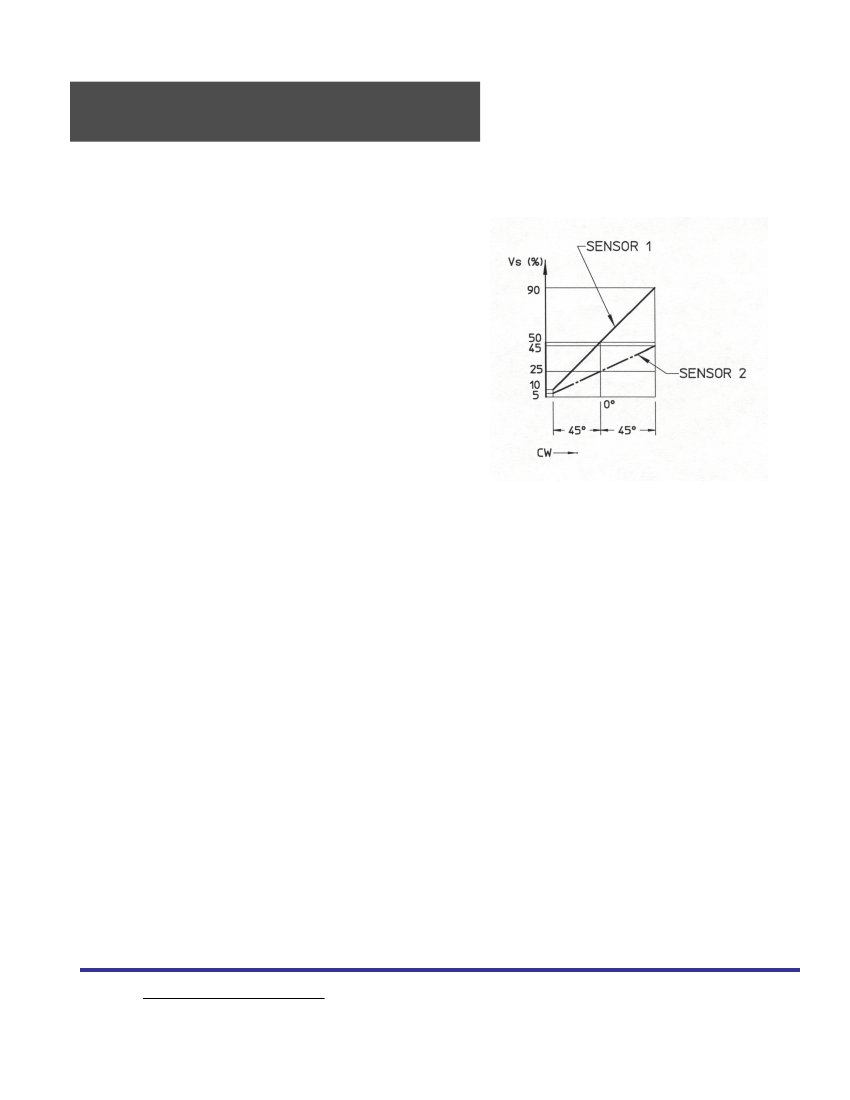

TYPICAL SENSOR OUTPUTS
Electrical Specifications
Mechanical Input Range
Input Voltage
Input Current
Sensor 1 Output
Sensor 2 Output
Accuracy
Resolution
-45° to +45° (-60° to +60° range available as a custom option)
5.0 V
±0.25V
DC
10mA maximum per output
20mA maximum total
0.5V - 4.5V
0.25V – 2.25V
(Different output voltage range for sensor outputs available as a custom option)
±2.0%
of full scale at room temperature
±3.0%
of full scale over operating temperature range
Analog (continuous)
Environmental Specifications
Electromagnetic Compatibility
Vibration
Shock
Operating temperature range
Storage temperature range
100V/meter, 14kHz – 1GHz range
5G peak, 60 – 2,000 Hz
50Gs, half sine pulse, 5 m sec duration
-40°C to +85°C
(wider operating temperature –40° to +125°C available as a custom option)
-55°C to +105°C
15771 Red Hill Avenue
Phone: (714)258-7500
BEI
DUNCAN ELECTRONICS DIVISION
SENSORS & SYSTEMS COMPANY
Tustin, CA 92780-7303
Fax: (714)258-8120
