8-171825-3 datasheet, PDF - EEWORLD Datasheet

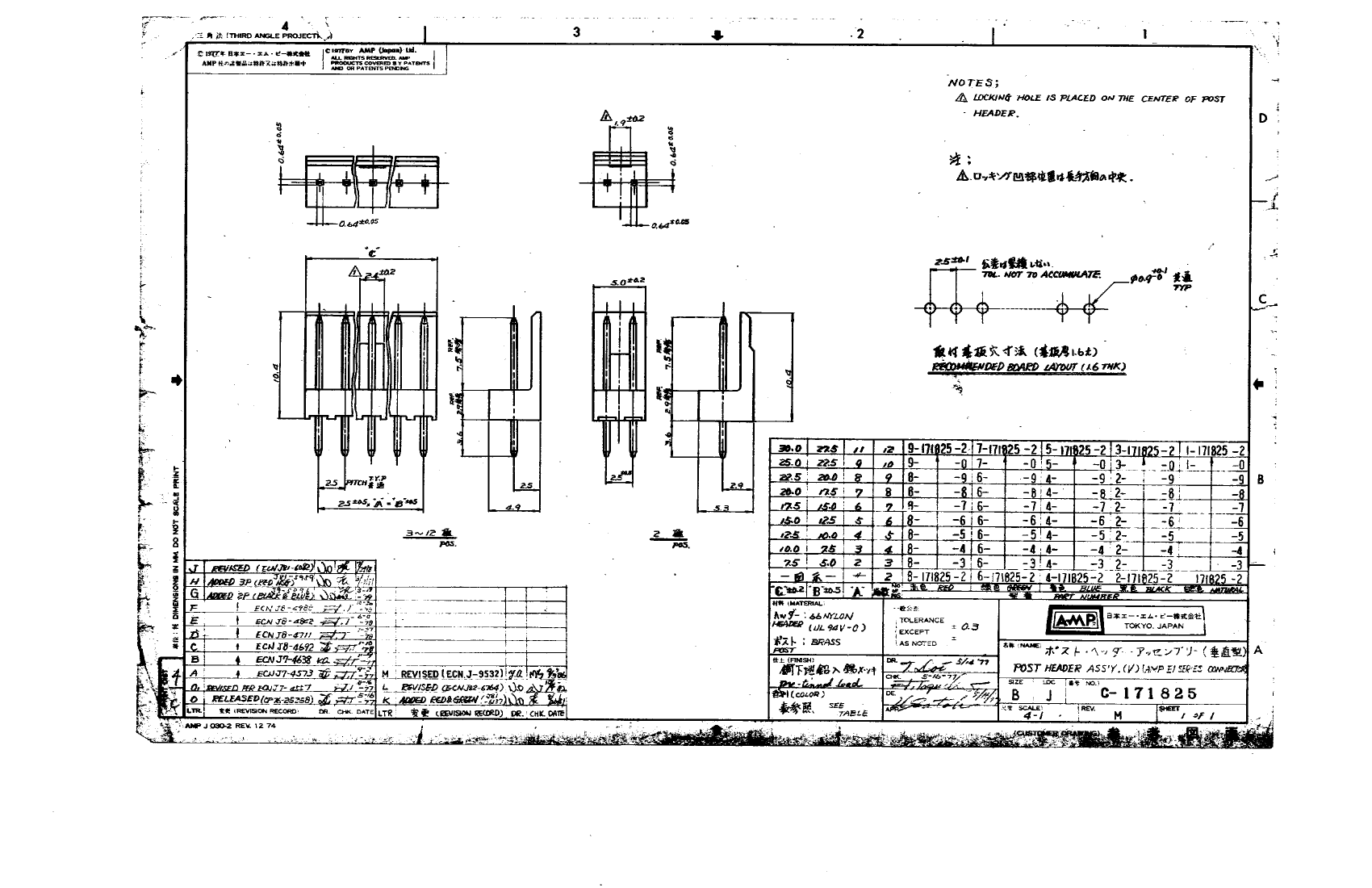

8-171825-3: Description3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-171825-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-171825-3	-	-	View	Buy Now

3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1483095334
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 5 days
Other features	ROHS & ELV COMPLIANT
body width	0.209 inch
subject depth	0.409 inch
body length	0.295 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	RED
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	95 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	31u inch
Rated current (signal)	3.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
