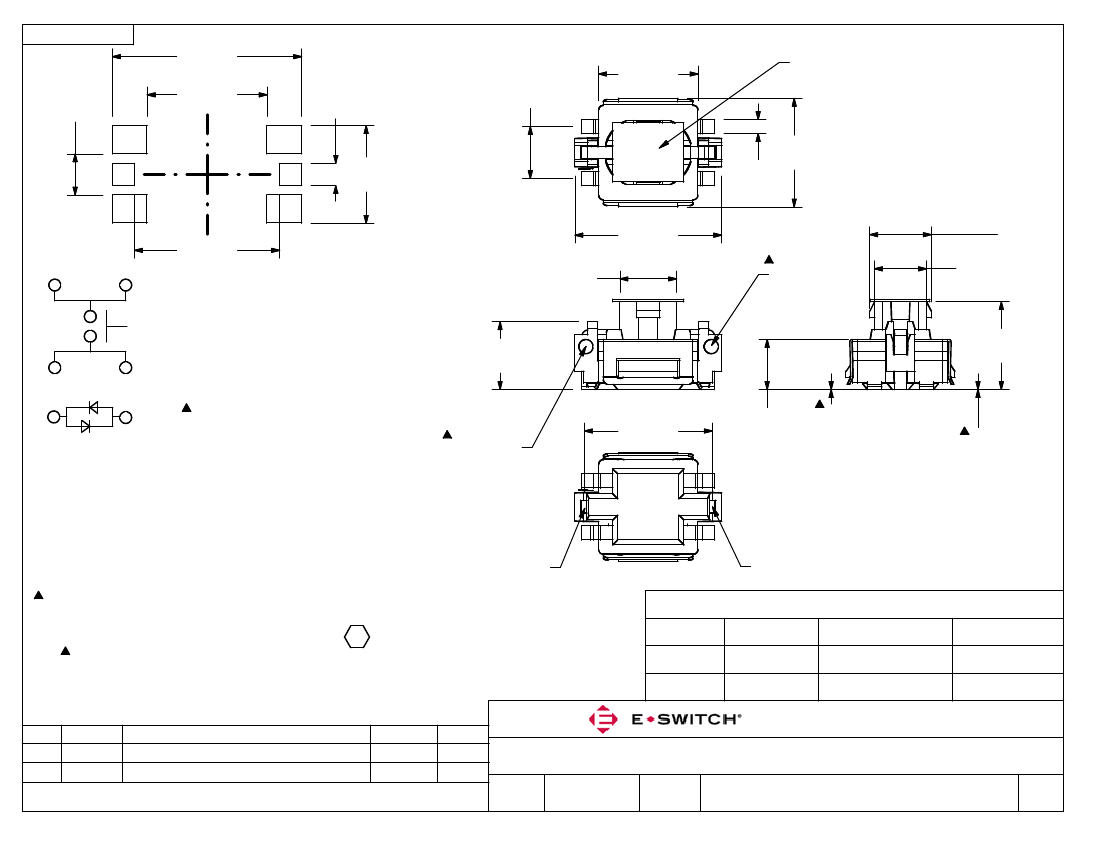

SHEET 1 OF 1
6.00
[.236 in]
1.30
[.051 in]
1
3.80
[.150 in]
.70
[.028 in]
2
3.10
[.122 in]
3
3
4.60
[.181 in]
1
2
2.40
[.094 in]
4
6.20
[.244 in]
CATHODE
GREEN LED
MARKING
2.60
[.102 in]
2.20
[.087 in]
4
4.60
[.181 in]
.60
[.024 in]
2.20
[.087 in]
1
4.20
[.165 in]
2
AUTOMATED PICKUP TAPE
REMOVE AFTER SOLDERING
L1
L2
2.87
[.113 in]
3
4
3.72
[.146 in]
+
L1
L2
_
GREEN-YELLOW
LED
CATHODE
YELLOW LED
MARKING
5.40
[.213 in]
2.12
[.083 in]
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=
`
0.4
X.XX=
`
0.25
3. RATING: 12VDC, 50mA MAX.
4. CONTACT RESISTANCE: 500m
W
MAX.
5. INSULATION RESISTANCE: 100M
W
MIN. @ 100VDC
6. TRAVEL: 0.45
`
0.15 mm
7. DIELECRIC STRENGTH: 250V AC FOR 1 MIN.
8. OPERATING FORCE: 200 ±80gf
9. OPERATING TEMPURATURE: -20
~
C TO 70
~
C
10. OPERATING LIFE: 100,000 CYCLES.
11. PACKAGING: TAPE & REEL, 1000 PIECES PER REEL B
12. DENOTES CRITICAL PARAMETER
13. 2002/95/EC (ROHS) COMPLIANT
.05
-.02
.002
-.001 in
Co-Planarity
of LED Leads
[
]
.05
.10
.002 in
.004
Co-Planarity
of Switch Leads
[
]
L1
L2
LED Specifications
LED Color
Green
Yellow
Forward Current
(mA)
20
20
Forward Voltage
(V @ 20mA)
1.7 min-2.1 typ
1.6 min-2.0 typ
Luminous Intensity
(mcd)
60 typ
180 typ
B
A
REV
21555
21518
PCR NO
CHANGE REEL QTY FROM 2000 TO 1000
New Release
DESCRIPTION
8/22/14
7/14/14
DATE
EBP
rc
BY
TITLE
TL6210AF200ZQ
DATE
DR
DWG
REV
