B200111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > B200111

Preview

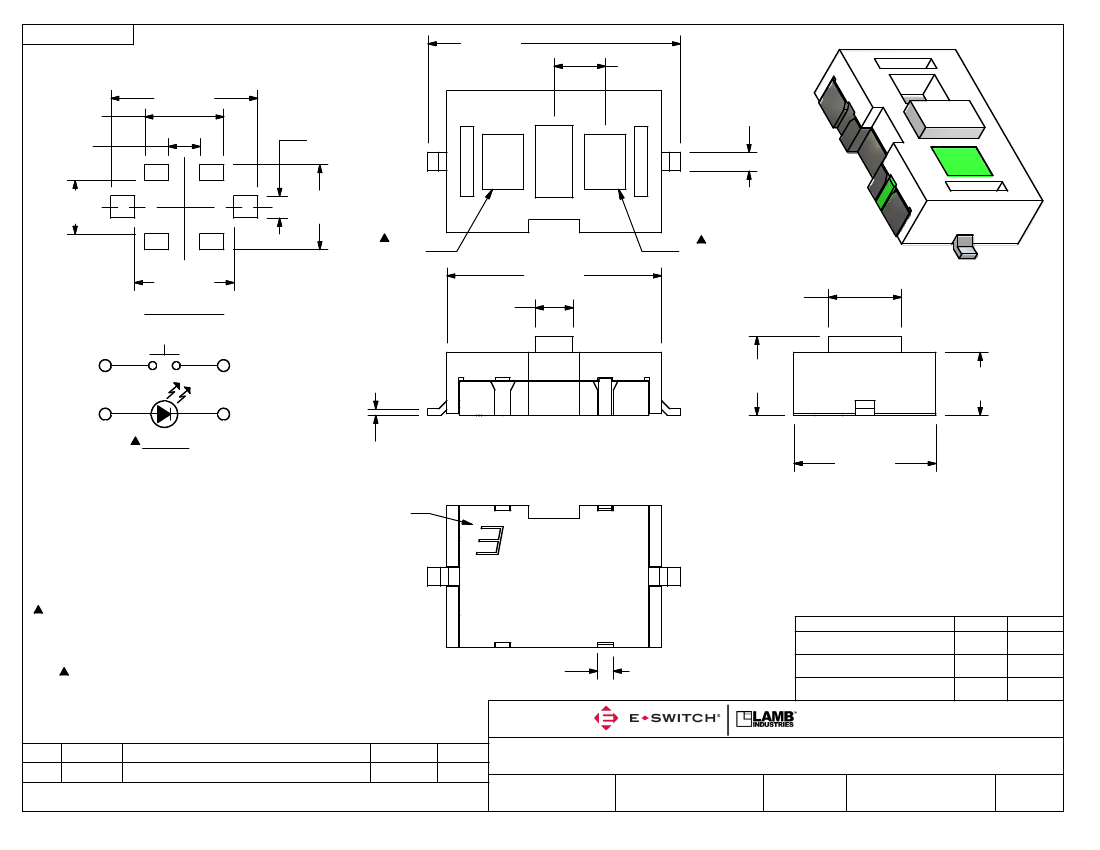

B200111: DescriptionAll Dimension In MM; File Size120KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

B200111 Overview

All Dimension In MM

Preview

Download Datasheet

View All

SHEET 1 OF 1

8.00

[.315 in]

1.63

[.064 in]

9.30

[.366 in]

1.40

[.055 in]

.60

[.024 in]

5.00

[.197 in]

2.00

[.079 in]

3.40

[.134 in]

5.40

[.213 in]

6.30

[.248 in]

NO LED

6.80

[.268 in]

1.20

[.047 in]

GREEN LED

PC MOUNTING

2.30

[.091 in]

2.50

[.098 in]

2.00

[.079 in]

Green

CIRCUIT

.20

[.008 in]

4.50

[.177 in]

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=

0.4

X.XX=

0.25

E-SWITCH

LOGO

LOCATION

RATING: 12VDC, 50mA MAX.

CONTACT RESISTANCE: 500 Milli OHMS MAX.

INSULATION RESISTANCE: 100VDC, 100 Mega OHMS MIN.

TRAVEL: 0.25 mm

OPERATING FORCE: 160 +75/-30gf

8. OPERATING TEMPURATURE: -20

C TO 70

9. OPERATING LIFE: 30,000 CYCLES MIN.

10. PACKAGING: TAPE & REEL, 3000 PIECES PER REEL

11. DENOTES CRITICAL PARAMETER

12. 2002/95/EC (ROHS) COMPLIANT

.50

[.020 in]

LED Specifications

Forward Current

Forward Voltage

Luminous Intensity @20mA

Units

mcd

Green

1.7-2.6

REV

19219

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

7/26/10

DATE

BLR

TITLE

TL3200AF160NGQ

8:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

7/26/2010

BLR

B200111
