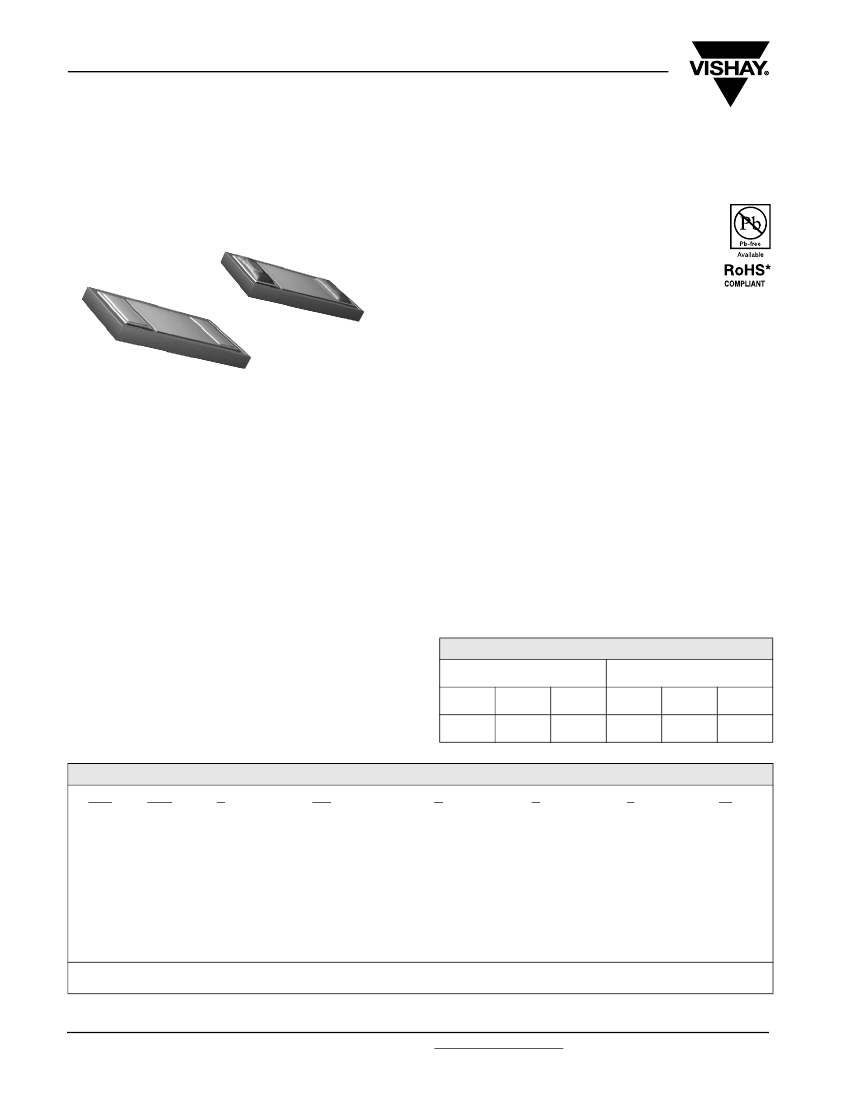

Not for new designs, this product will be discontinued soon
HPC0402B/C
Vishay
High Performance, High Precision Wire-Bondable 0402 Capacitor
for Smartcard, High-Frequency and
Substrate-Embedded Applications
FEATURES
•
Terminations are RoHS compliant in Au
(JEDEC “e4”). Sn/Ag/Cu (JEDEC “e1”) & Sn/Pb
available
•
New technology monolithic-silicon capacitor
based on a special semiconductor process
•
Construction reduces the parasitic inductance
and brings the SRF values to ultra-high frequencies
•
Capacitance is extremely stable in a wide range of
frequencies from 1 MHz to several GHz
•
High Q and low ESR
•
Tight tolerance to ± 1 % or 0.05 pF
•
Ultra high SRF
•
Low parasitic inductance (~ 0.032 nH)
•
Capacitance range: 0.1 pF to 180
•
Low profile - 0.18 mm (0.007 inches)
•
Wire-bondable (Type B) or SMD (Type C)
PATENTED
ELECTRICAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 125 °C
Temperature Coefficient
of Capacitance (TCC):
0 ± 30 ppm/°C
Insulation Resistance:
10
11
Ω
min
Voltage:
2.5 x rated voltage (DC)
for 5 seconds
Ageing:
none
APPLICATIONS
•
Contactless Smart Cards
•
Embedded substrates
•
High-frequency/high data-rate circuits
ENVIRONMENTAL SPECIFICATIONS
Life Test:
Thermal Shock:
Moisture Resistance:
1000 hours, + 125 °C at
2 x rated voltage (DC)
100 Cycles, - 55 °C/+ 150 °C
1000 hours at rated DCV,
85 % RH, + 85 °C
CAPACITANCE TOLERANCE CODE
FOR LESS THAN 10 pF
A
B
C
FOR 10 pF AND HIGHER
F
±1%
G
±2%
J
±5%
± 0.05 pF ± 0.10 pF ± 0.25 pF
ORDERING INFORMATION
HPC
MODEL
0402
SIZE
B
TYPE
B or C
B = WB
C = SMD
101
CAPACITANCE VALUE
The first two digits are
significant, the third is a
multiplier. An “R”
indicates a decimal point.
Examples: 101 = 100 pF
Expressed in pF
G
CAPACITANCE
TOLERANCE
see chart above
G
TERMINATION
G = Gold bonding
termination
(B type)
W = Lead
(Pb)-free
X = Tin/Lead
termination
(C type)
X
VOLTAGE
1=6V
Z = 10 V
Y = 16 V
X = 25 V
M = 50 V
L = 100 V
T0
PACKAGING
T0 = 10 000 pcs
T5 = 5000 pcs
T1 = 1000 pcs
tape and reel
W = 20 000 pcs
on dicing frame
(available on
B type only)
For “C” Type, “W” terminations preferred over “X”.
“See Part Numbering System, Document 10147, for complete explanations.”
* Pb containing terminations are not RoHS compliant, exemptions may apply.
www.vishay.com
16
For technical questions, contact: siliconRFcap@vishay.com
Document Number: 10120
Revision: 16-Dec-08
Not for new designs, this product will be discontinued soon
HPC0402B/C
High Performance, High Precision
Wire-Bondable 0402 Capacitor for
Smartcard, High-Frequency and
TYPE B - DIMENSIONS
L
B
T
Vishay
DIMENSION
L
W
INCHES
0.040 ± 0.002
0.020 ± 0.002
0.007 ± 0.001
0.006 ± 0.002
0.028 ± 0.002
0.014 ± 0.002
MILLIMETERS
1.02 ± 0.05
0.51 ± 0.05
0.18 ± 0.02
0.15 ± 0.05
0.71 ± 0.05
0.37 ± 0.05
W
C
T
A
A
B
C
TYPE C - DIMENSIONS
L
W
DIMENSION
L
INCHES
0.040 ± 0.002
0.020 ± 0.002
0.010 ± 0.002
0.006 ± 0.002
0.028 ± 0.002
0.014 ± 0.002
MILLIMETERS
1.02 ± 0.05
0.51 ± 0.05
0.25 ± 0.05
0.15 ± 0.05
0.71 ± 0.05
0.37 ± 0.05
T
A
B
C
W
T
A
B
For PAD Design please see assembly/reflow recommendations document 10125.
C
CAPACITANCE RANGE AND VOLTAGE
See HPC0402A data sheet, document number 10117.
Document Number: 10120
Revision: 16-Dec-08
For technical questions, contact: siliconRFcap@vishay.com
www.vishay.com
17
