AQY21: DescriptionDUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX; CategoryLED optoelectronic/LED; File Size160KB，3 Pages; ManufacturerETC2

Download Datasheet Parametric View All

AQY21 Overview

DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX

AQY21 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	2
Processing package description	0.388 X 0.252 INCH, 0.126 INCH HEIGHT, SMD, DIP-8
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	NOT SPECIFIED
structure	SEPARATE, 2 ELEMENTS
Optoelectronic device type	TRANSISTOR OUTPUT
Maximum input control current	50 mA
Maximum insulation voltage	5000 V
On-state resistance	2.5 ohm
Maximum output current	600 A

Preview

Download Datasheet

View All

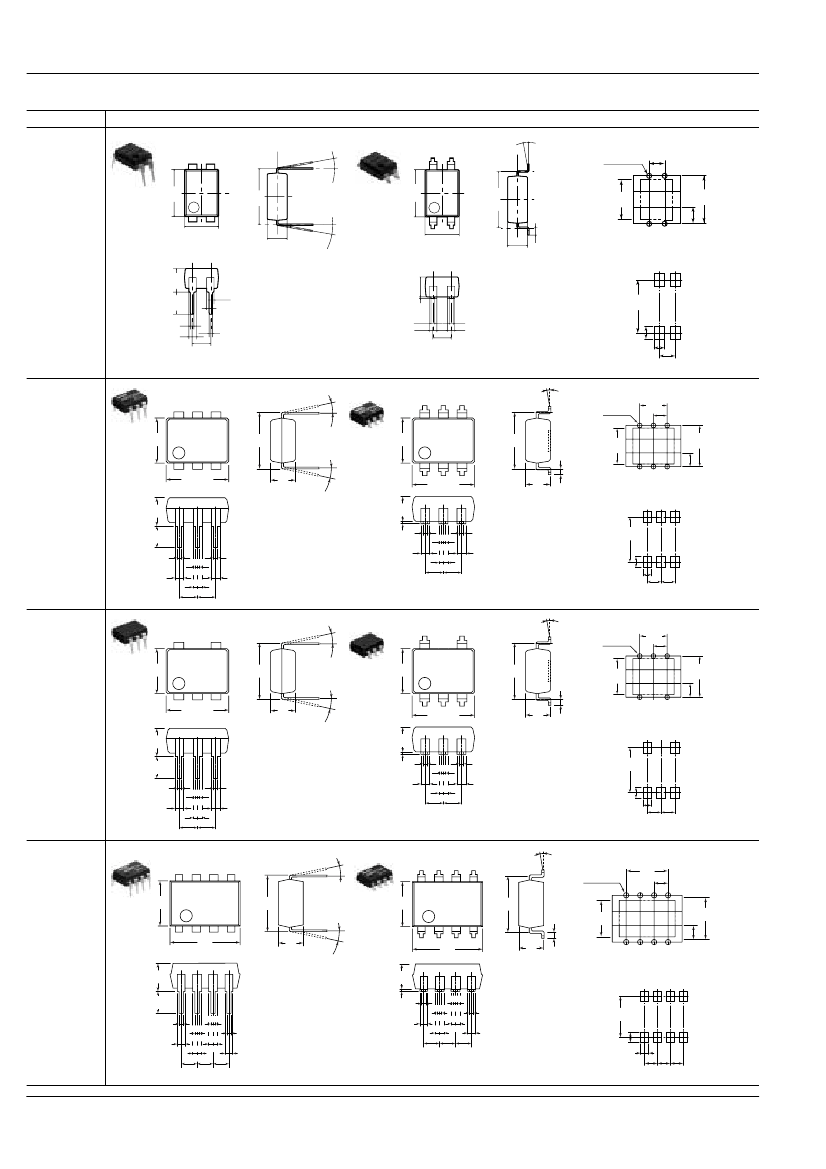

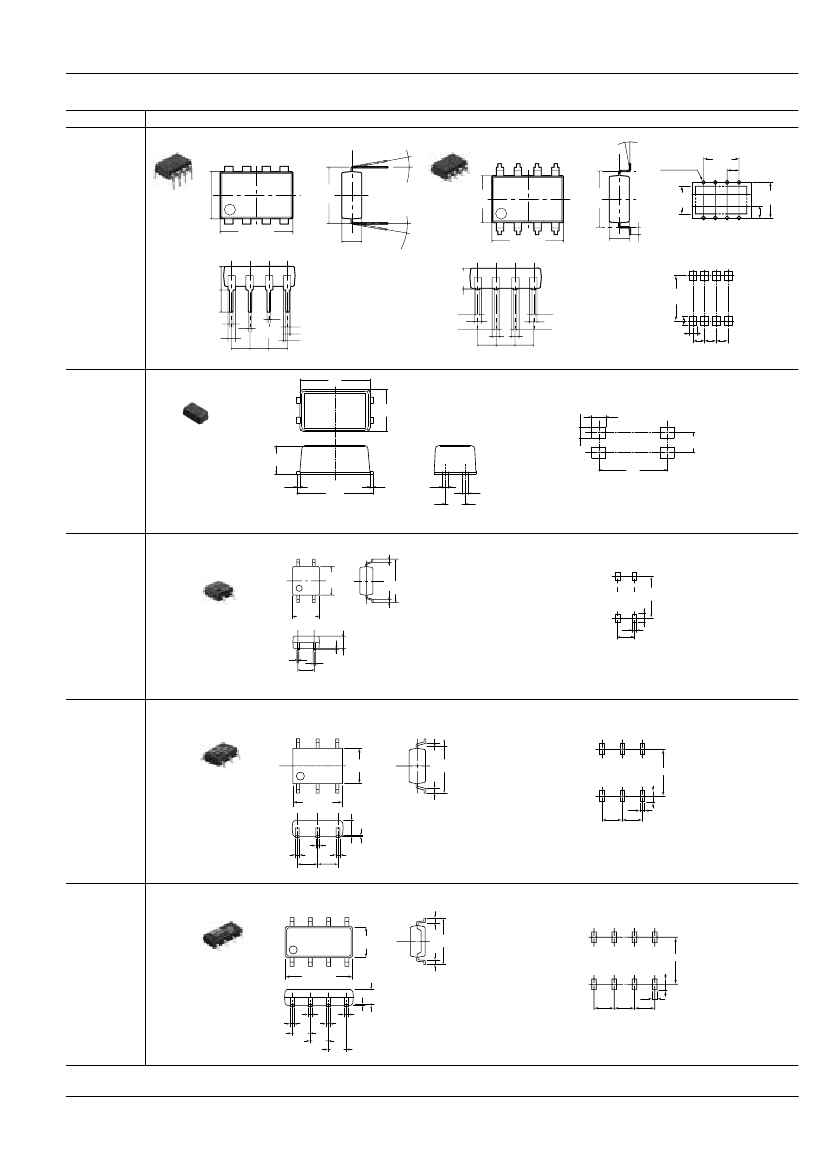

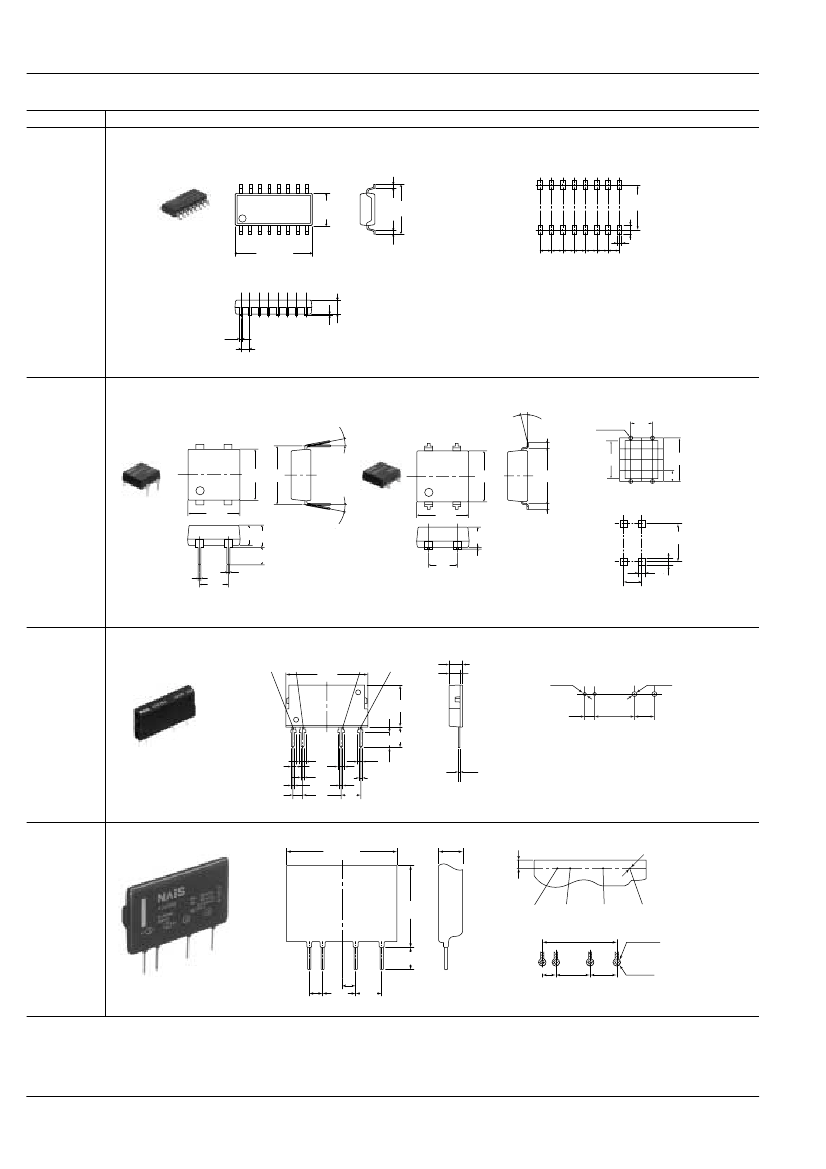

PhotoMOS Relay Dimensions

Type

Through hole terminal type

Max. 10°

mm

inch

Max. 10°

Dimensions

Surface mount terminal type

PC board pattern (Bottom view)

4-0.8 dia.

4-.031 dia.

2.54

.100

7.62

.300

6.4±0.05

.252±.002

7.62±0.05

.300±.002

Max. 10°

4.78±0.05

.188±.002

6.4±0.05

.252±.002

7.62±0.05

.300±.002

1.0

.039

2.7±0.05

.106±.002

6.4

.252

AQY21

AQY41

Series

3.2±0.2

.126±.008

3.0

.118

0.47

.019

1.0

.039

2.7±0.05

.106±.002

4.78±0.05

.188±.002

2.54

.100

Tolerance:±0.1

±.004

Mounting pad (Top view)

0.2

.008

0.33

.013

0.47

.019

2.54

.100

2.7±0.05

.106±.002

0.2

±0.2

0

.008

±.008

0

0.47

.019

0.47

.019

2.54

.100

1.0

.039

8.3

.327

Terminal thickness =

0.2

.008

General tolerance:

±0.1

±.004

1.0

.039

Terminal thickness =

0.2

.008

General tolerance:

±0.1

±.004

Max. 10°

1.9

.075

1.5

.059

2.54

.100

Tolerance:

±0.1

±.004

Through hole terminal type

Surface mount terminal type

PC board pattern (Bottom view)

6-0.8 dia.

6-.031 dia.

5.08

.200

2.54

.100

2.54 7.62

.100 .300

AQV10

AQV20

AQV21

AQV22

AQV23

AQV25

AQV41

AQV45

Series

6.4±0.05

.252±.002

7.62±0.05

.300±.002

Max. 10°

6.4±0.05

.252±.002

7.6

.299

1

.039

8.8±0.05

.346±.002

3.4

.134

6.4

.252

8.8±0.05

.346±.002

3.9±0.2

.154±.008

3

.118

0.47

.019

1.25

.049

2.54

.100

0.47

.019

1.25

.049

0.47

.019

1.25

.049

2.54

.100

3.4

.134

3.4

.134

0.47

.019

1.25

.049

Tolerance:±0.1

±.004

Recommended

mounting pad (Top view)

8.3

.327

1.9

.075

1.5

.059

Terminal thickness =

0.25

.010

0.2

.008

+0.2

−0

+.008

−0

0.47

.019

1.25

.049

2.54 2.54

.100 .100

0.47

.019

1.25

.049

Terminal thickness =

0.25

.010

General tolerance:

±0.1

±.004

General tolerance:

±0.1

±.004

Max. 10°

2.54 2.54

.100 .100

Through hole terminal type

Surface mount terminal type

PC board pattern (Bottom view)

5.08

6-0.8 dia.

6-.031 dia. .200

2.54

.100

2.54 7.62

.100 .300

6.4±0.05

.252±.002

7.62±0.05

.300±.002

Max. 10°

6.4±0.05

.252±.002

7.6

.299

1

.039

8.8±0.05

.346±.002

3.4

.134

6.4

.252

APV1122

Series

8.8±0.05

.346±.002

3.9±0.2

.154±.008

3

.118

0.47

.019

1.25

.049

2.54

.100

0.47

.019

1.25

.049

0.47

.019

1.25

.049

2.54

.100

3.4

.134

3.4

.134

0.47

.019

1.25

.049

Tolerance:±0.1

±.004

Recommended

mounting pad (Top view)

8.3

.327

1.9

.075

1.5

.059

Terminal thickness =

0.25

.010

0.2

.008

+0.2

−0

+.008

−0

0.47

.019

1.25

.049

2.54 2.54

.100 .100

0.47

.019

1.25

.049

Terminal thickness =

0.25

.010

General tolerance:

±0.1

±.004

General tolerance:

±0.1

±.004

Max. 10°

2.54 2.54

.100 .100

Through hole terminal type

Max. 10°

6.4

.252

7.62

.300

Max. 10°

9.78

.385

3.4

.134

Surface mount terminal type

PC board pattern (Bottom view)

8-0.8 dia.

8-.031 dia.

7.62

.300

2.54

.100

2.54 7.62

.100 .300

6.4

.252

7.62

.300

6.4

.252

1

.039

9.78

.385

3.4

.134

AQW21

AQW22

AQW25

AQW41

AQW45

AQW61

AQW65

Series

3.9±0.2

.154±.008

3

.118

0.47

.019

1

.039

0.47

.019

1.25

.049

2.54 2.54 2.54

.100 .100 .100

0.47

.019

1

.039

Terminal thickness =

0.25

.010

3.4

.134

0.2

+0.2

−0

.008

+.008

0.47

−0

.019

1

.039

Tolerance:±0.1

±.004

Recommended

mounting pad (Top view)

8.3

.327

1.9

.075

1.5

.059

2.54 2.54 2.54

.100 .100 .100

0.47

.019

1.25

.049

2.54 2.54 2.54

.100 .100 .100

0.47

.019

1

.039

Terminal thickness =

0.25

.010

General tolerance:

±0.1

±.004

General tolerance:

±0.1

±.004
