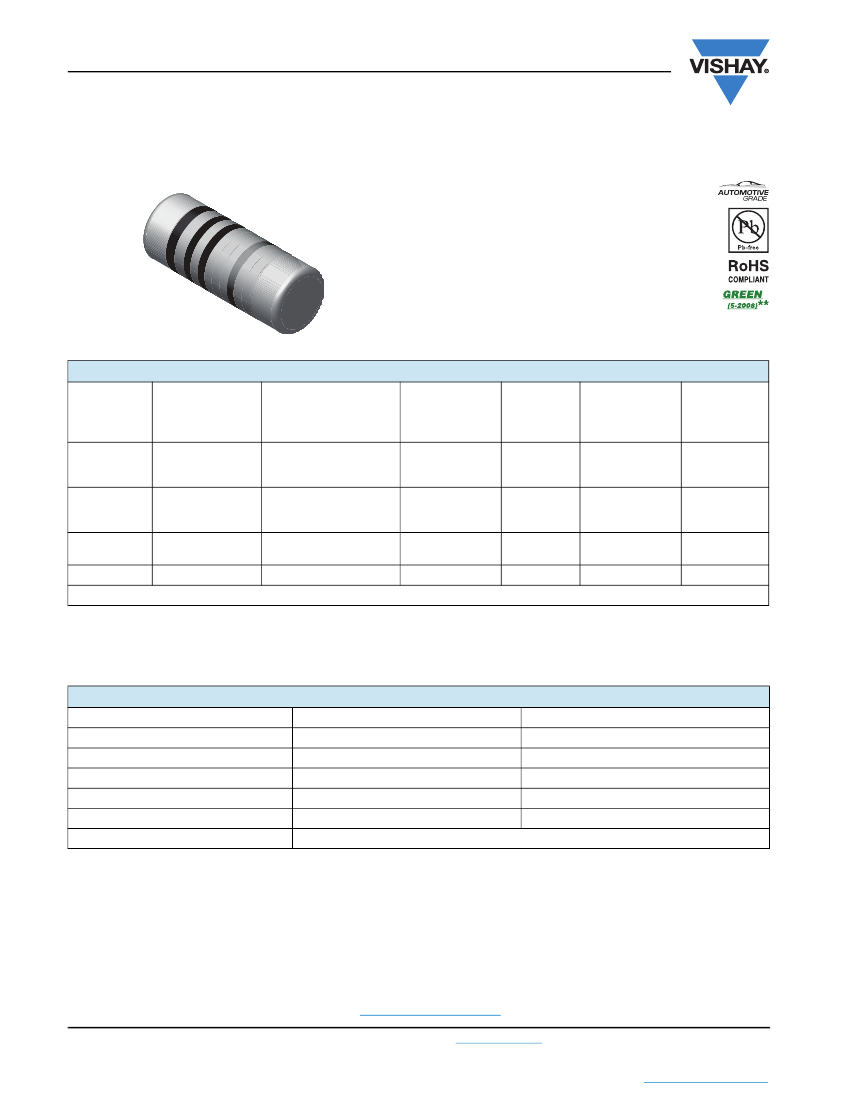

SMM0204
Vishay Draloric
Thin Film Mini-MELF Resistors
FEATURES
Advanced thin film technology
AEC-Q200 qualified
Low TCR and tight tolerances
Excellent stability in different environmental
conditions
Pure tin termination on nickel barrier, plated on
press fit steel caps
Compliant to RoHS Directive 2002/95/EC
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
POWER RATING
P
70
W
LIMITING ELEMENT
VOLTAGE
DC or AC
RMS
V
200
TEMPERATURE
COEFFICIENT
ppm/K
TOLERANCE
%
± 0.1
± 0.25
± 0.5
± 0.1
± 0.25
±0.5
± 0.5
±1
±5
RESISTANCE
RANGE
43R to 221K
22R to 221K
10R to 221K
43R to 511K
22R to 511K
10R to 1M0
10R to 1M0
R82 to 10M
R22 to 10M
E-SERIES
SMM0204
0.25
± 15
24; 96; 192
SMM0204
0.25
200
± 25
24; 96; 192
24; 96; 192
24; 96
24
SMM0204
SMM0204
0.25
0.25
200
200
R
max.
= 10 m
± 50
± 100
I
max.
= 3 A
Zero-Ohm-Resistor: OMM0204
Notes
• SMM0204 EN803 E0 and OMM0204 EN803 E0 respectively are available versions with IECQ-CECC approval to EN 140401-803, version A,
with nominal failure rate level E0.
• The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow support of the
printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature of 155 °C is not exceeded.
TECHNICAL SPECIFICATIONS
PARAMETER
Power rating
P
70
Limiting element voltage, DC or AC
RMS
Insulation voltage (1 min), DC or AC
PEAK
Insulation resistance
Category temperature range
Failure rate: FIT
observed
UNIT
W
V
V
°C
0.1 x 10
-9
/h
SMM0204
0.25
200
300
10
10
- 55 to + 125 (+ 155)
Notes
• The upper temperature limit of 125 °C reflects the prescriptions of the detail specification EN 140401-803. However, the products may be
operated up 155 °C, if the tradeoff through decreased drift stability is acceptable to the specific application.
• The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow support of the
printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature of 125 °C or 155 °C respectively
is not exceeded.
• The specification of this product is based on a test board according to EN 140400, providing a thermal resistance of approximately 220 K/W.
• These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.
• The IECQ-CECC approved product versions SMM0204 EN803 E0 and OMM0204 EN803 E0 respectively feature a quality factor
Q
= 3 for
the purpose of system MTBF calculations, compared with
Q
= 10 for the standard versions.
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
www.vishay.com
30
For technical questions, contact:
melf@vishay.com
Document Number: 20004
Revision: 16-Sep-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
Thin Film Mini-MELF Resistors
Vishay Draloric
DIMENSIONS
L
K
L
1
D
1
D
DIMENSIONS AND MASS
TYPE
SMM0204
OMM0204
L
(mm)
3.6 + 0/- 0.15
D
max.
(mm)
1.4
L
1 min.
(mm)
1.75
D
1
(mm)
D + 0/- 0.15
K
(mm)
0.85 + 0/- 0.35
MASS
(mg)
18
Notes
• Color code marking is applied according to IEC 60062 in four bands for 5 % tolerance, or in five bands. Each color band appears as a single
solid line, voids are permissible if at least
2
/
3
of the band is visible from each radial angle of view. The last color band for tolerance is
approximately 50 % wider than the other bands.
• The color of the body coating is light green for jumpers and for a temperature coefficient of ± 50 ppm/K or of ± 100 ppm/K, pink for ± 25 ppm/K,
or violet for ± 15 ppm/K.
• Zero ohm jumper are marked with one centered black band.
PATTERN STYLES FOR MELF RESISTORS
G
Y
Z
X
RECOMMENDED SOLDER PAD DIMENSIONS
WAVE SOLDERING
TYPE
G
(mm)
1.5
Y
(mm)
1.5
X
(mm)
1.8
Z
(mm)
4.5
G
(mm)
1.6
REFLOW SOLDERING
Y
(mm)
1.25
X
(mm)
1.7
Z
(mm)
4.1
SMM0204
OMM0204
Note
• The given solder pad dimensions reflect the considerations for board design and assembly as outlined e.g. in standards IEC 61188-5-x, or in
publication IPC-7351. They do not guarantee any supposed thermal properties, however, they will be found adequate for most general
applications.
Document Number: 20004
Revision: 16-Sep-11
For technical questions, contact:
melf@vishay.com
www.vishay.com
31
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
Vishay Draloric
Thin Film Mini-MELF Resistors
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: SMM02040C5620FB000
Part Number: OMM02040000000B000
S
O
M
M
M
M
0
0
2
2
0
0
4
4
0
0
C
0
5
0
6
0
2
0
0
0
F
0
B
B
0
0
0
0
0
0
MODEL
SMM0204
OMM0204
VERSION
0
= Neutral
V
= EN 140401-803,
version A, nominal
failure rate level E0
TCR
E
= ± 15 ppm/K
D
= ± 25 ppm/K
C
= ± 50 ppm/K
B
= ± 100 ppm/K
0
= Jumper
RESISTANCE
3 digit value
1 digit multiplier
0000 =
Jumper
MULTIPLIER
7
= *10
-3
2
= *10
2
8
= *10
-2
3
= *10
3
9
= *10
-1
4
= *10
4
0
= *10
0
5
= *10
5
1
= *10
1
TOLERANCE
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
=±1%
J
=±5%
0
= Jumper
PACKAGING
B1
B3
B0
M3
Product Description: SMM0204 50 562R 1 % B0
Product Description: OMM0204 0R0 B0
SMM0204
OMM0204
MODEL
SMM0204
OMM0204
50
-
TCR
±
15
ppm/K
±
25
ppm/K
±
50
ppm/K
±
100
ppm/K
562R
0R0
RESISTANCE
100R
= 100
2M21
= 2.21 M
0R0
= Jumper
1%
-
TOLERANCE
±
0.1
%
±
0.25
%
±
0.5
%
±
1
%
±
5
%
B0
B0
PACKAGING
B1
B3
B0
M3
-
-
VERSION
Note
• Products can be ordered using either the PART NUMBER or the PRODUCT DESCRIPTION.
PACKAGING
TYPE
CODE
B1
(1)
B3
SMM0204
OMM0204
B0
M3
B1
SMM0204 EN803 E0
OMM0204 EN803 E0
B3
B0
QUANTITY
1000
(1)
3000
10 000
3000
1000
3000
10 000
Blister tape
acc. IEC 60286-3
Type II
180 mm/7"
8 mm
4 mm
330 mm/13"
Bulk case
acc. IEC 60286-6
-
-
Blister tape
acc. IEC 60286-3
Type II
180 mm/7"
8 mm
4 mm
330 mm/13"
-
CARRIER TAPE
WIDTH
PITCH
REEL DIAMETER
Note
(1)
Package of 1000 pieces, code B1, is available only for products with TCR ± 25 ppm/K or ± 15 ppm/K, and with tolerance ± 0.25 % or ± 0.1 %.
www.vishay.com
32
For technical questions, contact:
melf@vishay.com
Document Number: 20004
Revision: 16-Sep-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
Thin Film Mini-MELF Resistors
Vishay Draloric

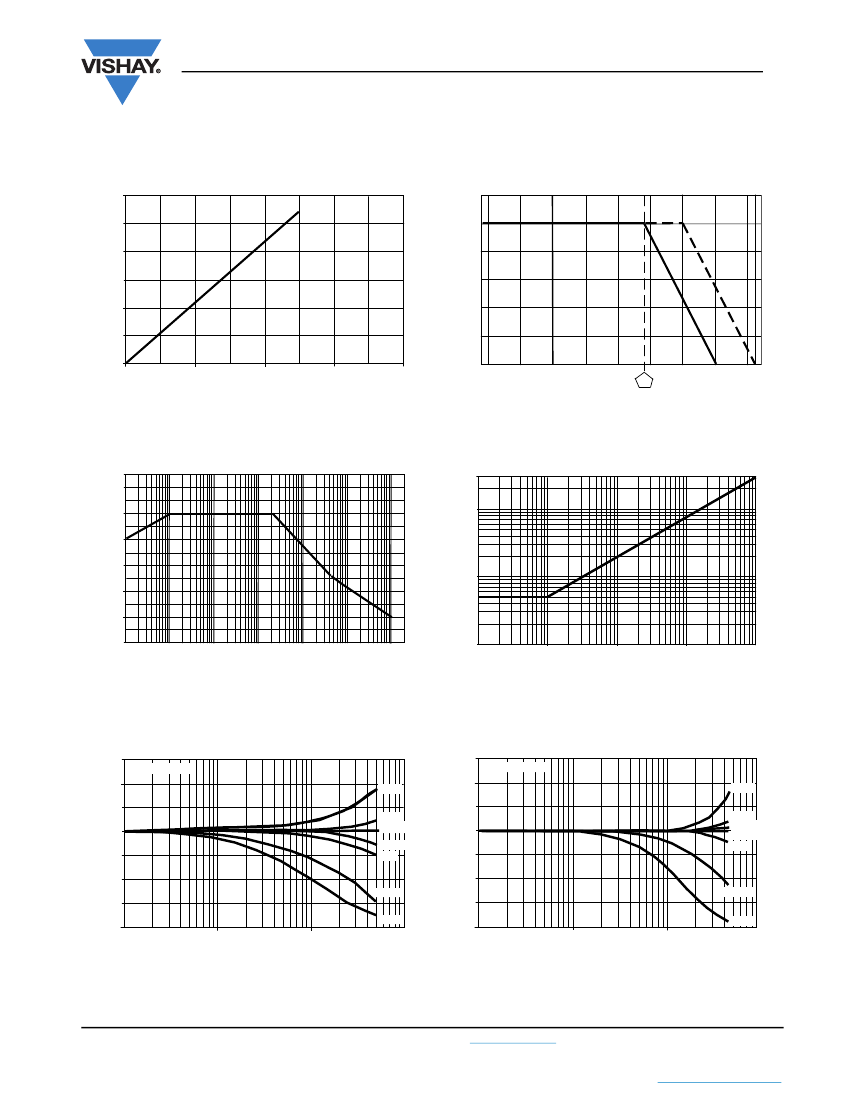

FUNCTIONAL PERFORMANCE
Temperature Rrise in °C
50
40
30
20
10
0
Function of Rated Power in
%
60
120
100
80
60
40
20
0
0
0.1
0.2
0.3
0.4
Power in W
- 55
- 25
0
25
50
75
100
125 155
70
Ambient Temperature in °C
Temperature Rise
Derating
Non-Linearity
A
3
in dB
120
110
100
90
80
70
60
10
Current Noise in µV/V
100
1K
10K
100K
1M
10M
3
2
1
0.5
0.3
1
0.
0.05
0.03
0.01
1K
5K 10K
50K 100K
500K 1M
5M 10M
Resistance Value in
Ω
Non-linearity
Current Noise
Resistance Value in
Ω
Phase Angle
γ
in °
|Z| -
R
0
in
%
60
SMM0204
40
20
0
- 20
- 40
4.7 kΩ
- 60
-
80
1
5
10
50
100
10 kΩ
500 1000
10
Ω
39
Ω
100
Ω
470
Ω
1 kΩ
60
40
20
0
SMM0204
10
Ω
39
Ω
100
Ω
470
Ω
1 kΩ
- 20
- 40
4.7 kΩ
- 60
-
80
10 kΩ
1
5
10
50
100
500 1000
Frequency f in MHz
Frequency f in MHz
HF - Performance
HF - Performance
Document Number: 20004
Revision: 16-Sep-11
For technical questions, contact:
melf@vishay.com
www.vishay.com
33
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
Vishay Draloric
FUNCTIONAL PERFORMANCE
3K
1K
Thin Film Mini-MELF Resistors
Test Voltage in V
1K
Test Voltage in V
100R
1K
10K
100K
3K
100
100
10
10R
10
10R
100R
1K
10K
100K
Single pulse high voltage overload capability
1.2/50 acc. EN 60115-1, 4.27
Resistance Value in
Ω
Resistance Value in
Ω
Single pulse high voltage overload capability
10/700 acc. EN 60115-1, 4.27
Pulse Load
P
peak
max. in W
SMM0204
Pulse Load
P
peak
max. in W
10
-1
1
10
1000
1000
SMM0204
100
100
10
Secondary conditions:
a)
P
≤
P
70
(permissible constant
1
power at
ϑ
u
≤
70 °C)
b)
ϑ
u
≤
70 °C
c)
U
max.
see diagram
(max. pulse
voltage)
0.1
-5
10
-3
10
10
-4
10
-2
10
1
Secondary conditions:
a)
P
0 (peak pulse, single pulse)
b)
ϑ
u
≤
70 °C
c)
U
max.
see diagram (max. pulse
voltage)
0.1
10
-3
10
-5
10
-4
10
-2
10
-1
1
10
Pulse Rating
P
≤
P
70
Square Pulse
t
i
in s
Pulse Rating
P
0
Square Pulse
t
i
in s
Pulse Voltage
Û
max.
in V
1000
SMM0204 -MS1
800
600
400
200
Secondary conditions:
a)
P
see diagram (pulse rating)
b)
ϑ
u
≤
70 °C
0
-5
10
10
-4
10
-3
10
-2
10
-1
1
10
Maximum Pulse Voltage
Square Pulse
t
i
in s
www.vishay.com
34
For technical questions, contact:
melf@vishay.com
Document Number: 20004
Revision: 16-Sep-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
