BAS16DW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS16DW

BAS16DW: DescriptionFast Switching Surface Mount Si-Planar Diodes; CategoryDiscrete semiconductor diode; File Size121KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric View All

BAS16DW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS16DW	-	-	View	Buy Now

BAS16DW Overview

Fast Switching Surface Mount Si-Planar Diodes

BAS16DW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
package instruction	R-PDSO-G6
Reach Compliance Code	compli
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SEPARATE, 3 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G6
Maximum non-repetitive peak forward current	2 A
Number of components	3
Phase	1
Number of terminals	6
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	75 V
Maximum reverse current	1 µA
Maximum reverse recovery time	0.004 µs
Reverse test voltage	75 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

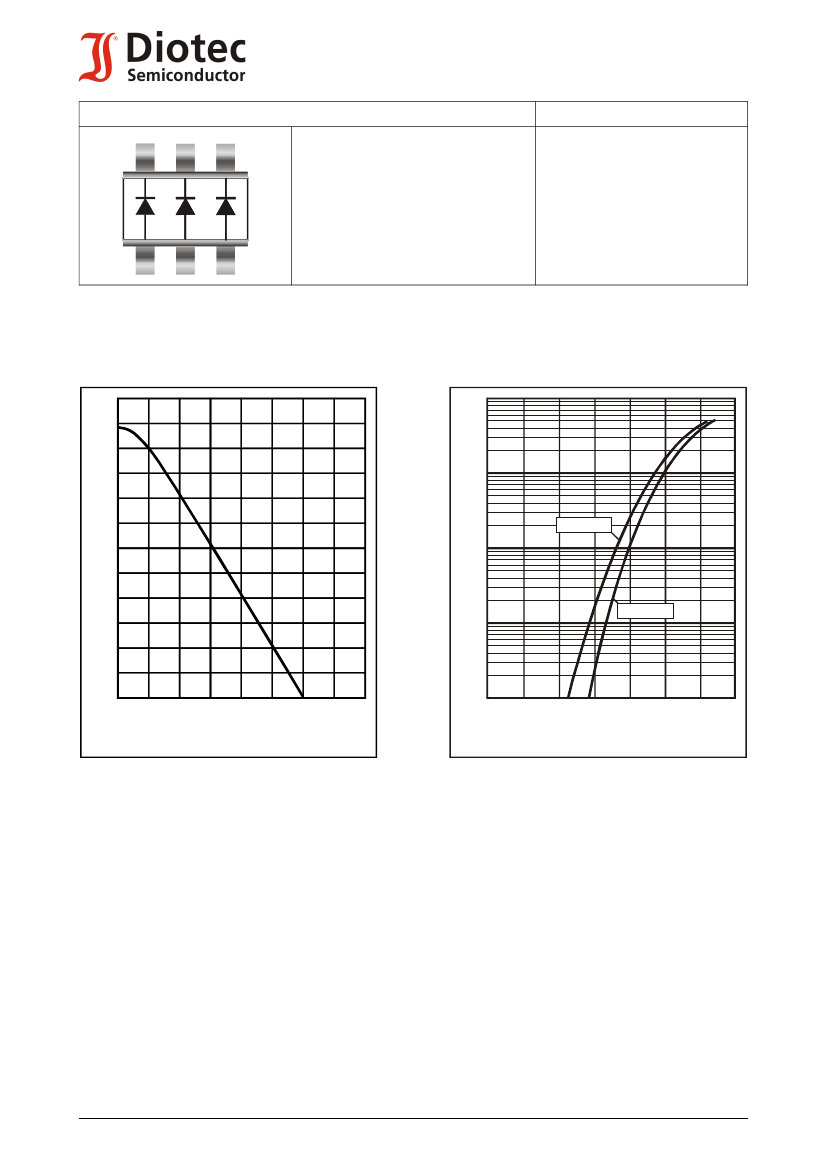

BAS16DW

Fast Switching Surface Mount Si-Planar Diodes

Schnelle Si-Planar-Dioden für die Oberflächenmontage

Version 2014-08-19

Power dissipation – Verlustleistung

±0.1

200 mW

100 V

SOT-363

0.01 g

2 x 0.65

0.9

±0.1

1.25

±0.1

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

Plastic case – Kunststoffgehäuse

Weight approx. – Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Standard packaging taped and reeled

Standard Lieferform gegurtet auf Rolle

Type

Code

2.4

Dimensions - Maße [mm]

Maximum ratings (T

= 25°C)

Power dissipation − Verlustleistung

Max. average forward current – Dauergrenzstrom (dc)

Non repetitive peak forward surge current

Stoßstrom-Grenzwert

Junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

≤ 1 s

≤ 1 µs

tot

FAV

FSM

RRM

2.1

±0.1

Grenzwerte (T

= 25°C)

BAS16DW

200 mW

)

200 mA

)

100 V

-55...+150°C

-55…+150°C

Repetitive peak reverse voltage – Periodische Spitzensperrspannung

Characteristics (T

= 25°C)

Forward voltage

)

Durchlass-Spannung

)

= 25°C

= 150°C

1 mA

10 mA

50 mA

150 mA

thA

Kennwerte (T

= 25°C)

< 715 mV

< 855 mV

< 1.0 V

< 1.25 V

< 1 µA

< 30 µA

< 50 µA

2 pF

< 4 ns

< 620 K/W

)

Leakage current

Sperrstrom

= 75 V

= 25 V

= 75 V

Max. junction capacitance – Max. Sperrschichtkapazität

= 0 V, f = 1 MHz

Reverse recovery time – Sperrverzug

= 10 mA über/through I

= 10 mA bis/to I

= 1 mA

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

Mounted on P.C. board with 3 mm

copper pad at each terminal

Montage auf Leiterplatte mit 3 mm

Kupferbelag (Lötpad) an jedem Anschluss

Tested with pulses t

= 300 µs, duty cycle ≤ 2% – Gemessen mit Impulsen t

= 300 µs, Schaltverhältnis ≤ 2%

http://www.diotec.com/

Recommended Resources
