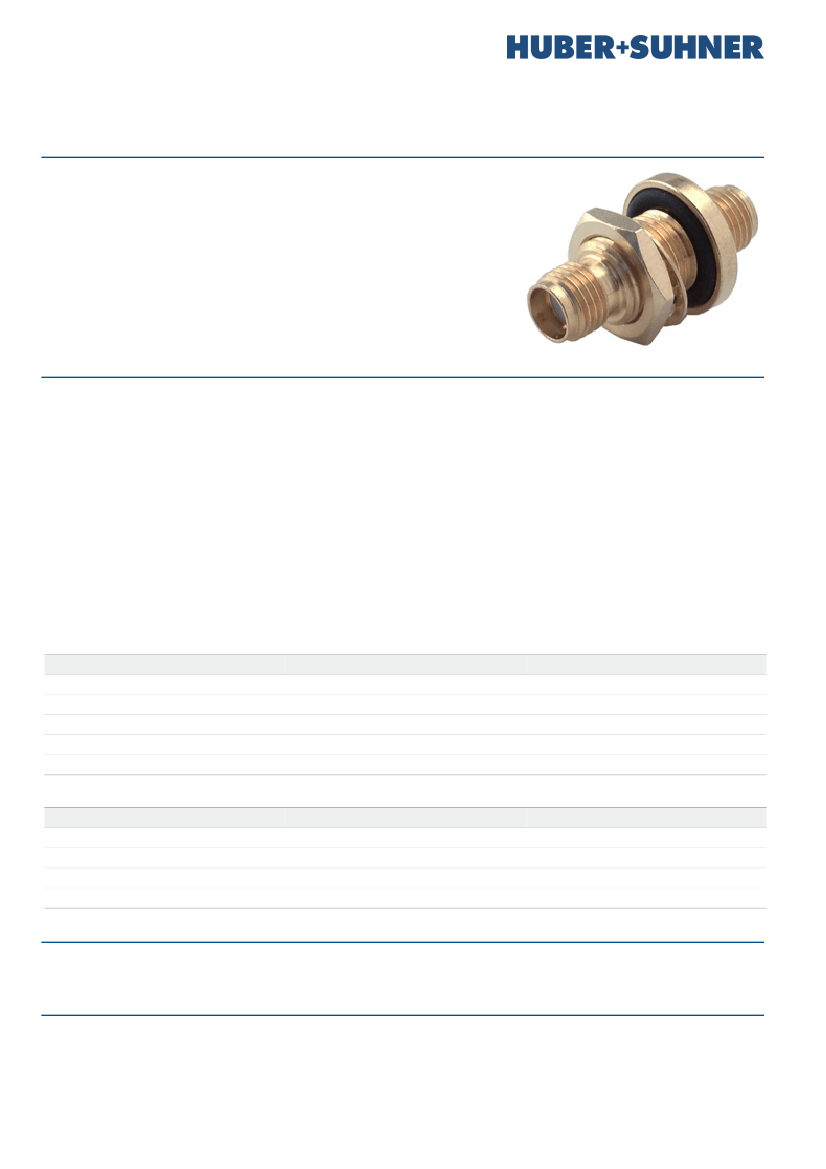

Data Sheet
Within Series Adaptor
34_SMA-50-0-8/111_N
Description
Bulkhead adaptor jack/jack
SMA jack (female) / SMA jack (female)
Interface standard
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Benefits
Hermetic sealed connector
Ingress protection according to IP68
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
18 GHz
0 to 3 GHz
26.4 dB
3 to 7 GHz
20.8 dB
7 to 18 GHz
15.6 dB
Mechanical Data
Chassis torque
Number of matings
Weight
2 Nm
500
0.007 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS - including
2015/863 and 2017/2102)
-40 °C to 165 °C
compliant
Material Data
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PTFE (Polytetrafluoroethylene)
EPDM (Ethylene propylene diene rubber)
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PTFE (Polytetrafluoroethylene)
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Related Documents
Outline drawing
Mounting hole
DOU-00303426
DOU-00008860
Ordering Information
Single package
34_SMA-50-0-8/111_NE
Document: DOC-0000722260 Q / PDO F / date of publication: 28.03.2020 03:15:42 / uncontrolled copy
Page 1/2
Data Sheet
Within Series Adaptor
34_SMA-50-0-8/111_N
Remarks
Hermetically sealed: leak rate <= 10^-7 Torr l/s (atm cc/s)
O-ring mount bulkhead feedthrough design, leak rate dependent on environmental condition, typ. <= 10^-6 Torr l/s
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000722260 Q / PDO F / date of publication: 28.03.2020 03:15:42 / uncontrolled copy
Page 2/2
