Spec Sheet
CERAMIC CAPACITORS
High Value Multilayer Ceramic Capacitors (High dielectric type)
TMK212ABJ225MD-T
(Old: TMK212BJ225MD-T)
Features
Item Summary
25V, X5R, 2.2μF, ±20%, 0805
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0805/2012
25V
2.2μF
±20%
100 MΩ・μF min.
5%MAX
X5R/B
-55 to +85℃/-25 to +85℃
±15/±10%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
2.0mm +0.15:-0.05
1.25mm +0.15:-0.05
0.85mm ±0.10
0.5mm ±0.25
2014.12.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○TMK212ABJ225MD
25V 2012 B/X5R 2.2uF +/-20% t=0.95mmMAX
25V 0805 B/X5R 2.2uF +/-20% t=0.037inchMAX
1000

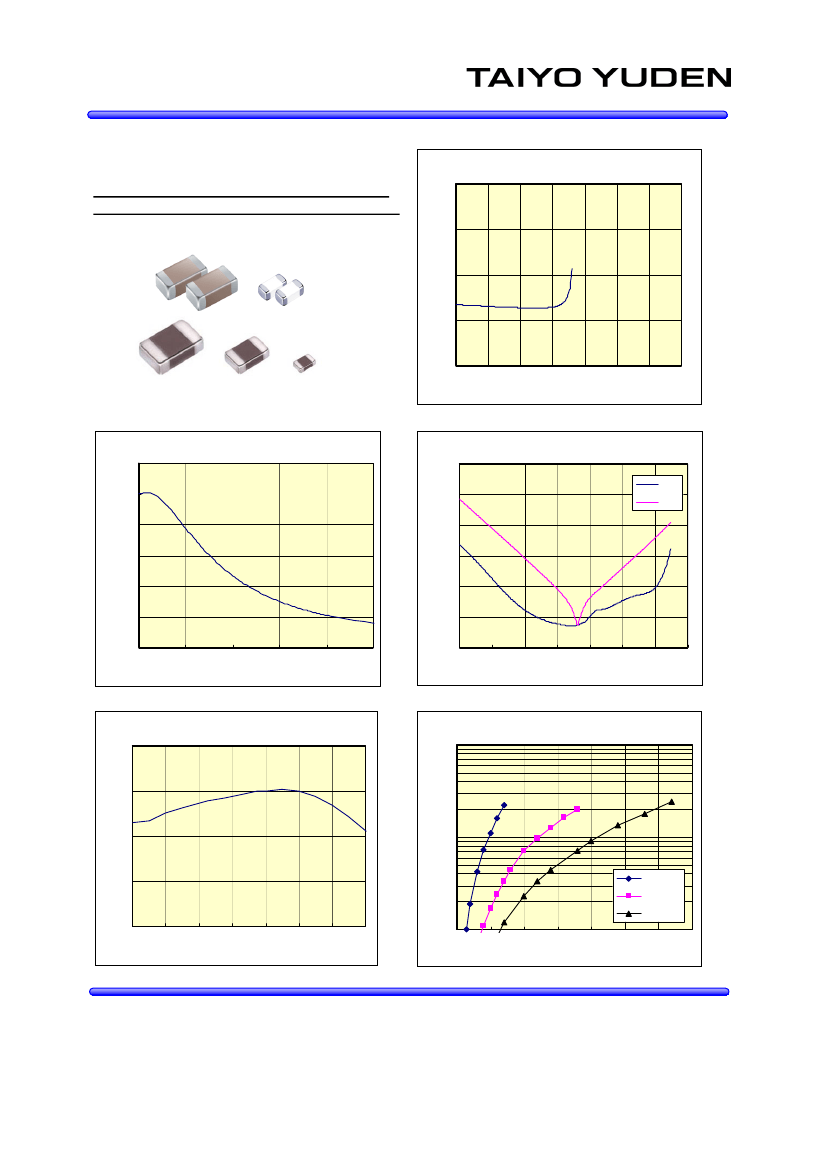

-Electrical Characteristics Data-
10HA08O
RoHS compliance product
TMK212ABJ225MD
Capacitance Freq.
Capacitance[uF] .
100
10
1
0.1
0.001
0.01
0.1
1
10
100
1000 10000
Frequency[MHz]
20
0
TMK212ABJ225MD
DC Bias Char.
1000
100
TMK212ABJ225MD
Impedance,ESR Freq.
ESR
Z
-40
-60
-80
-100
0
5
10
15
20
25
Z,ESR[OHM] .
-20
10
1
0.1
0.01
dC/C[%] .
0.001
0.001
0.01
0.1
1
10
100
1000 10000
DC Bias Voltage[V]
Frequency[MHz]
10
TMK212ABJ225MD
Temperature Characteristic
100
TMK212ABJ225MD
Ripple Current
-10
dTemp.[degreeC] .
0
dC/C[%]
10
-20
10KHz
100KHz
1M Hz
-30
-55
-35
-15
5
25
45
65
85
1
0
0.5
1
1.5
2
2.5
3
3.5
Temperature[degreeC]
Ripple Current[Arms]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
