SMP3013
.3125±0.0125
(7.938±.318)

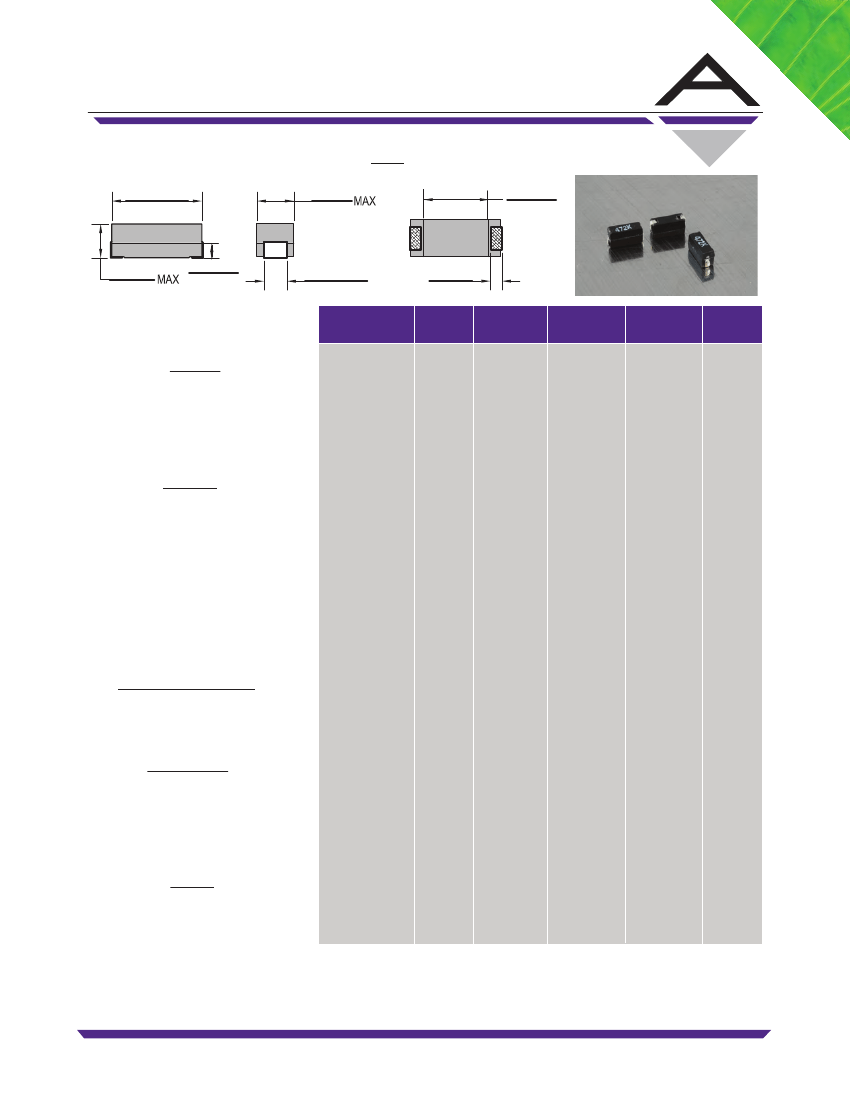

Surface Mount Power Chip Inductor
Dimensions:
.115±0.01
(2.92±.254)
Inches
(mm)
.190 Nom
(4.83 Nom)
.135±.010
(3.429±0.254)
0.070 Nom
(1.78 Nom)
.05±0.01
(1.27±.254)
Allied
Part
Number
.02 min.
(.508 min)
Inductance
(µh)
Tolerance
(%)
DCR
Max.
(Ω)
Current Rating
Max. mA DC
Incremental
Current
m’A DC
Features
• SMD Molded Construction
• Wide Inductance Range
• RoHS Compliant
• Tape and Reel for Auto Placement
Electrical
Inductance Range:
1.0µh ~ 4,700µh
Tolerance:
10% over entire range
Also available in tighter tolerances
Test Frequency:
1KHz over entire
Inductance Range
Operating Temp:
-55ºC to +125ºC
Current Rating:
Based on a 40º Temp Rise
IDC:
The current at which the inductance
will drop no more than 5% of its initial
value with no DC current.
Resistance to Solder Heat
Reflow 260ºC 10 seconds
Test Equipment
(L):
HP4263B
(IDC):
11021 Current Source & DCR Meter
(RDC):
HP4263B Current Source and
DCR Meter
Physical
Packaging:
1500 pieces/reel.
Marking:
EIA Inductance Code.
SMP3013-1R0K-RC
SMP3013-1R2K-RC
SMP3013-1R5K-RC
SMP3013-1R8K-RC
SMP3013-2R2K-RC
SMP3013-2R7K-RC
SMP3013-3R3K-RC
SMP3013-3R9K-RC
SMP3013-4R7K-RC
SMP3013-5R6K-RC
SMP3013-6R8K-RC
SMP3013-8R2K-RC
SMP3013-100K-RC
SMP3013-120K-RC
SMP3013-150K-RC
SMP3013-180K-RC
SMP3013-220K-RC
SMP3013-270K-RC
SMP3013-330K-RC
SMP3013-390K-RC
SMP3013-470K-RC
SMP3013-560K-RC
SMP3013-680K-RC
SMP3013-820K-RC
SMP3013-101K-RC
SMP3013-121K-RC
SMP3013-151K-RC
SMP3013-181K-RC
SMP3013-221K-RC
SMP3013-271K-RC
SMP3013-331K-RC
SMP3013-391K-RC
SMP3013-471K-RC
SMP3013-561K-RC
SMP3013-681K-RC
SMP3013-821K-RC
SMP3013-102K-RC
SMP3013-122K-RC
SMP3013-152K-RC
SMP3013-182K-RC
SMP3013-222K-RC
SMP3013-272K-RC
SMP3013-332K-RC
SMP3013-392K-RC
SMP3013-472K-RC
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
0.035
0.041
0.043
0.048
0.075
0.080
0.108
0.118
0.125
0.145
0.165
0.180
0.216
0.252
0.288
0.328
0.384
0.425
0.538
0.600
0.792
0.900
1.020
1.380
1.680
1.800
2.040
2.400
2.648
4.320
4.800
5.640
6.000
6.960
8.760
9.960
11.16
14.00
18.00
23.00
29.00
36.00
42.00
52.00
70.00
2780
2690
2030
1950
1690
1550
1460
1390
1330
1110
1080
1020
946
912
858
817
694
657
568
488
467
442
384
362
347
327
272
261
223
191
179
171
161
138
130
113
105
85
75
60
55
50
40
35
30
1526
1400
1291
1180
1104
936
840
732
720
612
600
600
564
516
432
420
348
324
270
270
246
216
174
150
132
111
106
89
72
60
57
48
41
35
30
26
22
20
18
16
14
12
10
8
5
