SMTC3726-3R8M-RC

Description
SMD TOROIDAL CHOKES
CategoryPassive components    inductor
File Size311KB,1 Pages
ManufacturerALLIED [Allied Electronics]
Environmental Compliance
Download Datasheet Parametric Compare View All

SMTC3726-3R8M-RC Overview

SMD TOROIDAL CHOKES

SMTC3726-3R8M-RC Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerALLIED [Allied Electronics]
package instruction5756
Reach Compliance Codecompli
ECCN codeEAR99
uppercase and lowercase codes5756
DC Resistance0.0083 Ω
Nominal inductance(L)3.8 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature130 °C
Minimum operating temperature-40 °C
Maximum rated current8 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
RoHS
SMD TOROIDAL CHOKES
SMTC3726
SMD toroid chokes for lan and telecom applications
High impedance to minimize common mode noise
Excellent EMI performance
Operating temperature range -40ºC to 130ºC
SMTC3726-3R8M-RC
SMTC3726-7R5M-RC
SMTC3726-21R9M-RC
SMTC3726-730M-RC
SMTC3726-291M-RC
SMTC3726-671M-RC
3.8uh ± 20%
7.5uh ± 20%
21.9uh ± 20%
73uh ± 20%
292uh ± 20%
672uh ± 20%
2.5uh ± 20%
5.1uh ± 20%
16.2uh ± 20%
58.1uh ± 20%
192uh ± 20%
383uh ± 20%
8.00
5.40
2.70
1.30
0.90
0.72
8.3
17.7
72.0
290
560
862

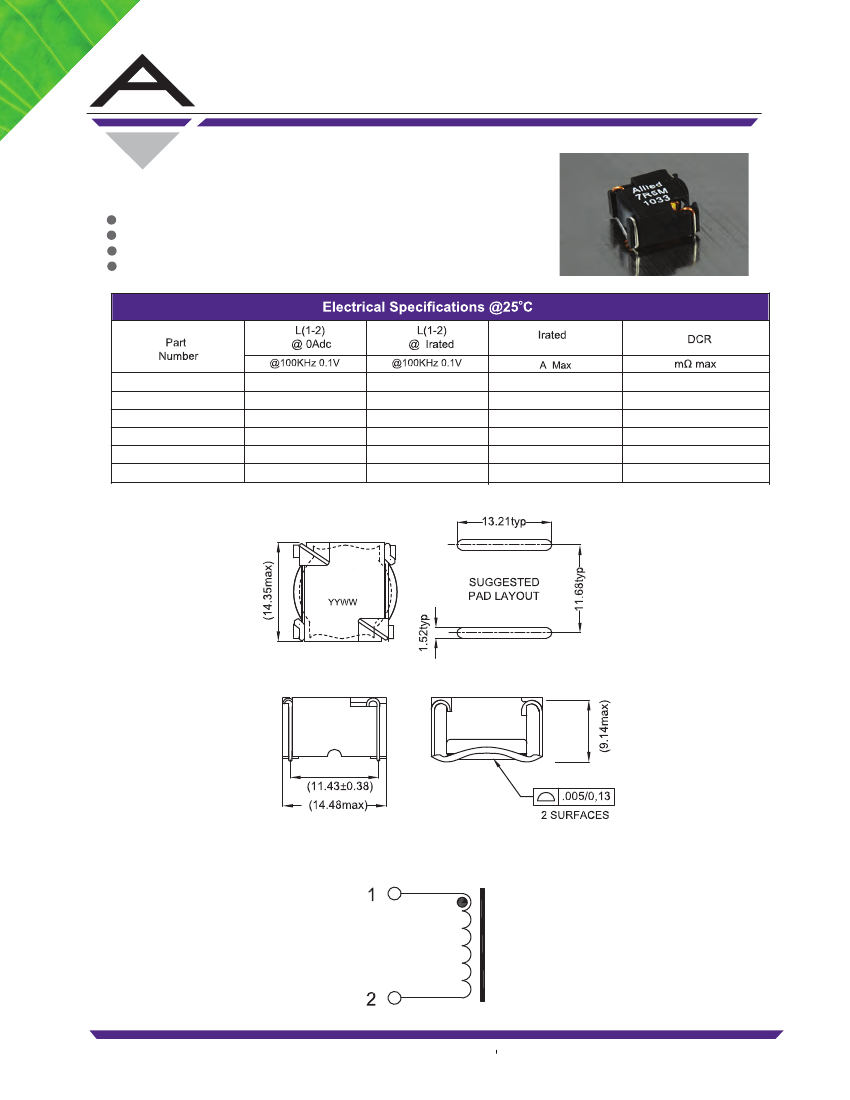

All specifications subject to change without notice.
MECHANICAL
ALLIED
7R5M
Unless otherwise specified all tolerances are: ±0.25 in mm
SCHEMATICS
949-356-1780
ALLIED COMPONENTS INTERNATIONAL
REVISED 02/27/2014
15
www.alliedcomponents.com
