VTCB210HT-391L-RC: DescriptionToroid Chokes High Temp on Base; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

VTCB210HT-391L-RC Overview

Toroid Chokes High Temp on Base

VTCB210HT-391L-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.27 Ω
Nominal inductance(L)	390 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	4
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Maximum rated current	2.1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	15%

Preview

Download Datasheet

View All

RoHS

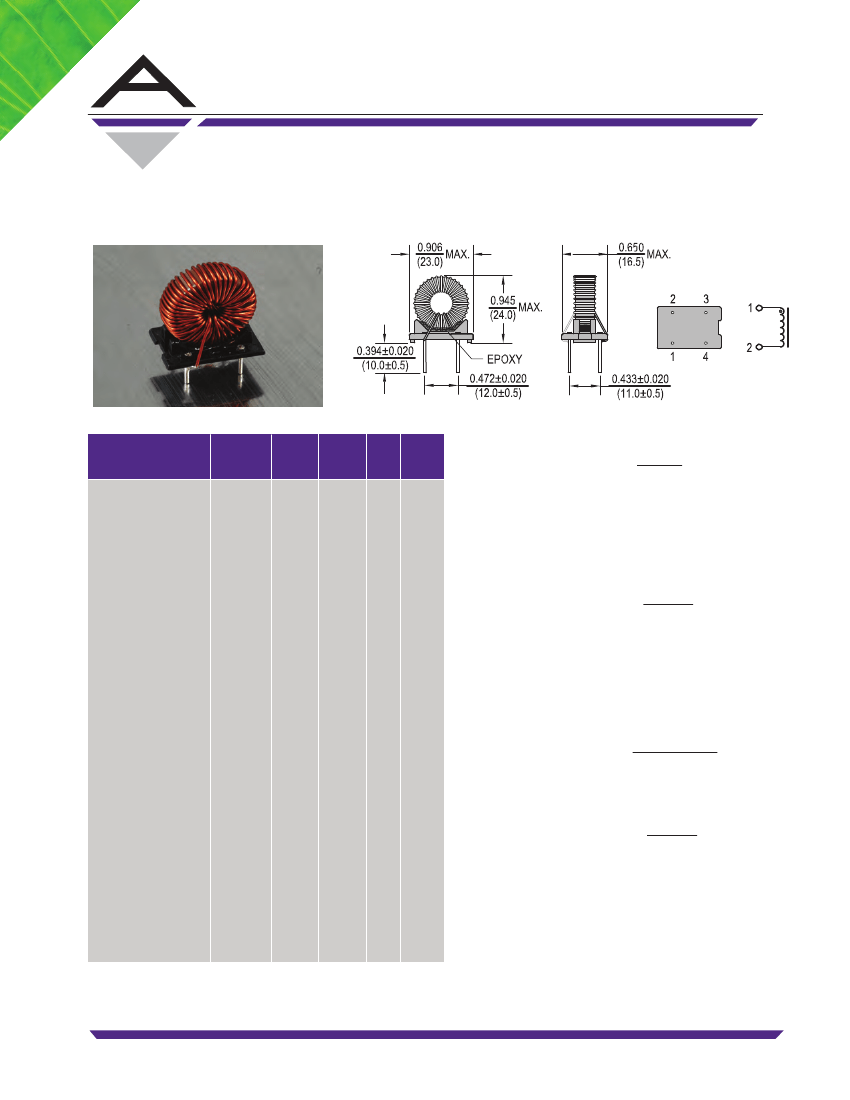

Toroid Chokes High Temp on Base

VTCB210HT

Allied

Part

Number

L (µH)

@ 1KHZ

Tolerance

%

L(µH)

± 15%

@ I rated

IDC

(A)

DCR

(Ω)

MAX

Features

•

High Temperature rating up to 200ºC

Low Magnetic Radiation

Low Core Loss

High current capacity up to 21A

Cross to Miller / Bourns 2100HT series with base

VTCB210HT-1R0L-RC

VTCB210HT-1R5L-RC

VTCB210HT-2R2L-RC

VTCB210HT-2R7L-RC

VTCB210HT-3R3L-RC

VTCB210HT-3R9L-RC

VTCB210HT-4R7L-RC

VTCB210HT-5R6L-RC

VTCB210HT-6R8L-RC

VTCB210HT-8R2L-RC

VTCB210HT-100L-RC

VTCB210HT-120L-RC

VTCB210HT-150L-RC

VTCB210HT-180L-RC

VTCB210HT-220L-RC

VTCB210HT-270L-RC

VTCB210HT-330L-RC

VTCB210HT-390L-RC

VTCB210HT-470L-RC

VTCB210HT-560L-RC

VTCB210HT-680L-RC

VTCB210HT-820L-RC

VTCB210HT-101L-RC

VTCB210HT-121L-RC

VTCB210HT-151L-RC

VTCB210HT-181L-RC

VTCB210HT-221L-RC

VTCB210HT-271L-RC

VTCB210HT-331L-RC

VTCB210HT-391L-RC

VTCB210HT-471L-RC

VTCB210HT-561L-RC

VTCB210HT-681L-RC

VTCB210HT-821L-RC

VTCB210HT-102L-RC

1.0

1.5

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

15

0.8

1.2

1.8

2.1

2.6

3.0

3.5

4.1

4.9

5.9

7.6

9.0

11.0

13.0

16.6

20.1

24.0

28.0

33.1

38.5

46.0

54.0

64.5

84.4

102.8

120.7

144.2

172.6

206.0

266.7

314.4

366.9

435.1

512.0

608.2

21.7

19.8

18.3

17.1

16.1

15.3

14.9

14.3

13.7

13.2

9.9

9.6

9.1

8.6

6.7

6.4

6.1

5.9

5.6

5.3

5.1

4.8

4.6

3.5

3.3

3.1

3.0

2.8

2.7

2.1

2.0

1.9

1.8

1.7

1.6

.003

.004

.005

.006

.007

.012

.013

.014

.016

.026

.028

.031

.033

.036

.040

.044

.049

.053

.094

.110

.120

.130

.140

.160

.270

.290

.320

.350

.390

.430

Electrical

Inductance Range:

1.0µh to 1000µh

Additional values available

Tolerance:

15% over entire range

Test Frequency:

1KHz

Operating Temp:

-55ºC ~ +200ºC

Temp Rise:

∆

T=50ºC Typical at rated IDC

Test Equipment

(L):

100 LCR meter or equivalent

DCR:

Chen Hwa 502

Physical

Packaging:

Boxed

Marking:

EIA Inductance Code

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 7/19/010

www.alliedcomponents.com
