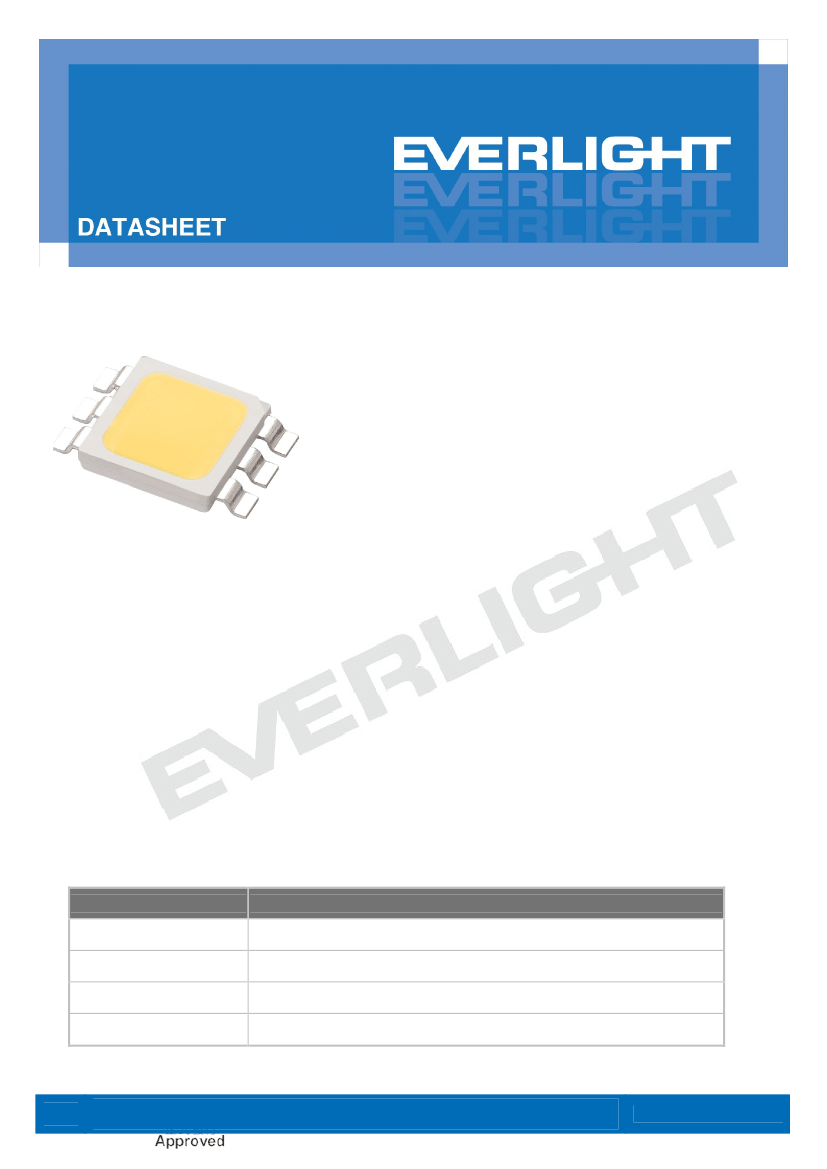

A22
1W/5S Series
Features
LM-80 Certified
Multi-Chip PLCC Solution
Moisture Sensitivity Level: 3
Main Parameters: Luminous Flux,
Forward Voltage , Chromaticity and
Color Rendering Index
RoHS compliant
Typical viewing angle: 120°
Applications
High Wattage Replacement Bulb
Down Light
Recessed Can Light
Low/High Bay Light
Materials
Items
Encapsulating Resin
Electrodes
Die attach
Chip
Silicone resin
Ag plating copper alloy
Silver paste
InGaN
Description
Revision
Copyright ©
:7
1
LifecyclePhase:
2011, Everlight All Rights Reserved. Release Date: Aug.15.2013. Issue No: DHE-0001811
Release Date:2013-08-28
13:15:43.0
www.everlight.com
Expired Period: Forever
DATASHEET
EHP- A22
1W/5S Series
Product Nomenclature
The product name is designated as below:
EHP-A22/ ABCDE –FGH/IJKL/MNO/PQ
Designation:
AB = color
[1]
CDE = internal coding
FGH = power consumption
[2]
IJKL = color range or CCT Range
MNO = luminous flux bin
PQ = packaging type
[3]
Notes
1. Table of color offerings:
Symbol
Color
GT
Cool-White
KT
Cool-White
Warm-White
LM
Neutral-White
Warm White
KM
Neutral-White
2. Table of power consumption :
Symbol
Description
P01
1W
3. Table of packaging types:
Symbol Description
TR
Tape and Reel
CCT range
4745~7050K
4745~7050K
2580~3710K
3710K-4745K
2580~3710K
3710K-4745K
Color Rendering Index
>65
>80
>70
>80
Revision
Copyright ©
:7
2
LifecyclePhase:
2011, Everlight All Rights Reserved. Release Date: Aug.15.2013. Issue
Release Date:2013-08-28
No: DHE-0001811
13:15:43.0
www.everlight.com
Expired Period: Forever
DATASHEET
EHP- A22
1W/5S Series
Absolute Maximum Ratings
Parameter
Max. DC Forward Current (mA)
Max. Peak Pulse Current (mA)
Thermal Resistance
Max. Junction Temperature
Operating Temperature
Storage Temperature
Max. Solder Pad Temperature
Notes:
1.
tp
≦100ms,
Duty cycle = 25%
Symbol
I
F
I
Pulse
R
th
T
J
T
Opr
T
Stg
T
Sol
Ratings
150
200
[1]
9
125
-40 ~ +85
-40 ~ +100
260
Unit
mA
mA
°C/W
°C
°C
°C
°C
Revision
Copyright ©
:7
3
LifecyclePhase:
2011, Everlight All Rights Reserved. Release Date: Aug.15.2013. Issue
Release Date:2013-08-28
No: DHE-0001811
13:15:43.0
www.everlight.com
Expired Period: Forever
DATASHEET
EHP- A22
1W/5S Series

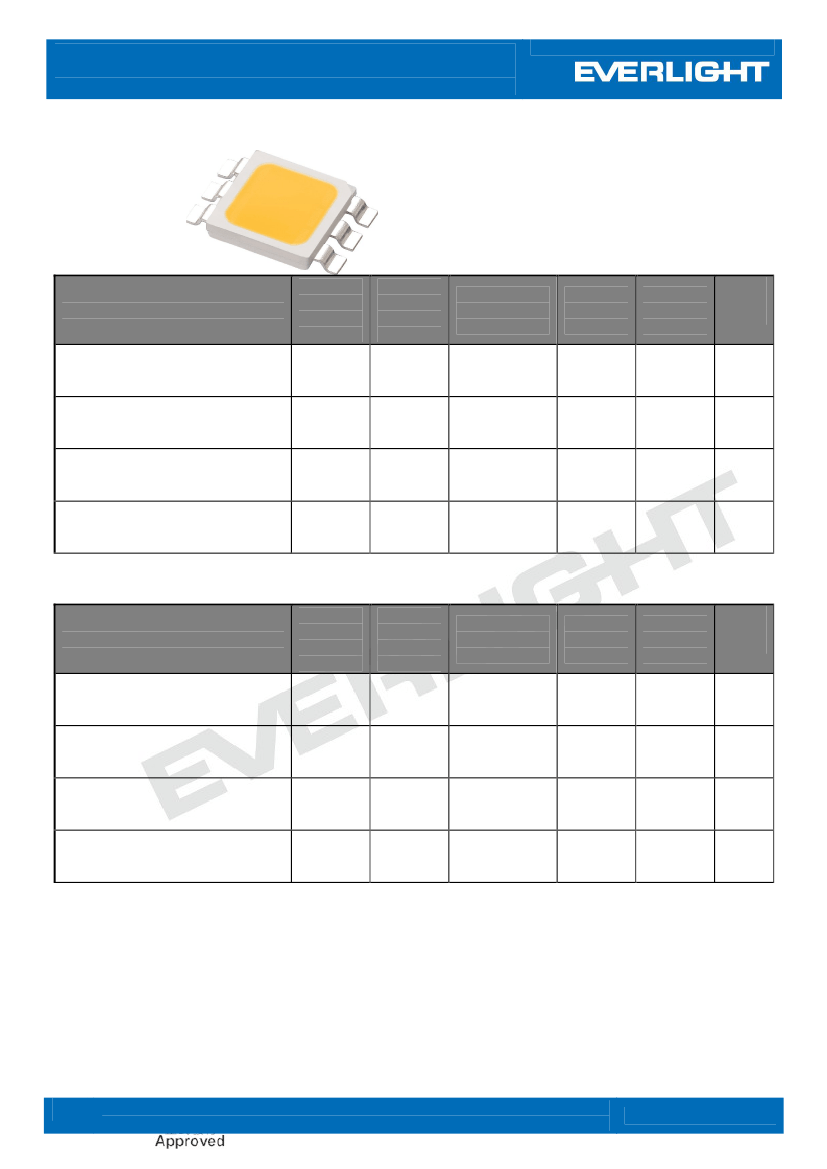

PN of the A22 series: Warm White LEDs
Order Code of A22
Min.
Luminous
Flux
(lm)
100
Typ.
Luminous
Flux
(lm)
116
CCT (K)
Wavelength
(nm)
35K-1,35K-2
35K-3,35K-4
30K-1,30K-2
30K-3,30K-4
30K-1,30K-2
30K-3,30K-4
27K-1,27K-2
27K-3,27K-4
Forward
Voltage
(V)
13.5-16.5
Forward
Current
(mA)
80
CRI
(Min.)
EHP-A22/KM35H-P01/35K/ K51/TR
80
EHP-A22/KM35H-P01/30K/K51/TR
100
114
13.5-16.5
80
80
EHP-A22/KM35H-P01/30K/K52/TR
110
121
13.5-16.5
80
80
EHP-A22/KM35H-P01/27K/K43/TR
95
107
13.5-16.5
80
80
Order Code of A22
Min.
Luminous
Flux
(lm)
180
Typ.
Luminous
Flux
(lm)
198
CCT (K)
Wavelength
(nm)
35K-1,35K-2
35K-3,35K-4
30K-1,30K-2
30K-3,30K-4
30K-1,30K-2
30K-3,30K-4
27K-1,27K-2
27K-3,27K-4
Forward
Voltage
(V)
14.7-17.7
Forward
Current
(mA)
150
CRI
(Min.)
EHP-A22/KM35H-P01/35K/ K51/TR
80
EHP-A22/KM35H-P01/30K/K51/TR
180
197
14.7-17.7
150
80
EHP-A22/KM35H-P01/30K/K52/TR
180
210
14.7-17.7
150
80
EHP-A22/KM35H-P01/27K/K43/TR
160
181
14.7-17.7
150
80
Notes:
1.
2.
3.
4.
5.
6.
Luminous flux measurement tolerance: ±10%.
The data of luminous flux measured at thermal pad=25°C
Typical luminous flux or light output performance is operated within the condition guided by this datasheet
The CRI value is based on the Everlight testing instrument.
CRI measurement tolerance: ±2
Luminous Flux are reference only at IF=150 mA operation.
Revision
Copyright ©
:7
4
LifecyclePhase:
2011, Everlight All Rights Reserved. Release Date: Aug.15.2013. Issue
Release Date:2013-08-28
No: DHE-0001811
13:15:43.0
www.everlight.com
Expired Period: Forever
DATASHEET
EHP- A22
1W/5S Series

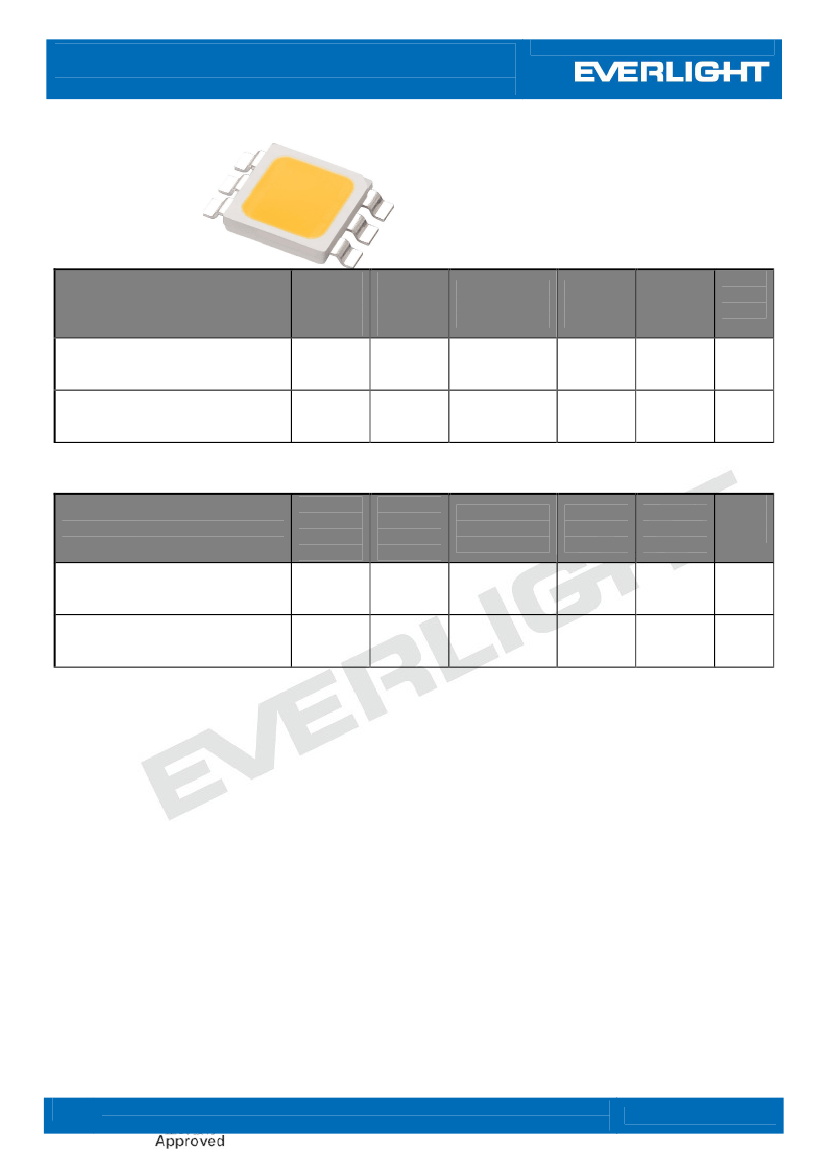

PN of the A22 series: Neutral White LEDs
Order Code of A22
Min.
Luminous
Flux
(lm)
100
Typ.
Luminous
Flux
(lm)
117
CCT (K)
Wavelength
(nm)
45K-1,45K-2
45K-3,45K-4
40K-1,40K-2
40K-3,40K-4
Forward
Voltage
(V)
13.5-16.5
Forward
Current
(mA)
80
CRI
(Min.)
EHP-A22/KM35H-P01/45K/K51/TR
80
EHP-A22/KM35H-P01/40K/K51/TR
100
116
13.5-16.5
80
80
Order Code of A22
Min.
Luminous
Flux
(lm)
180
Typ.
Luminous
Flux
(lm)
205
CCT (K)
Wavelength
(nm)
45K-1,45K-2
45K-3,45K-4
40K-1,40K-2
40K-3,40K-4
Forward
Voltage
(V)
14.7-17.7
Forward
Current
(mA)
150
CRI
(Min.)
EHP-A22/KM35H-P01/45K/K51/TR
80
EHP-A22/KM35H-P01/40K/K51/TR
180
199
14.7-17.7
150
80
Notes:
1.
2.
3.
4.
5.
6.
Luminous flux measurement tolerance: ±10%.
The data of luminous flux measured at thermal pad=25°C
Typical luminous flux or light output performance is operated within the condition guided by this datasheet
The CRI value is based on the Everlight testing instrument.
CRI measurement tolerance: ±2
Luminous Flux are reference only at IF=150 mA operation.
Revision
Copyright ©
:7
5
LifecyclePhase:
2011, Everlight All Rights Reserved. Release Date: Aug.15.2013. Issue
Release Date:2013-08-28
No: DHE-0001811
13:15:43.0
www.everlight.com
Expired Period: Forever
