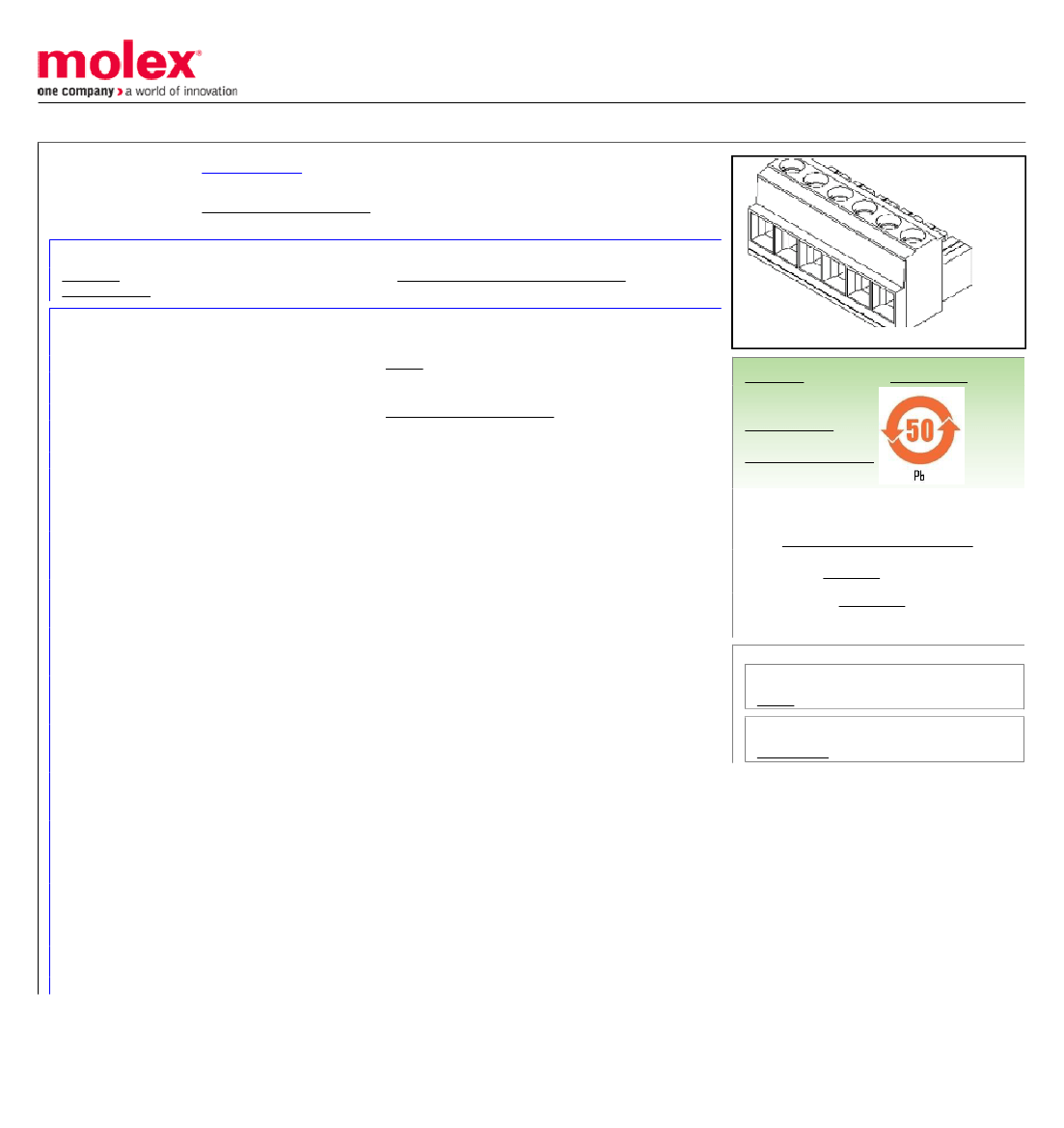

420510

Description
12.00mm Pitch Beau EuroMax Horizontal Plug, 10 Circuits
File Size33KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

420510 Overview

12.00mm Pitch Beau EuroMax Horizontal Plug, 10 Circuits

This document was generated on 10/27/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
39421-0010
Active
Eurostyle™ Terminal Blocks
12.00mm Pitch Beau™ EuroMax™ Horizontal Plug, 10 Circuits
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
UPC
Terminal Blocks
39421
N/A
Plug
Eurostyle™ Terminal Blocks
EuroMax™Pluggable
Euro Block
822348530342
Series
image - Reference only
EU RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
10
Black
180° Angle
Yes
Brass
Tin
Tin
Polyester
227.270/g
1
Horizontal
N/A
No
12.00mm
12.00mm
3.810µm
3.810µm
Yes
No
130°C
10, 12, 14, 3, 4, 6, 8
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39421Series
Mates With
39425-0010 Horizontal PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
85A
600V
Material Info
Old Part Number
420510
Reference - Drawing Numbers
Sales Drawing
SD-39421-001
This document was generated on 10/27/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
