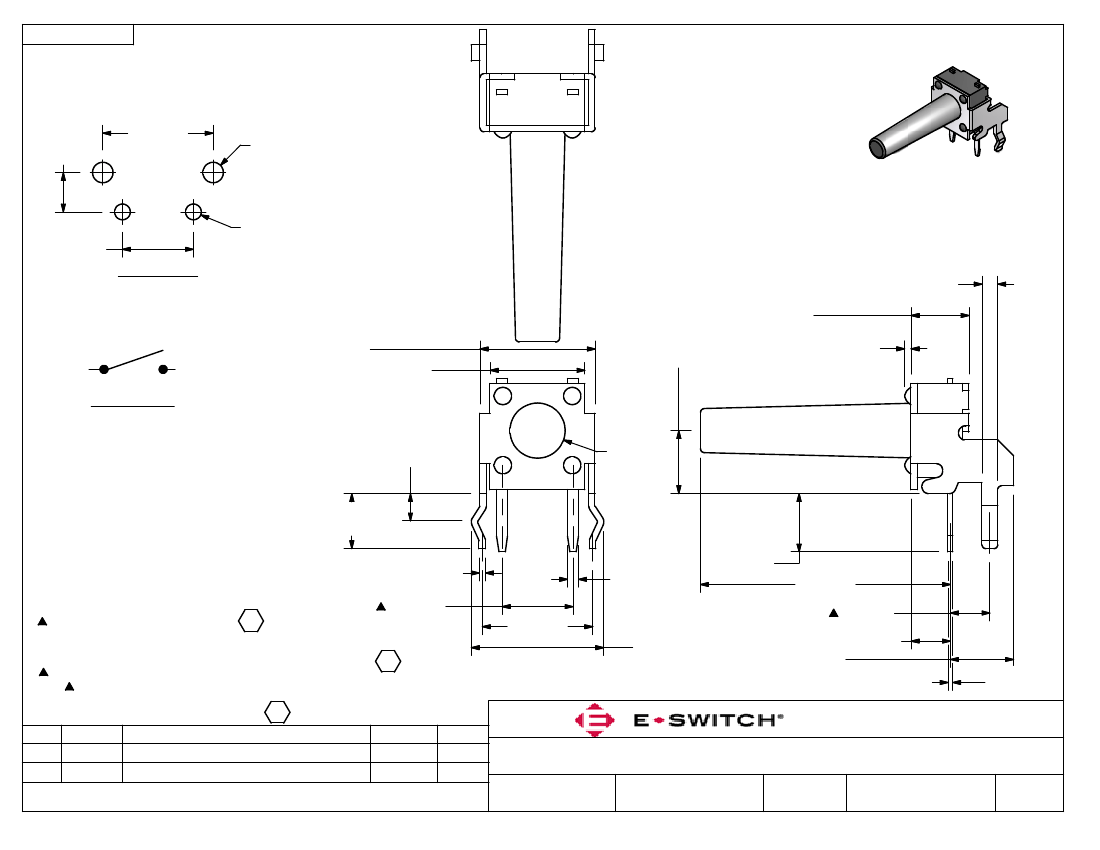

SHEET 1 OF 1
ISOMETRIC
7.00
[.276 in]
n
1.30 (2)
[.051 in]
2.50
[.098 in]
4.50
[.177 in]
PC MOUNTING
n
1.00 (2)
[.039 in]
1.00
[.039 in]
3.70
[.146 in]
7.30
[.287 in]
4.00
[.157 in]
.40 MAX.
[.016 in]
1
CIRCUIT: SPST
2
6.00
[.236 in]
1.73
[.068 in]
n
3.50
[.138 in]
3.50
[.138 in]
NOTES:
1. ALL DIMENSIONS IN MM
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERM. NOS. FOR REFERENCE ONLY.
4. RATING: 12VDC, 50mA
5. OPERATING FORCE: 65 ± 20gf B
6. TRAVEL: 0.25 +0.2/-0.1 mm
7. CONTACT RESISTANCE: 50 MILLI OHMS MAX. (INITIAL)
8. MECHANICAL/ELECTRICAL LIFE 5,000,000 CYCLES MIN.
9. CONTACT MATERIAL: SILVER
10. DENOTES CRITICAL PARAMETER
11. 2002/95/EC (ROHS) COMPLIANT
12. PACKAGING: 750 PIECES/POLY BAG B
B
A
REV
20957
18729
PCR NO
CORRECT FORCE, LIFE AND PACKAGING
RELEASED FOR PRODUCTION
DESCRIPTION
1
2
.40
[.016 in]
4.50
[.177 in]
.70
[.028 in]
7.00
[.276 in]
3.70
[.146 in]
15.85
[.624 in]
2.50
[.098 in]
B
8.40
`
.30
[.331
`
.012
in]
4.00
[.157 in]
2.50
[.098 in]
.30
[.012 in]
1/8/13
12/17/09
DATE
EBP
BLR
BY
TITLE
LL1105QF065Q
4:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
12/17/2009
BLR
P010252
B
