PA2002NL: DescriptionSMT Gate Drive Transformers; File Size662KB，3 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Compare View All

PA2002NL Overview

SMT Gate Drive Transformers

Preview

Download Datasheet

View All

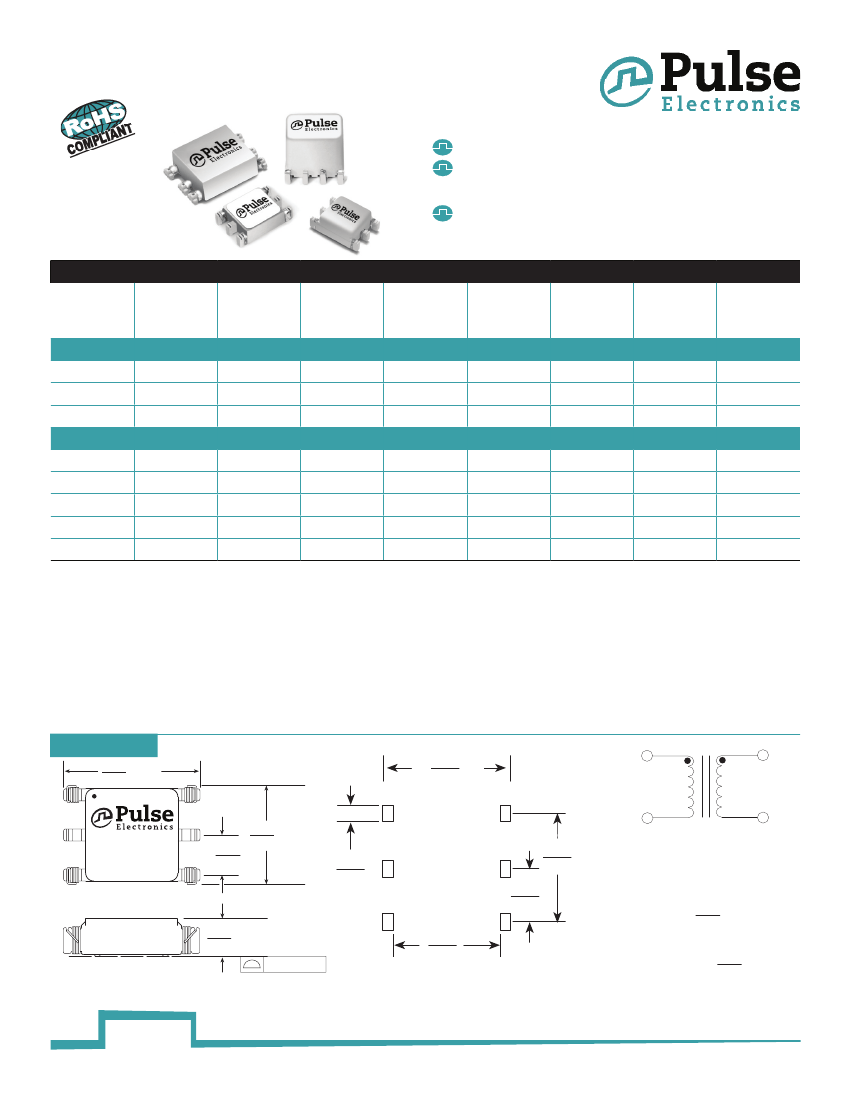

SMT Gate Drive Transformers

PA200xNL Basic and Operational Insulation

Higher Volt-µsec capability

Basic insulation (1.4mm creepage/clearance)

and operational available

Operating frequency: 50kHz and up

Electrical Specifications @ 25°C - Operating Temperature -40°C to 130°C

Part

Number

1, 2

Turns

Ratio

1:1

1:1:1

1:1

2:1:1

2.5:1:1

Pri-Sec

Insulation

(VRMS)

1500

MAX

V*µsec

Primary

Inductance

(µH MIN)

403

1800

437

840

864

1490

1425

1486

Leakage

Inductance

(µH MAX)

0.46

0.60

0.85

0.75

0.80

DCR

Primary

(Ω MAX)

0.60

1.60

0.85

1.05

0.82

1.15

DCR

Secondary

(Ω MAX)

0.60

1.60

0.85

1.05

0.82

1.15

0.575

0.425

Package Size

(L x W x H)

(mm MAX)

8.6 x 6.7 x 2.5

9.0 x 8.6 x 7.6

8.6 x 6.7 x 3.6

11.8 x 8.8 x 4.0

9.0 x 8.6 x 7.6

OPERATIONAL INSULATION

PA2001NL

PA2002NL

PA2004NL

PA2005NL

PA2006NL

PA2007NL

PA2008NL

PA2009NL

BASIC INSULATION (1.4MM CREEPAGE AND CLEARANCE BETWEEN PRIMARY AND SECONDARY)

Notes:

1. The maximum volt-µsec limits the peak flux density to 2800 Gauss when used in

a unipolar drive application. For bi-polar drive applications, a maximum volt-

µsec

of two times this rating is acceptable (i.e. 2* (volt*µsec rating) Volt*µsec =

(voltage applied to the primary) * dutycycle / Frequency = V * alpha / Freq_ Hz =

V *

µsec

2. Leakage inductance is measured at primary terminals with all secondaries shorted.

3. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part

number (i.e. PA2002NL becomes PA2002NLT). Pulse complies to industry standard

tape and reel specification EIA481.

4. The “NL” suffix indicates an RoHS-compliant part number.

5. The temperature of the component (ambient plus temperature rise) must be within

the stated operating temperature range.

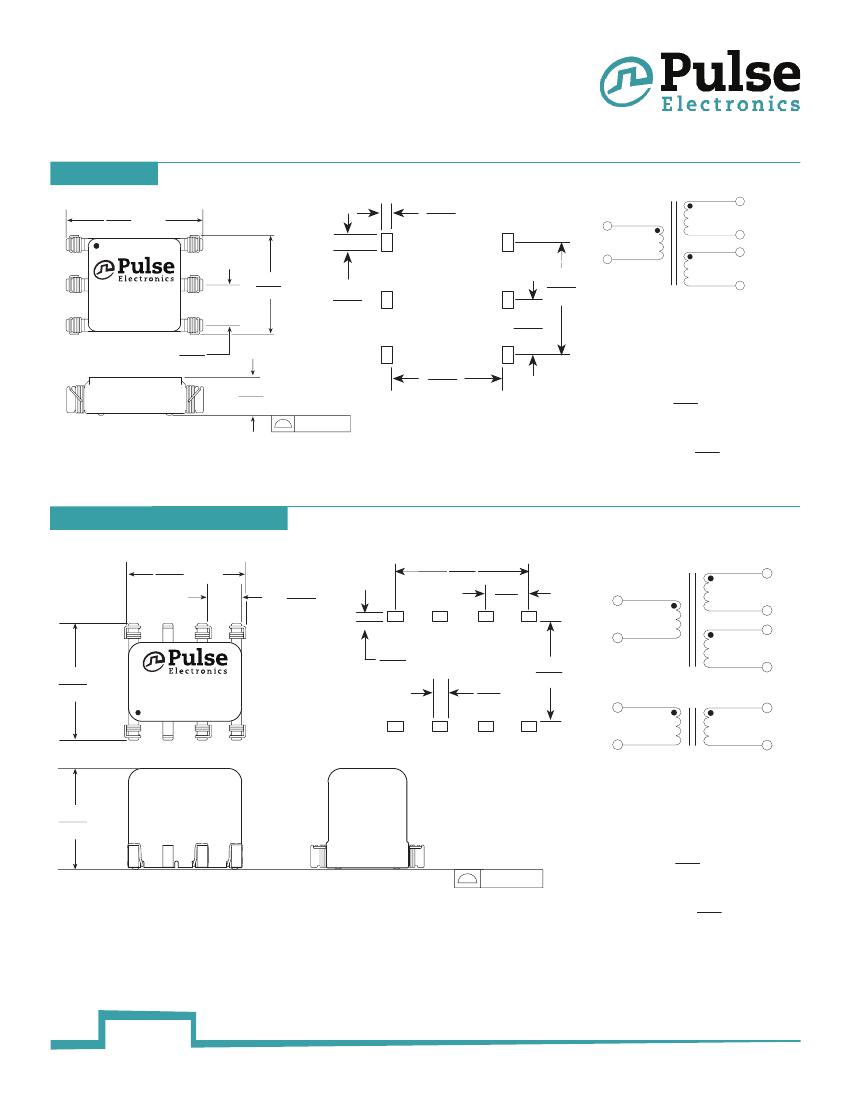

Mechanical

PA2001NL

.340

MAX

8,64

0.365

9,27

Schematic

Weight

.........................0.28 grams

Tape & Reel

.....................1500/reel

Tube

...................................60/tube

Dimensions:

Inches

Unless otherwise specified,

all tolerances are

.010

0,25

Date Code

Country of Origin

PA2001NL

.100

2,54

.265

MAX

6,73

0.07

1,78

.100

2,54

.200

5,08

.098

MAX

2,49

.005/0,13

.240

6,1

4 SURFACES

USA 858 674 8100

Germany 49 7032 7806 0

Singapore 65 6287 8998

SUGGESTED PAD LAYOUT

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P663.G (04/14)

pulseelectronics.com
