ZMM5233B-13: Description6 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-213AA; Categorysemiconductor Discrete semiconductor; File Size103KB，3 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

ZMM5233B-13 Overview

6 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-213AA

ZMM5233B-13 Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Rated working voltage	6 V
Processing package description	ROHS COMPLIANT, HERMETIC SEALED, 玻璃 PACKAGE-2
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	round
Package Size	LONG FORM
surface mount	Yes
Terminal form	WRAP AROUND
terminal coating	tin silver
Terminal location	END
Packaging Materials	Glass
Craftsmanship	ZENER
structure	single
Shell connection	isolation
Diode component materials	silicon
Maximum power consumption limit	0.5000 W
polarity	unidirectional
Diode type	Zener diode
Working test current	20 mA
Maximum total reference voltage	5 %

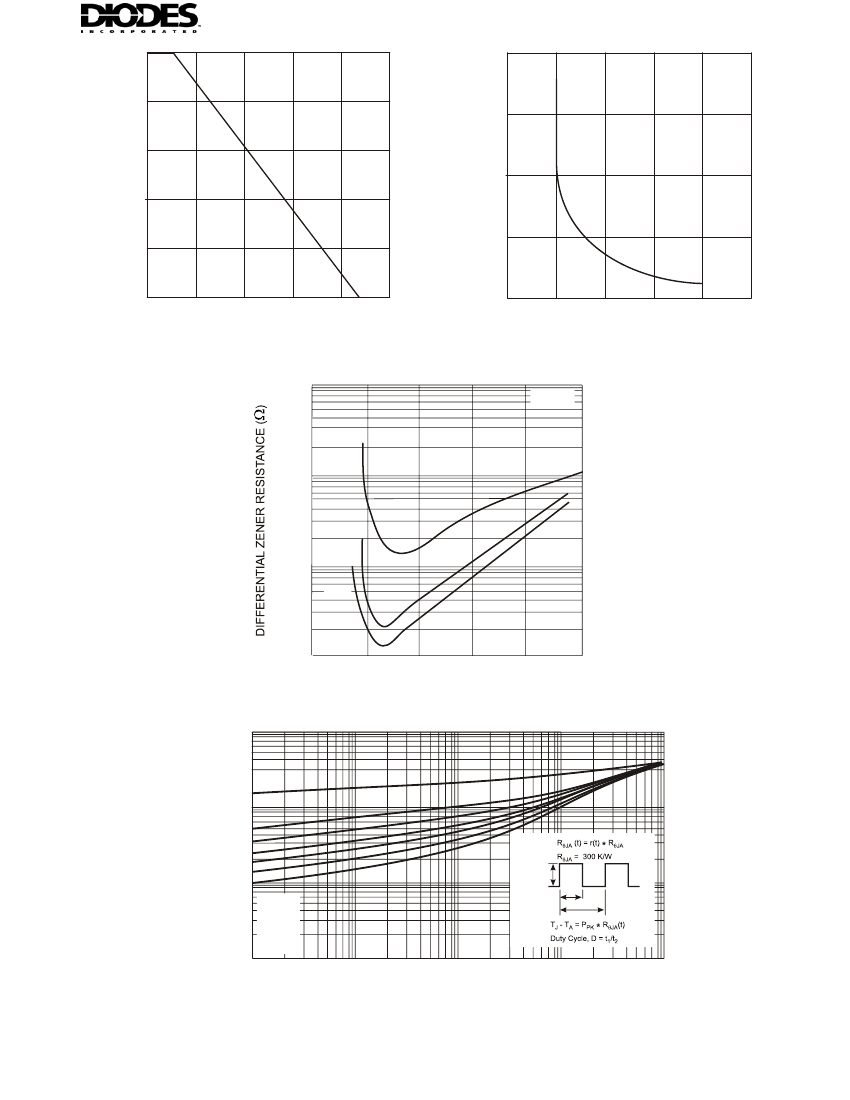

Preview

Download Datasheet

View All

ZMM5221B - ZMM5267B

500mW SURFACE MOUNT ZENER DIODE

SPICE MODEL: ZMM5235B ZMM5260B ZMM5262B

Features

500mW Power Dissipation

Outline Similar to JEDEC DO-213AA

Hemetic Glass Package

Mechanical Data

Case: MiniMELF

Terminals: Solderable per MIL-STD-202,

Method 208

Polarity: Cathode Band

Marking: Cathode Band Only

Weight: 0.034 grams (approx.)

MiniMELF

Dim

Min

3.30

1.30

0.28

Max

3.70

1.60

0.50

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Characteristic

Power Dissipation

Thermal Resistance, Junction to Ambient Air

Forward Voltage

(Note 1)

qJA

@ T

= 25°C unless otherwise specified

Value

500

300

1.5

-65 to +175

Unit

°C /W

Symbol

@ I

= 200mA

Operating and Storage Temperature Range

STG

Notes:

1. Valid provided that electrodes are kept at ambient temperature.

2. Tested with pulses, T

100ms.

DS30024 Rev. C-2

1 of 3

ZMM5221B-ZMM5267B
