ZMM5221B - ZMM5267B
500mW SURFACE MOUNT ZENER DIODE
NOT RECOMMENDED FOR NEW DESIGN
SUGGESTED REPLACEMENT MMSZ52xx
C
Features
·
·
·
·
500mW Power Dissipation
Outline Similar to JEDEC DO-213AA
Hemetic Glass Package
Lead Free Finish, RoHS Compliant (Note 3)
B
Mechanical Data
·
·
·
·
·
·
·
·
Case: MiniMELF
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Sn97.5Ag2.5. Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Ordering Information: See Last Page
Marking: Cathode Band Only
Weight: 0.034 grams (approximate)
Dim
A
B
C
MiniMELF
Min
3.30
1.30
0.28
Max
3.70
1.60
0.50
A
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Forward Voltage
(Note 1)
(Note 1)
P
d
R
qJA
V
F
@ T
A
= 25°C unless otherwise specified
Value
500
300
1.5
-65 to +175
Unit
mW
°C /W
V
o
C
Symbol
@ I
F
= 200mA
Operating and Storage Temperature Range
Notes:
T
j,
T
STG
1. Valid provided that electrodes are kept at ambient temperature.
2. Tested with pulses, T
p
£
100ms.
3. EC Directive 2002/95/EC (RoHS) revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied where applicable,
see
EU Directive Annex Notes 5 and 7.
DS30024 Rev. 5 - 3
1 of 5
www.diodes.com
ZMM5221B-ZMM5267B
ã
Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
SUGGESTED REPLACEMENT MMSZ52xx
Electrical Characteristics
Type
Number
Nom (V)
ZMM5221B
ZMM5222B
ZMM5223B
ZMM5224B
ZMM5225B
ZMM5226B
ZMM5227B
ZMM5228B
ZMM5229B
ZMM5230B
ZMM5231B
ZMM5232B
ZMM5233B
ZMM5234B
ZMM5235B
ZMM5236B
ZMM5237B
ZMM5238B
ZMM5239B
ZMM5240B
ZMM5241B
ZMM5242B
ZMM5243B
ZMM5244B
ZMM5245B
ZMM5246B
ZMM5247B
ZMM5248B
ZMM5249B
ZMM5250B
ZMM5251B
ZMM5252B
ZMM5253B
ZMM5254B
ZMM5255B
ZMM5256B
ZMM5257B
ZMM5258B
ZMM5259B
ZMM5260B
ZMM5261B
ZMM5262B
ZMM5263B
ZMM5264B
ZMM5265B
ZMM5266B
ZMM5267B
Notes:
@ T
A
= 25°C unless otherwise specified
Maximum Zener
Impedance
I
ZT
Max (V)
2.52
2.63
2.84
2.94
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.30
6.51
7.14
7.88
8.61
9.14
9.56
10.50
11.55
12.60
13.65
14.70
15.75
16.80
17.85
18.90
19.95
21.00
23.10
25.20
26.25
28.35
29.40
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
63.00
65.10
71.40
78.75
mA
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
9.0
8.5
7.8
7.4
7.0
6.6
6.2
5.6
5.2
5.0
4.6
4.5
4.2
3.8
3.4
3.2
3.0
2.7
2.5
2.2
2.1
2.0
1.8
1.7
Z
ZT
@ I
ZT
W
30
30
30
30
29
28
24
23
22
19
17
11
7.0
7.0
5.0
6.0
8.0
8.0
10
17
22
30
13
15
16
17
19
21
23
25
29
33
35
41
44
49
58
70
80
93
105
125
150
170
185
230
270
Z
ZK
@ I
ZK
=
0.25mA
W
1200
1250
1300
1400
1600
1600
1700
1900
2000
1900
1600
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
700
700
800
900
1000
1100
1300
1400
1400
1600
1700
Maximum Reverse
Current
I
R
µA
100
100
75
75
50
25
15
10
5.0
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
3.0
3.5
4.0
5.0
6.0
6.5
6.5
7.0
8.0
8.4
9.1
9.9
10
11
12
13
14
14
15
17
18
19
21
21
23
25
27
30
33
36
39
43
46
47
52
56
Typical
Temperature
Coefficient
@ I
ZT
%/ °C
-0.085
-0.085
-0.080
-0.080
-0.075
-0.070
-0.065
-0.060
-0.055
±0.030
±0.030
+0.038
+0.038
+0.045
+0.050
+0.058
+0.062
+0.065
+0.068
+0.075
+0.076
+0.077
+0.079
+0.082
+0.082
+0.083
+0.084
+0.085
+0.086
+0.086
+0.087
+0.087
+0.089
+0.090
+0.091
+0.091
+0.092
+0.093
+0.094
+0.095
+0.095
+0.096
+0.096
+0.097
+0.097
+0.097
+0.098
Zener Voltage Range
(Note 2)
V
Z
@ I
ZT
Min (V)
2.28
2.38
2.57
2.66
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.70
5.89
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
13.30
14.25
15.20
16.15
17.10
18.05
19.00
20.90
22.80
23.75
25.65
26.60
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
57.00
58.90
64.60
71.25
2.4
2.5
2.7
2.8
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
25
27
28
30
33
36
39
43
47
51
56
60
62
68
75
2. Tested with pulses, T
p
£
100ms.
DS30024 Rev. 5 - 3
2 of 5
www.diodes.com
ZMM5221B-ZMM5267B
500
NOT RECOMMENDED FOR NEW DESIGN
SUGGESTED REPLACEMENT MMSZ52xx
200
V
R
= 2.0V
T
j
= 25
°
C
P
d
, TOTAL POWER DISSIPATION (mW)
400
C
j
, JUNCTION CAPACITANCE (pF)
0
40
80
120
160
200
150
300
100
200
50
100
0
0
0
5
10
15
20
25
T
A
, AMBIENT TEMPERATURE

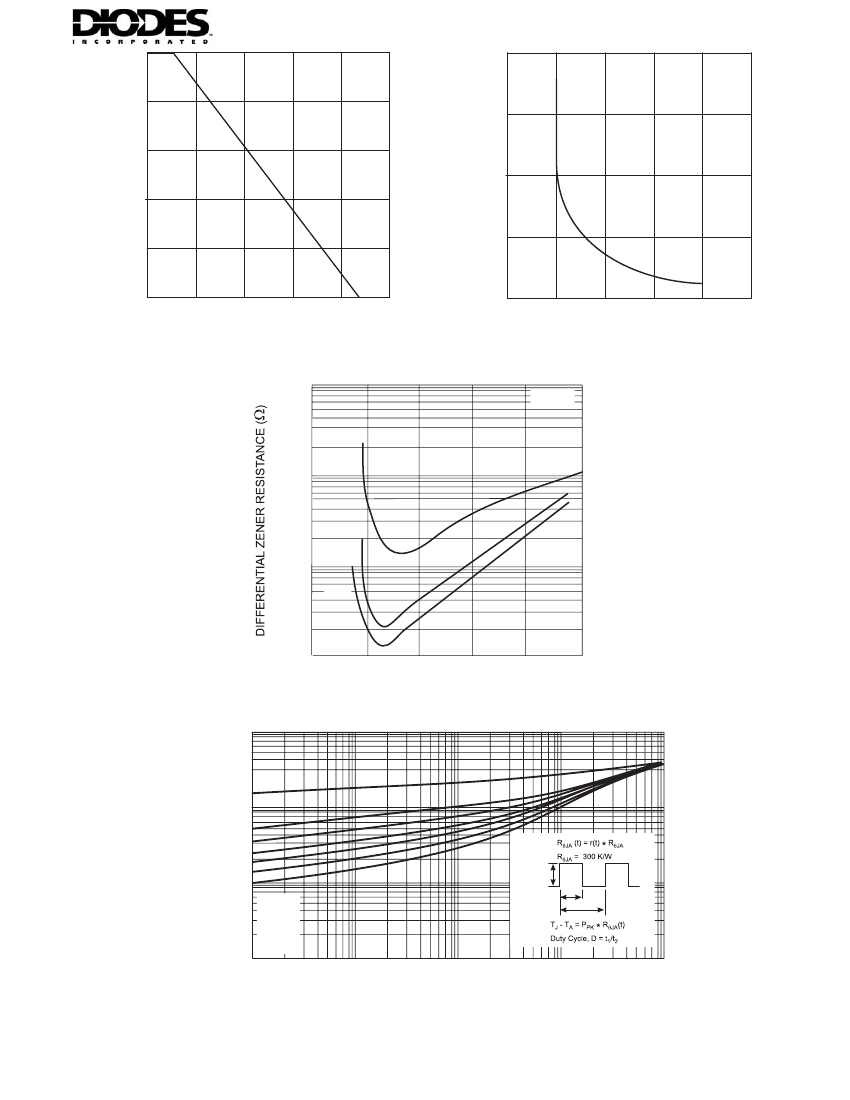

Fig.1 Power Dissipation vs Ambient Temperature
V
Z
, ZENER VOLTAGE (V)
Fig. 2 Junction Capacitance vs Zener Voltage
1000
T
j
= 25
°
C
I
Z
= 1.0mA
100
5.0mA
10
10mA
1
0
5
10
15
20
25
V
Z
, ZENER VOLTAGE (V)
Fig. 3 Differential Zener Impedance
1000
r(t), NORMALIZED EFFECTIVE
TRANSIENT THERMAL RESISTANCE (
o
C/W)
100
P
(pk)
10
D = 0.5
0.2
0.1
0.05
0.02
0.01
t
1
t
2
1.0
0.1
1.0
10
100
1000
t
1
, SQUARE WAVE PULSE DURATION (seconds)
Fig. 4 Typical Normalized Transient Thermal Impedance Curves
DS30024 Rev. 5 - 3
3 of 5
www.diodes.com
ZMM5221B-ZMM5267B
NOT RECOMMENDED FOR NEW DESIGN
SUGGESTED REPLACEMENT MMSZ52xx
Ordering Information
Device
ZMM5221B-7
ZMM5221B-13
ZMM5222B-7
ZMM5222B-13
ZMM5223B-7
ZMM5223B-13
ZMM5224B-7
ZMM5224B-13
ZMM5225B-7
ZMM5225B-13
ZMM5226B-7
ZMM5226B-13
ZMM5227B-7
ZMM5227B-13
ZMM5228B-7
ZMM5228B-13
ZMM5229B-7
ZMM5229B-13
ZMM5230B-7
ZMM5230B-13
ZMM5231B-7
ZMM5231B-13
ZMM5232B-7
ZMM5232B-13
ZMM5233B-7
ZMM5233B-13
ZMM5234B-7
ZMM5234B-13
ZMM5235B-7
ZMM5235B-13
ZMM5236B-7
ZMM5236B-13
ZMM5237B-7
ZMM5237B-13
ZMM5238B-7
ZMM5238B-13
ZMM5239B-7
ZMM5239B-13
ZMM5240B-7
ZMM5240B-13
ZMM5241B-7
ZMM5241B-13
ZMM5242B-7
ZMM5242B-13
ZMM5243B-7
ZMM5243B-13
ZMM5244B-7
ZMM5244B-13
ZMM5245B-7
ZMM5245B-13
(Note 4)
Packaging
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
Shipping
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
DS30024 Rev. 5 - 3
4 of 5
www.diodes.com
ZMM5221B-ZMM5267B
NOT RECOMMENDED FOR NEW DESIGN
SUGGESTED REPLACEMENT MMSZ52xx
Ordering Information
Device
ZMM5246B-7
ZMM5246B-13
ZMM5247B-7
ZMM5247B-13
ZMM5248B-7
ZMM5248B-13
ZMM5249B-7
ZMM5249B-13
ZMM5250B-7
ZMM5250B-13
ZMM5251B-7
ZMM5251B-13
ZMM5252B-7
ZMM5252B-13
ZMM5253B-7
ZMM5253B-13
ZMM5254B-7
ZMM5254B-13
ZMM5255B-7
ZMM5255B-13
ZMM5256B-7
ZMM5256B-13
ZMM5257B-7
ZMM5257B-13
ZMM5258B-7
ZMM5258B-13
ZMM5259B-7
ZMM5259B-13
ZMM5260B-7
ZMM5260B-13
ZMM5261B-7
ZMM5261B-13
ZMM5262B-7
ZMM5262B-13
ZMM5263B-7
ZMM5263B-13
ZMM5264B-7
ZMM5264B-13
ZMM5265B-7
ZMM5265B-13
ZMM5266B-7
ZMM5266B-13
ZMM5267B-7
ZMM5267B-13
Notes:
(Note 4) (continued)
Packaging
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
MiniMELF
Shipping
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
2.5K/Tape & Reel, 7-inch
10K/Tape & Reel, 13-inch
4. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02007.pdf
DS30024 Rev. 5 - 3
5 of 5
www.diodes.com
ZMM5221B-ZMM5267B
京公网安备 11010802033920号
EEWORLD
