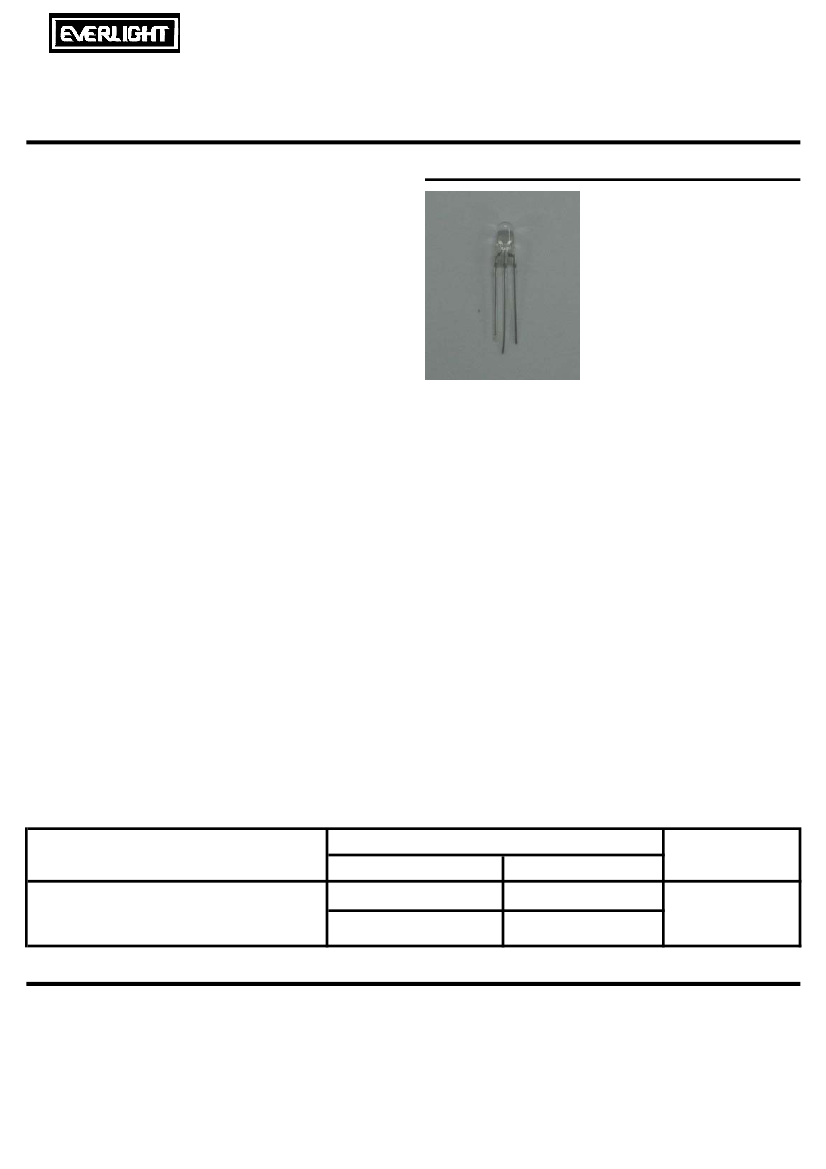

Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGC/S530-A3
█
Features :
●
Two chips are matched for uniform
light output, wide viewing angle
●
●
●
Long life-solid state reliability
I.C. compatible/Low power consumption
Pb free
█
Descriptions :
●
The339-1LED lamps contain two integral
chips and is available as both bicolor
and bipolar types.
●
Hyper Red and Super Yellow Green
light is emitted by diodes of
AlGaInP and AlGaInP
●
Type of bicolar lamps are both White
Diffused and Color Diffused while the
bicolor are Water Clear.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
Chip
Material
AlGaInP
339-1SURSYGC/S530-A3
AlGaInP
PART NO.
Emitted Color
Hyper Red
Super Yellow Green
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1457
http : //www.everlight.com
Prepared date: 2005/5/10
Rev.:
1
Page:
1 of 7
Prepared by:
CG0504154,R0502063
Jin Mei Feng
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGC/S530-A3
Package Dimensions
SYG
SUR
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Symbol
I
F
Topr
Tstg
Tsol
ESD
SUR/S530
SYG/S530
Rating
25
25
℃
℃
℃
Unit
mA
-40 to +85
-40 to +100
260
±
5
SUR/S530
SYG/S530
2000
2000
60
60
5
V
mW
Power Dissipation
Pd
SUR/S530
SYG/S530
Reverse Voltage
V
R
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1457
http : //www.everlight.com
Prepared date:
2005/5/10
Rev.:
1
Page: 2 of 7
Jin Mei Feng
Prepared by:
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGC/S530-A3
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous
Viewing
Intensity
Angle
Iv
Symbol
SUR/S530
SYG/S530
2θ1/2
λp
SUR/S530
SYG/S530
λd
SUR/S530
SYG/S530
△λ
SUR/S530
SYG/S530
V
F
Forward Voltage
SYG/S530
I
R
Reverse Current
I
R
SYG/S530
／
／
10
μA
SUR/S530
／
／
2.0
／
2.4
10
μA
V
R
=
5
V
SUR/S530
Min.
160
40
／
／
／
／
／
／
／
／
Typ.
250
63
25
632
575
624
573
20
20
2.0
Max.
／
／
／
／
／
／
／
／
／
2.4
V
I
F
=
20
mA
nm
nm
deg
nm
Unit
mcd
Condition
I
F
=
I
F
=
I
F
=
20
20
20
mA
mA
mA
Peak Wavelength
Dominant
Wavelength
I
F
=
20
mA
Spectrum Radiation
Bandwidth
I
F
=
20
mA
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-033-1457
http : //www.everlight.com
Prepared date: 2005/5/10
REV.:
Prepared by:
1
Page: 3 of 7
Jin Mei Feng
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGC/S530-A3
█

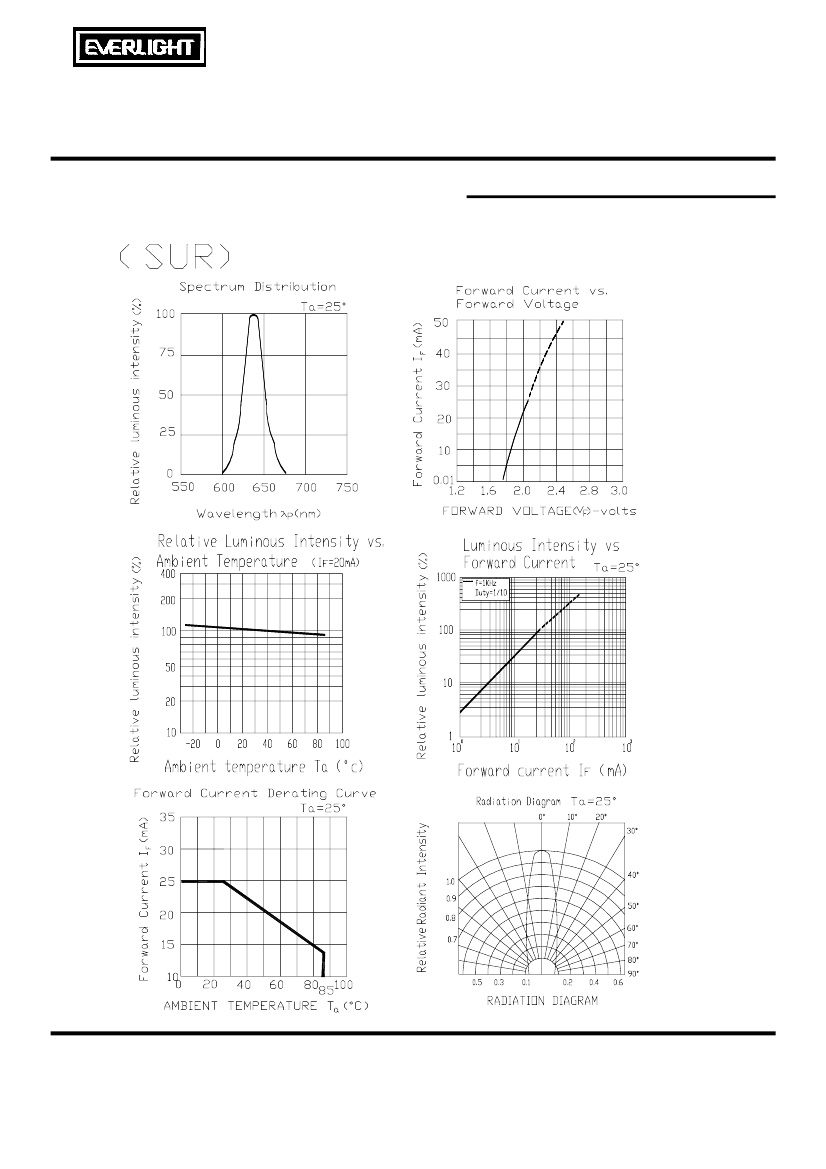

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1457
http : //www.everlight.com
Prepared date: 2005/5/10
Rev.:
1
Page:
4 of 7
Prepared by:
Jin Mei Feng
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGC/S530-A3
█

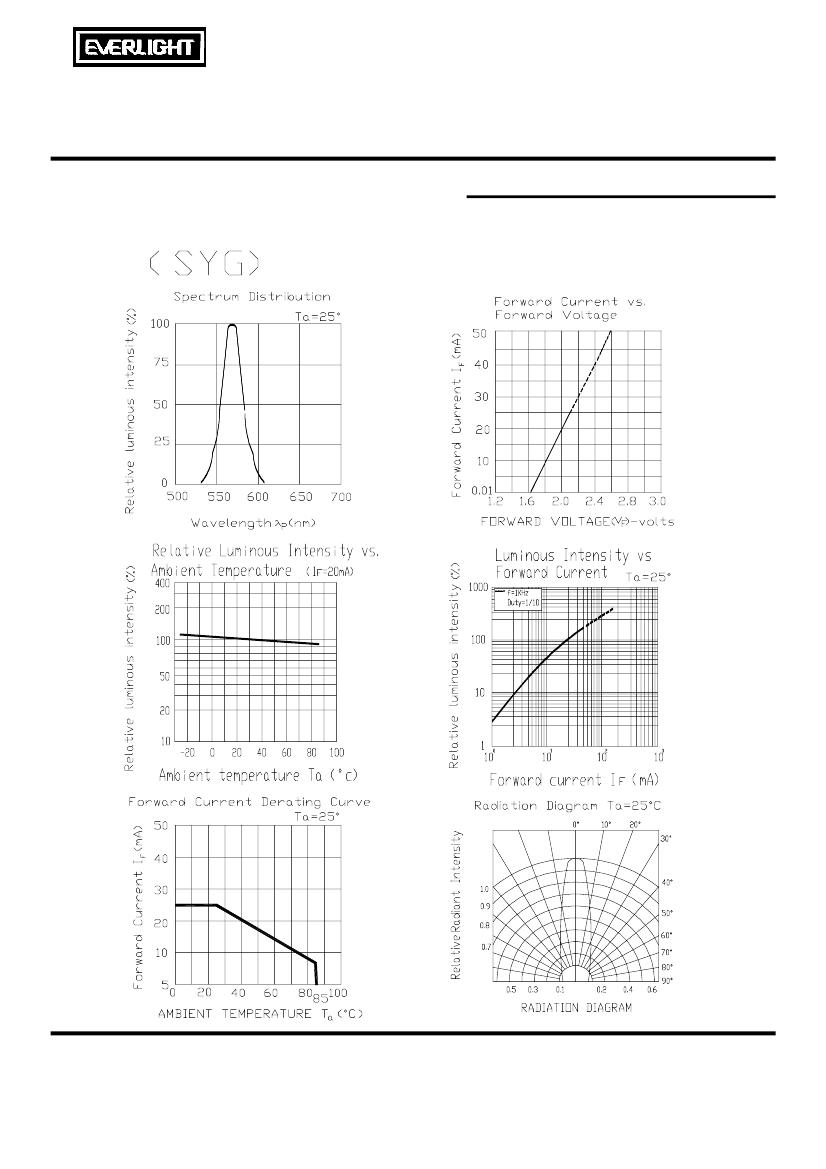

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1457
http : //www.everlight.com
Prepared date: 2005/5/10
Rev.:
1
Page:
5 of 7
Prepared by:
Jin Mei Feng
