Part Number

Search

421902

Description
85 A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK
CategoryThe connector
File Size34KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

421902 Overview

85 A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK

421902 Parametric

Parameter NameAttribute value
Rated current85 A
Rated voltage600 V
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
contact surfaceTIN (150)
Contact materialsNOT SPECIFIED
Manufacturer Series39425
Fastening methodSCREW
Installation typeCABLE
Number of layers1
Rows1
Number of channels2
Terminal module typeMODULAR
Wire cross section21.2 mm2
Wire gauge3 AWG

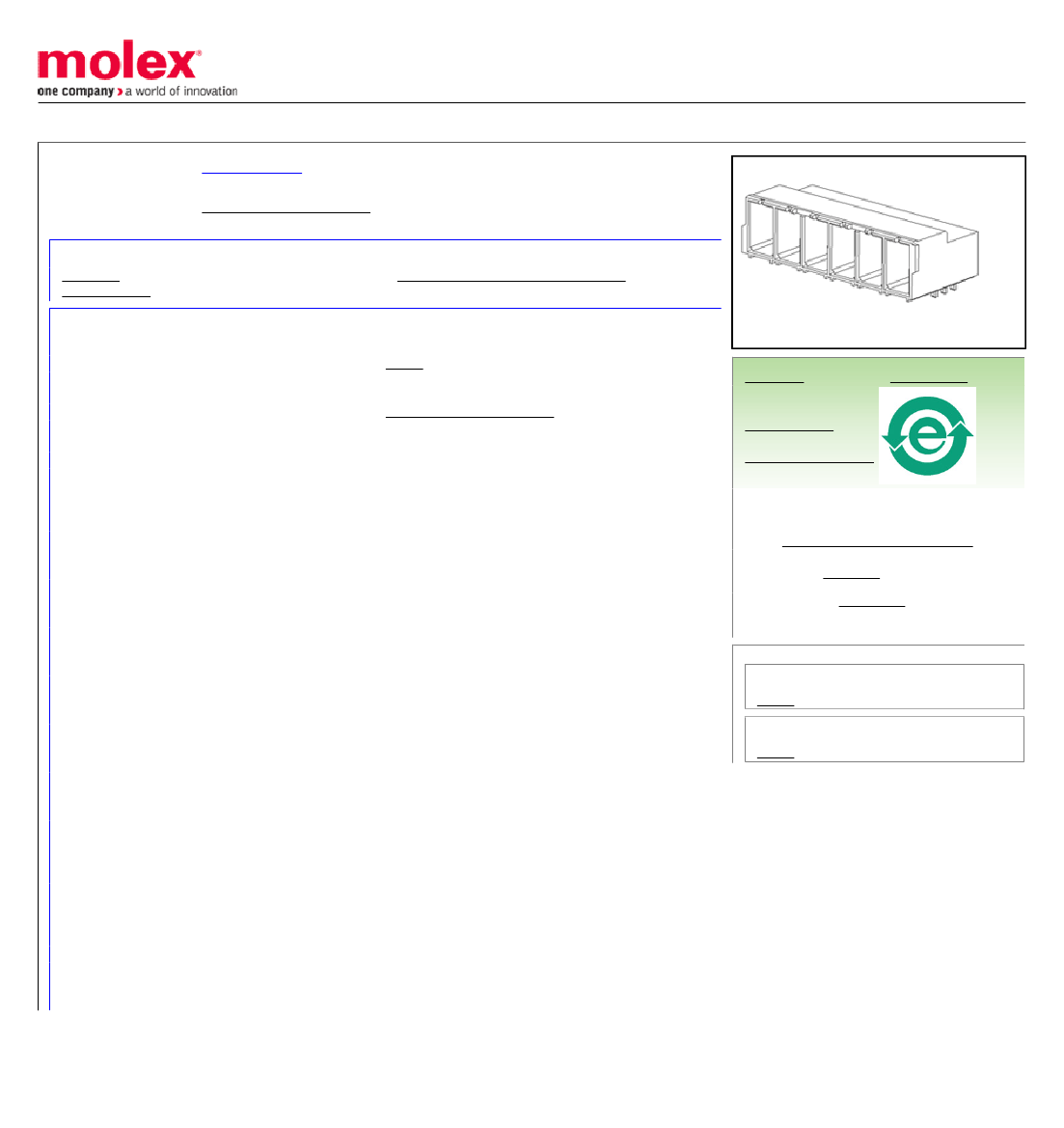

This document was generated on 10/27/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
39425-0002
Active
Eurostyle™ Terminal Blocks
12.00mm Pitch Beau™ EuroMax™ Right Angle PCB Header, Closed Ends, 2 Circuits
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
UPC
Terminal Blocks
39425
N/A
PCB Header
Eurostyle™ Terminal Blocks
EuroMax™Pluggable
Euro Block
822348530359
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Retention
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
2
N/A
Yes
Tin
Tin
16.100/g
1
Right Angle
4.30mm
None
3.20mm
No
12.00mm
12.00mm
3.810µm
3.810µm
Yes
Closed Ends
No
130°C
Through Hole
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39425Series
Mates With
39421 Plugs
Electrical
Current - Maximum per Contact
Voltage - Maximum
85A
600V
Material Info
Old Part Number
421902
Reference - Drawing Numbers
Sales Drawing
SD-39425-001
This document was generated on 10/27/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
