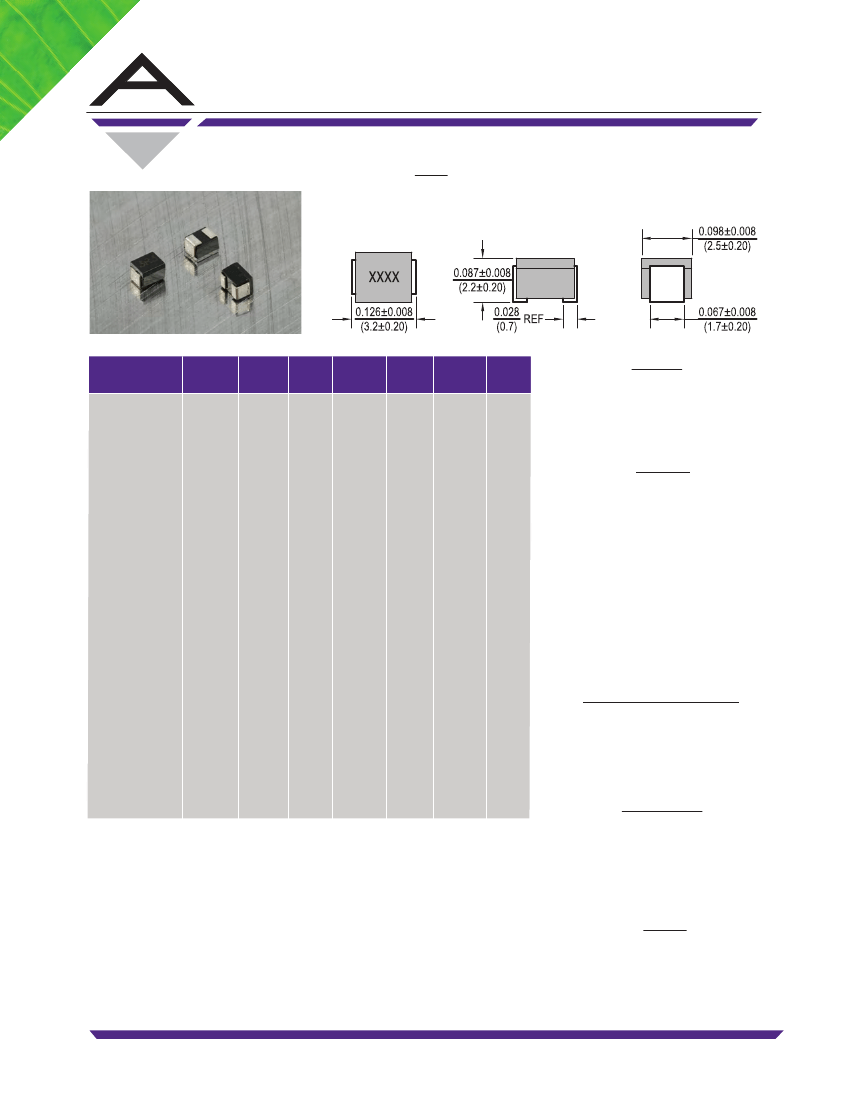

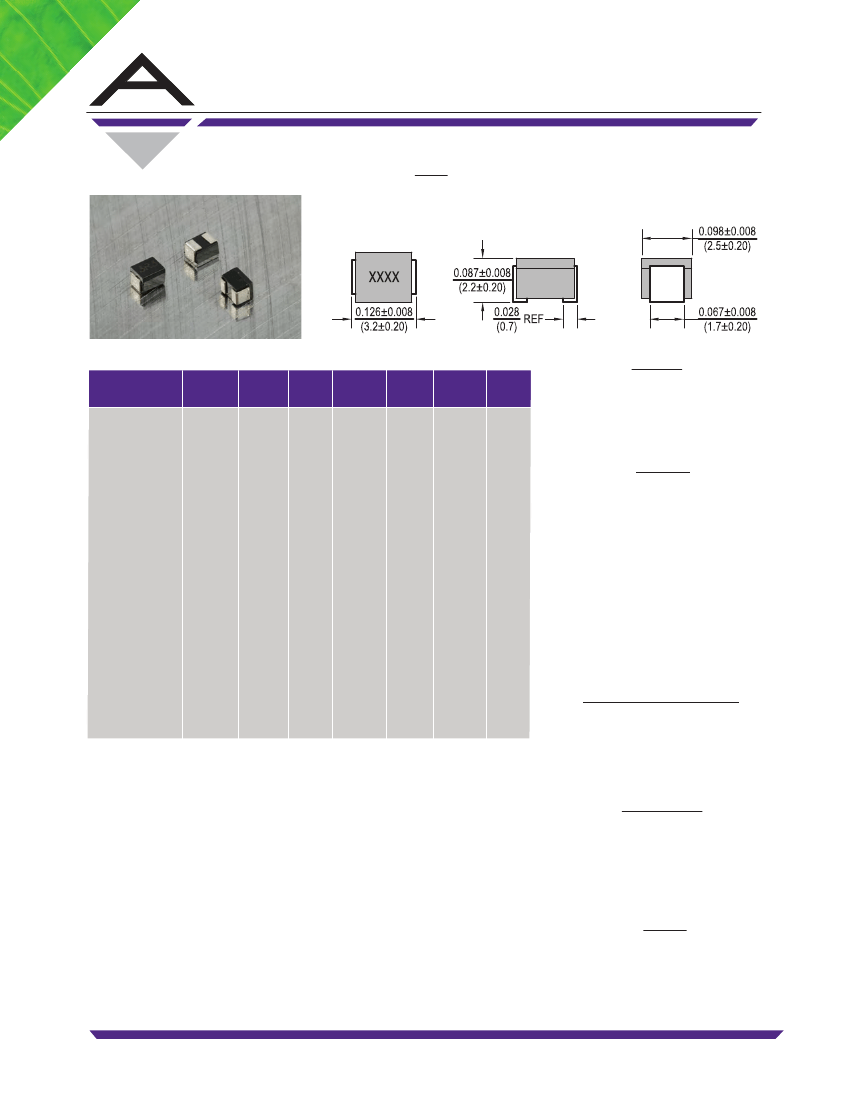

Molded Chip Inductors

Dimensions:

Inches

(mm)

MC20A

Features

Allied

Part

Number

Inductance Tolerance

(µh)

(%)

Min.

Test

Freq.

(MHz)

SRF

Min.

(MHz)

DCR

Max.

(Ω)

IDC

(mA)

• 1210 Molded Chip Inductor

• Excellent Solder Heat Resistance

• Welded internal lead frame to coil

wire connection

Electrical

Inductance Range:

.01µh ~ 330µh

Tolerance:

10% over entire range

Also available in 5% & 20%

Test Frequency:

.01µh ~ .1µh measured at 100Mhz,

.12µh ~ .82µh measured at 25.2Mhz,

1µh ~ 8.2µh measured at 7.96Mhz,

10µh ~ 82µh measured at 2.52Mhz,

100µh ~ 330µh measured at .796Mhz,

Operating Temp:

-25ºC ~ +85ºC @ 75% RH

IDC:

The current at which inductance will drop no

more then 10% of it’s orginial value at 1Mhz, 1v.

L/Q:

Test OCS @ 200mv

Resistance to Soldering Heat

Pre-heating: 150ºC, 1min

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temperature: 245 ± 5ºC

Immersion Time: 4 ± 1sec

MC20A-R010K-RC

MC20A-R012K-RC

MC20A-R015K-RC

MC20A-R018K-RC

MC20A-R022K-RC

MC20A-R027K-RC

MC20A-R033K-RC

MC20A-R039K-RC

MC20A-R047K-RC

MC20A-R056K-RC

MC20A-R068K-RC

MC20A-R082K-RC

MC20A-R10K-RC

MC20A-R12K-RC

MC20A-R15K-RC

MC20A-R18K-RC

MC20A-R22K-RC

MC20A-R27K-RC

MC20A-R33K-RC

MC20A-R39K-RC

MC20A-R47K-RC

MC20A-R56K-RC

MC20A-R68K-RC

MC20A-R82K-RC

.010

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.10

.12

.15

.18

.22

.27

.33

.39

.47

.56

.68

.82

100

25.2

2500

2300

2100

1900

1700

1500

1400

1300

1200

1100

1000

900

700

500

450

400

350

320

300

250

220

180

160

140

0.13

0.14

0.16

0.18

0.20

0.22

0.24

0.27

0.30

0.33

0.36

0.40

0.44

0.22

0.25

0.28

0.32

0.36

0.40

0.45

0.50

0.55

0.60

0.65

450

Additional values continued on page 2

Available in tighter tolerances.

All specifications subject to change without notice.

Test Equipment

(L/Q):

.01µh~82µh HP4287A + HP16034E

(L/Q):

100µh~470µh HP4292A + HP16034E

(RDC):

Chen Hwa 502

(IDC):

HP4284A + HP42841A/WK3260B

(SRF):

HP4291A

Physical

Packaging:

2000 pieces per 7 inch reel.

Marking:

EIA Inductance Code.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 02/23/12

PAGE 1 OF 2

www.alliedcomponents.com
