HR
CONNECTOR
Radial Tape
2.5mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG #22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,000V AC/minute
• Applicable wire: AWG #26 to #22
• Applicable PC board thickness: 0.8 to 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
JS
T5
• Thin design
• High reliability
• Interchangeability
Standards ––––––––––––––––––––––
1
Certified LR20812
Side entry type
4.1
2.5
min
2.2
min
0
Recognized E60389

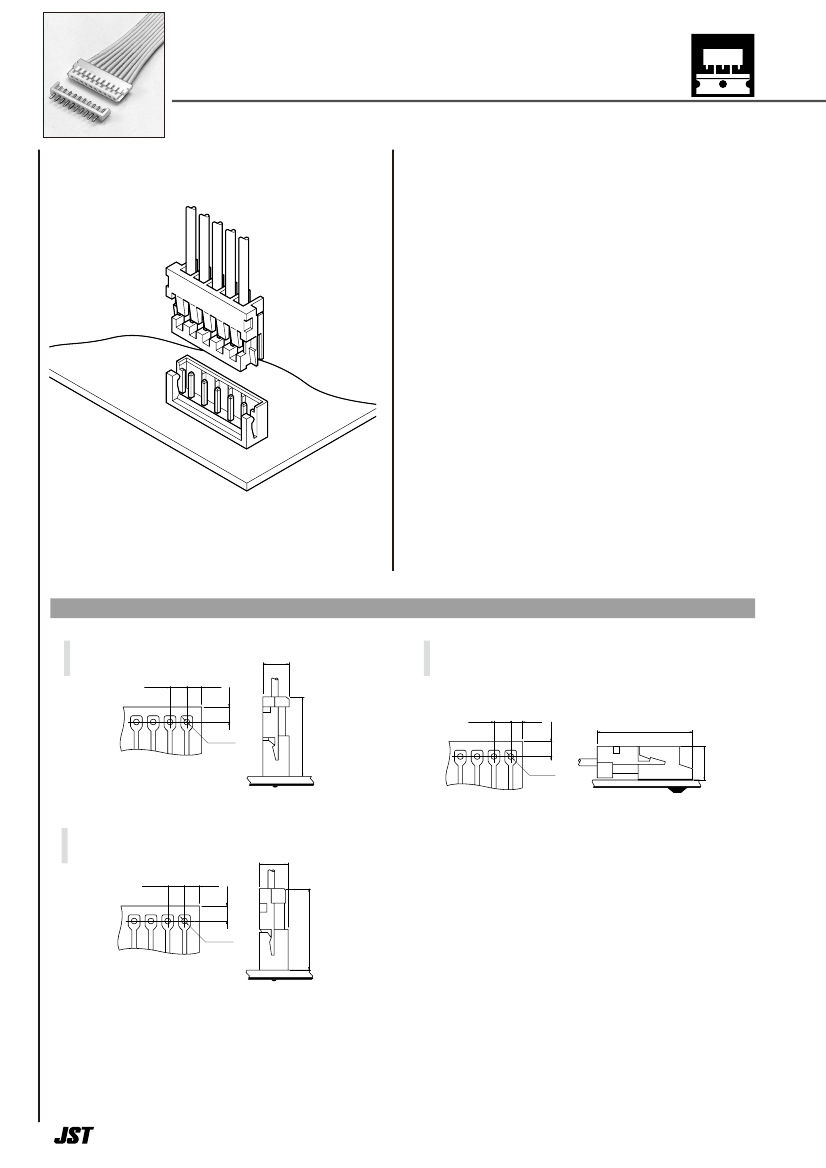

PC board layout (viewed from soldering side) and Assembly layout
Top entry type
2.5
±0.05
2.5
±0.05
φ0.9
0
＋0.1
2.5
min
6.7
min
13.5
11.3
φ0.9
0
＋0.1
Top entry type on radial-tape
4.4
2.5
±0.05
2.5
min
2.2
min
φ0.9
0
＋0.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
1
11.8
4.2
HR CONNECTOR
Contact
Model No.
8.2
4.85
1.3
2.85
0.8
Applicable wire
mm
2
0.13∼0.33
AWG #
26∼22
Insulation O.D. (mm)
Q'ty /
reel
1.3∼1.7
9,000
SHR-001T-P0.6
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
RoHS compliance
2.1
Contact
1.9
Crimping
machine Crimp applicator
AP-K2N
MKS-L
Applicator
Dies
Crimp applicator with dies
SHR-001T-P0.6
MK/SHR/MR-001-06 APLMK SHR/MR001-06
SC/SHR/MR-001-06 APLSC SHR/MR001-06
*
MKS-SC
Note:*Strip-crimp applicator
Housing
Circuits
2
3
4
2.5
2.5
A
4.1
Model No.
HRP-02-S
HRP-03-S
HRP-04-S
HRP-05-S
HRP-06-S
HRP-07-S
HRP-08-S
HRP-09-S
HRP-10-S
HRP-11-S
HRP-12-S
HRP-13-S
Dimensions (mm)
A
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
B
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
Q'ty /
bag
2,000
2,000
1,000
1,000
1,000
500
500
500
500
500
500
250
5
6
7
8
9
10
10.3
11
12
13
1
JST
B
Material
PA 66, UL94V-0, natural (white)
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
HRP-02-S-
S…natural (white)
K…black R…red TR…tomato red E…blue
L…lemon yellow M…green N…brown O…orange P…purple
PK…pink LE…light blue Y…yellow FY…vivid yellow H…gray
Shrouded header
The shrouded headers are interchangeable with those of the EH crimp style and HR insulation displacement connectors.
2
