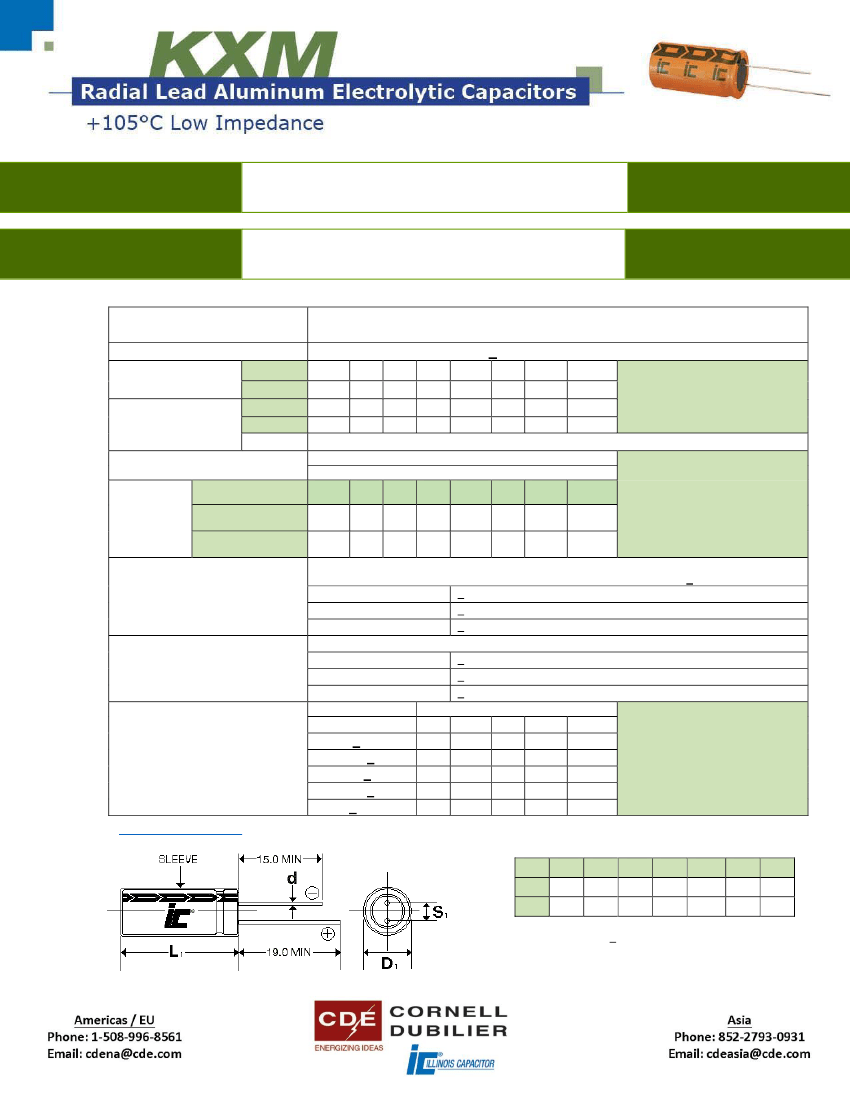

826KXM100MQP: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount,; CategoryPassive components capacitor; File Size369KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric Compare View All

826KXM100MQP Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount,

826KXM100MQP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7072516185
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	82 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM
ESR	2021.8 mΩ
leakage current	0.082 mA
length	15 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
ripple current	272 mA
surface mount	NO
Delta tangent	0.1
Terminal pitch	7.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

Standardized Case Sizes

-

High Ripple Current

–

Multiple

Case Sizes

Bypass

–

Coupling

–

Filtering

–

De-Coupling

Operating Temperature

Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

WVDC

Dissipation

Tan δ

Factor

Leakage Current

Low

Temperature

Stability

Impedance

Ratio

(120 Hz)

-55°C to +105°C

+20% at 120 Hz, 20°C

6.3

7.9

6.3

.22

10

13

10

.19

16

20

16

.16

25

32

25

.14

35

44

35

.12

50

63

50

.1

63

79

63

.1

100

125

100

.1

Add .02 for every 1000uF above 1000uF

2 Minutes

.01CV or 3uA, Whichever is greater

WVDC

-25°C to +20°C

-40°C to +20°C

6.3

4

8

10

3

6

16

2

4

25

2

3

35

2

3

50

2

3

63

2

3

100

2

3

Load Life

Shelf Life

5000 hours at 105°C with rated WVDC and ripple current applied

(4000 hrs. for D=10, 3000 hrs. for D=8, 2000 hrs. for D<6.3)

Capacitance Change

<25% of initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 hours at 105°C with no voltage applied

Capacitance Change

<25% initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

Frequency (Hz)

Ripple Current Multipliers

Capacitance

C<180

220<C<560

680<C<1800

2200<C<3900

C>4700

50

.4

.5

.6

.75

.85

120

.4

.5

.6

.75

.85

1k

.75

.85

.87

.9

.95

10k

.9

.94

.95

.98

100k

1.0

Special Order Options

D

S

d

5

2.0

0.5

6.3

2.5

0.5

8

3.5

0.6

10

5.0

0.6

12.5

5.0

0.6

16

7.5

0.8

18

7.5

0.8

mm

L

1

=L+1.5 mm Max. (L<20mm)

L

1

=L+2.0 mm Max. (L>20mm)

D

1

=D+0.5 mm Max.

S

1

=S+0.5 mm

Sep-21
