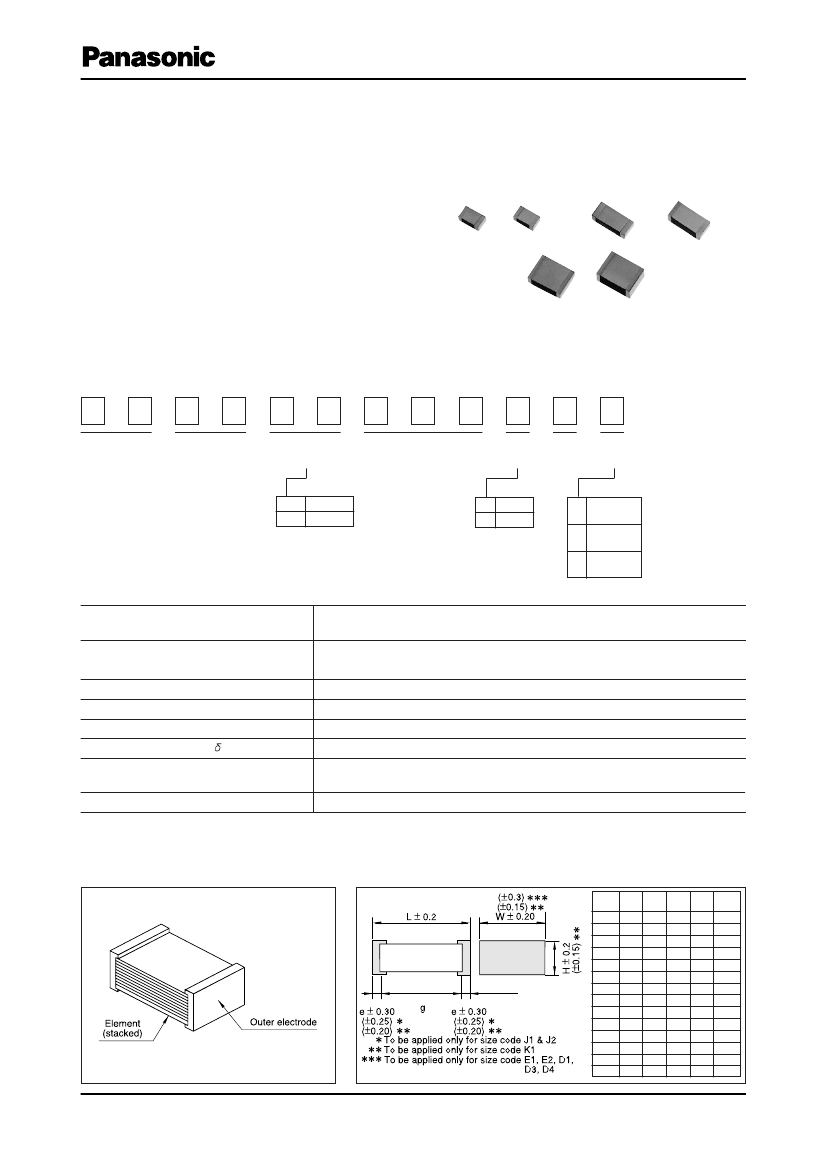

Plastic Film Capacitors
Stacked Metallized PPS Film Chip Capacitor
Type:
ECHU(X)
Stacked metallized PPS film as dielectric with simple
mold-less construction
■Features
•
Small in size (minimum size 1.6 mm
✕
0.8 mm)
•
85 ˚C, 85 %RH, W.V.
✕
1.0 for 500 hours
•
For reflow soldering
•
RoHS directive compliant
■Recommended
Applications
•
Time-constant
•
Filtering
•
Oscillation and resonance
■Explanation
of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
H
U
Rated voltage
Capacitance
X
Cap. Tol. Suffix
Suffix
Product code
Dielectric &
construction
1C 16 VDC
1H 50 VDC
G ±2 %
J ±5 %
■Specifications
Category temp. range
(Including temperature-rise on unit surface)
Rated voltage
Capacitance range
Capacitance tolerance
Withstand voltage
Dissipation factor (tan )
Insulation resistance (IR)
Soldering conditions
−55
℃
to
＋125
℃
16 VDC，50 VDC
Tape width
Reel diameter
❈
Tape width 8 mm
and diameter
8 mm
5
size ø180 mm ø330 mm reel is
prepared.
12 mm
9
size ø330 mm
(50 VDC: 0.12 µF or more: Derating or rated voltage by 1.25 % /
℃at
more than 105
℃)
0.00010 µF to 0.22 µF (E12)
±2 %(G), ±5 %(J)
Between terminals : Rated volt. (VDC)
✕
150 % 60 s
tanδ≦0.6 % (20
℃,
1 kHz)
16 VDC：IR≧3000 MΩ (20
℃,
10 VDC, 60 s)
50 VDC：IR≧3000 MΩ (20
℃,
50 VDC, 60 s)
Reflow soldering : 260 ˚C max. and 95 sec max. at more than 220 ˚C (Temp. at cap. surface)
❈
Please consult us for flow soldering
❈
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please
refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
■Construction
■Dimensions
in mm (not to scale)
saize
code
K1
J1
J2
H1
H2
H3
G1
G2
G3
E1
E2
D1
D3
D4
L
1.6
2.0
2.0
3.2
3.2
3.2
3.2
3.2
3.2
4.8
4.8
6.0
6.0
6.0
W
0.8
1.25
1.25
1.6
1.6
1.6
2.5
2.5
2.5
3.3
3.3
4.1
4.1
4.1
H
0.7
0.9
1.1
0.9
1.1
1.5
1.1
1.5
2.1
1.5
2.1
1.9
2.5
2.8
e
0.35
0.45
0.45
0.65
0.65
0.65
0.65
0.65
0.65
0.80
0.80
0.80
0.80
0.80
g
≧0.4
≧0.6
≧0.6
≧1.0
≧1.0
≧1.0
≧1.0
≧1.0
≧1.0
≧2.0
≧2.0
≧2.0
≧2.0
≧2.0
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC16 −
Plastic Film Capacitors
■Taping
Specification for Automatic Mounting
Refer to the page of taping specifications
■Rating,
Dimensions & Quantity/Reel
Rated volt. 16 VDC
Cap. (µF)
0.00010
0.00012
0.00015
0.00018
0.00022
0.00027
0.00033
0.00039
0.00047
0.00056
0.00068
0.00082
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
Part No.
ECHU1C101□X5
ECHU1C121□X5
ECHU1C151□X5
ECHU1C181□X5
ECHU1C221□X5
ECHU1C271□X5
ECHU1C331□X5
ECHU1C391□X5
ECHU1C471□X5
ECHU1C561□X5
ECHU1C681□X5
ECHU1C821□X5
ECHU1C102□X5
ECHU1C122□X5
ECHU1C152□X5
ECHU1C182□X5
ECHU1C222□X5
ECHU1C272□X5
ECHU1C332□X5
ECHU1C392□X5
ECHU1C472□X5
ECHU1C562□X5
ECHU1C682□X5
ECHU1C822□X5
ECHU1C103□X5
ECHU1C123□X5
ECHU1C153□X5
ECHU1C183□X5
ECHU1C223□X5
ECHU1C273□X5
ECHU1C333□X5
ECHU1C393□X5
ECHU1C473□X5
ECHU1C563□X5
ECHU1C683□X5
ECHU1C823□X5
ECHU1C104□X5
↑
Dimensions (mm)
●Capacitance
tolerance : ± 2 % (G), ± 5 % (J)
Rated volt. 50 VDC
Size
Code
L
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
2.0
2.0
2.0
2.0
2.0
2.0
2.0
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
W
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
2.5
2.5
2.5
2.5
H
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.9
0.9
0.9
0.9
0.9
1.1
1.1
0.9
0.9
0.9
0.9
1.1
1.1
1.5
1.5
1.5
1.5
2.1
2.1
Q'ty
Part No.
Dimensions (mm)
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
K1
J1
J1
J1
J1
J1
J2
J2
H1
H1
H1
H1
H2
H2
H3
H3
G2
G2
G3
G3
ECHU1H101□X5
ECHU1H121□X5
ECHU1H151□X5
ECHU1H181□X5
ECHU1H221□X5
ECHU1H271□X5
ECHU1H331□X5
ECHU1H391□X5
4000 ECHU1H471□X5
ECHU1H561□X5
ECHU1H681□X5
ECHU1H821□X5
ECHU1H102□X5
ECHU1H122□X5
ECHU1H152□X5
ECHU1H182□X5
ECHU1H222□X5
ECHU1H272□X5
ECHU1H332□X5
ECHU1H392□X5
ECHU1H472□X5
ECHU1H562□X5
ECHU1H682□X5
ECHU1H822□X5
3000 ECHU1H103□X5
ECHU1H123□X5
ECHU1H153□X5
ECHU1H183□X5
ECHU1H223□X5
ECHU1H273□X5
ECHU1H333□X5
ECHU1H393□X5
ECHU1H473□X9
2000 ECHU1H563□X9
ECHU1H683□X9
ECHU1H823□X9
ECHU1H104□X9
ECHU1H124□X9
ECHU1H154□X9
ECHU1H184□X9
ECHU1H224□X9
↑
L
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
4.8
4.8
4.8
4.8
4.8
6.0
6.0
6.0
6.0
W
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.6
1.6
1.6
1.6
1.6
1.6
1.6
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.3
3.3
3.3
3.3
3.3
4.1
4.1
4.1
4.1
H
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
1.1
1.1
1.1
1.1
1.5
1.5
1.5
2.1
2.1
1.5
1.5
1.5
2.1
2.1
1.9
1.9
2.5
2.8
Size
Code
Q'ty
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
H1
H1
H1
H1
H1
H2
H2
G1
G1
G2
G2
G2
G3
G3
E1
E1
E1
E2
E2
D1
D1
D3
D4
3000
2000
3000
2000
Cap. tol. code
■Recommended
for Land Dimensions (mm)
Land dimensions
Size
Code
A
Reflow soldering
B
C
K1
J1,J2
H1,H2,H3
G1,G2,G3
E1,E2
D1,D3,D4
0.6
0.8
1.8
1.8
3.0
4.0
2.0
2.4
3.6
3.6
5.6
7.0
0.7
1.1
1.4
2.3
3.0
3.8
❈
It is not warrantable that you can mount the capacitor without trouble under all the mounting condition when
“Recommender for Land dimensions” is adopted.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC17 −
Chip
ECHU (X) Type
DC10V series
(Stacked Metallized Film)

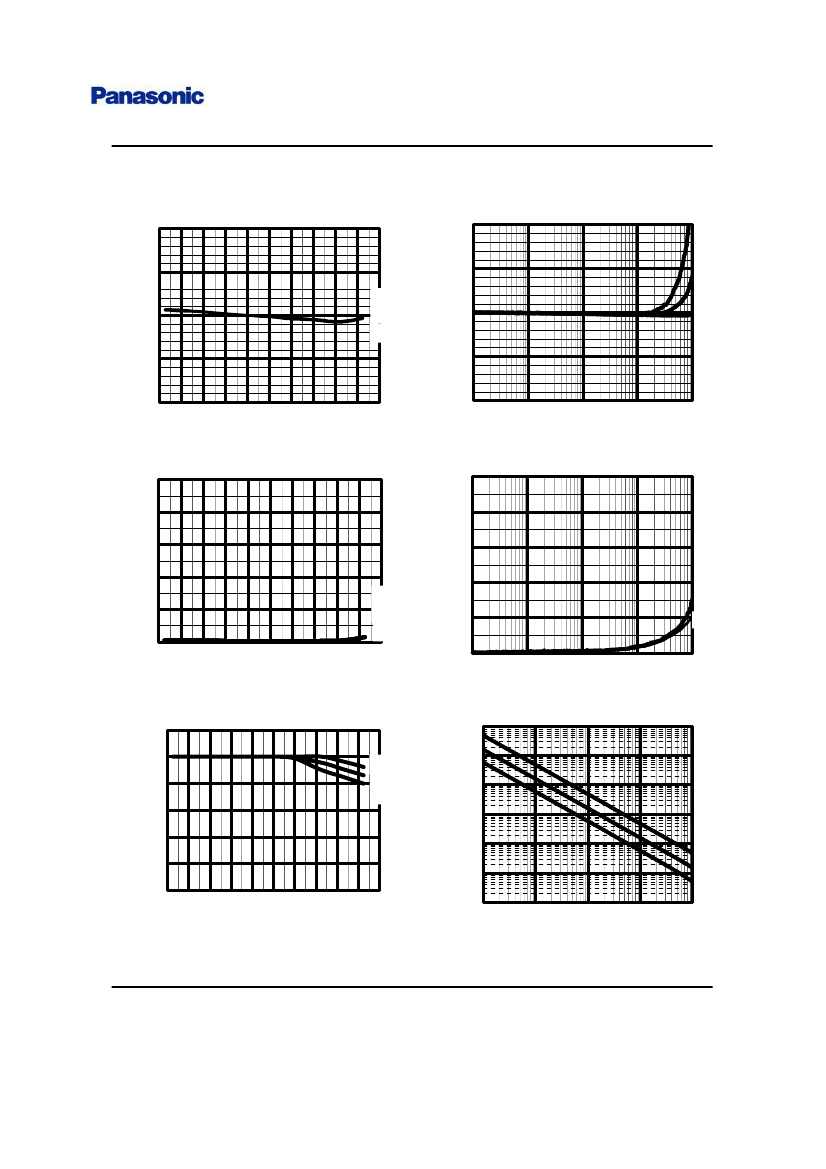

Frequency Characteristics
10
27nF
Electrical Characteristics <Typical Data >
Temperature Characteristics
10
at 1kHz
Capacitance change(%)
Capacitance change(%)
5
0
-5
-10
-60 -40 -20
0
20 40 60 80 100 120 140
27nF
10nF
3.3nF
5
0
-5
-10
1
10
100
1000
10nF
3.3nF
10000
Temperature(Degree C)
10
Frequency(kHz)
10
at 1kHz
Dissipation factor(%)
Dissipation factor(%)
8
6
4
27nF
8
6
4
2
0
1
10
100
1000
10000
27nF
10nF
3.3nF
2
0
-60 -40 -20
0
10nF
3.3nF
20 40 60 80 100 120 140
Temperature(Degree C)
1.E+12
1.E+11
1.E+10
1.E+09
1.E+08
1.E+07
1.E+06
-60 -40 -20 0
20 40 60 80 100 120 140
Frequency(kHz)
100000
at DC10V
Impedance(ohm)
3.3nF
10nF
27nF
Insulation resistance(ohm)
10000
1000
100
10
1
0.1
1
10
100
1000
10000
3.3nF
10nF
27nF
Temperature(Degree C)
Frequency(kHz)
ECHU (X) Type
DC10V series
(Stacked Metallized Film)
Permissible Voltage
(at sine wave)
Applicable Specifications
Permissible Current
0.5
100
Effective value (Arms)
0.3
27nF
Effective value (Vrms)
0.4
10
From
3.3nF
to 27nF
0.2
22nF
18nF
0.1
15nF
12nF
8.2nF
10nF
0.0
1
10
100
6.8nF
5.6nF 4.7nF
3.9nF 3.3nF
1000
1
1
10
100
1000
Frequency(kHz)
Frequency(kHz)
Pulse Handling Capability (dv/dt)
(Max 10000cycles)
Voltage Derating by Temperature
20
Rating Capacitance
Voltage
Value(uF)
0.0033
0.0039
0.0047
0.0056
0.0068
DC
10V
0.0082
0.01
0.012
0.015
0.018
0.022
0.027
code
dV/dt Current
(0-P)
(A)
(V/us)
332
47
0.16
392
472
562
682
822
103
123
153
183
223
273
44
40
37
34
31
28
26
24
22
20
18
0.17
0.21
0.23
0.25
0.28
0.31
0.36
0.40
0.44
0.49
16
DC Rated Voltage (V)
0.19
12
From
3.3nF
to 27nF
8
4
0
-60 -40 -20
0
20 40 60 80 100 120 140
Surface Temperature of Capacitor(DegreeC)
* Please consult Panasonic if your condition exceeds the above
*Permissible voltage graph is the case of sine waveform. When you use this product, peak voltage must not exceed DC rated voltage.
*The current(0-P) value is calculated using nominal capacitance.

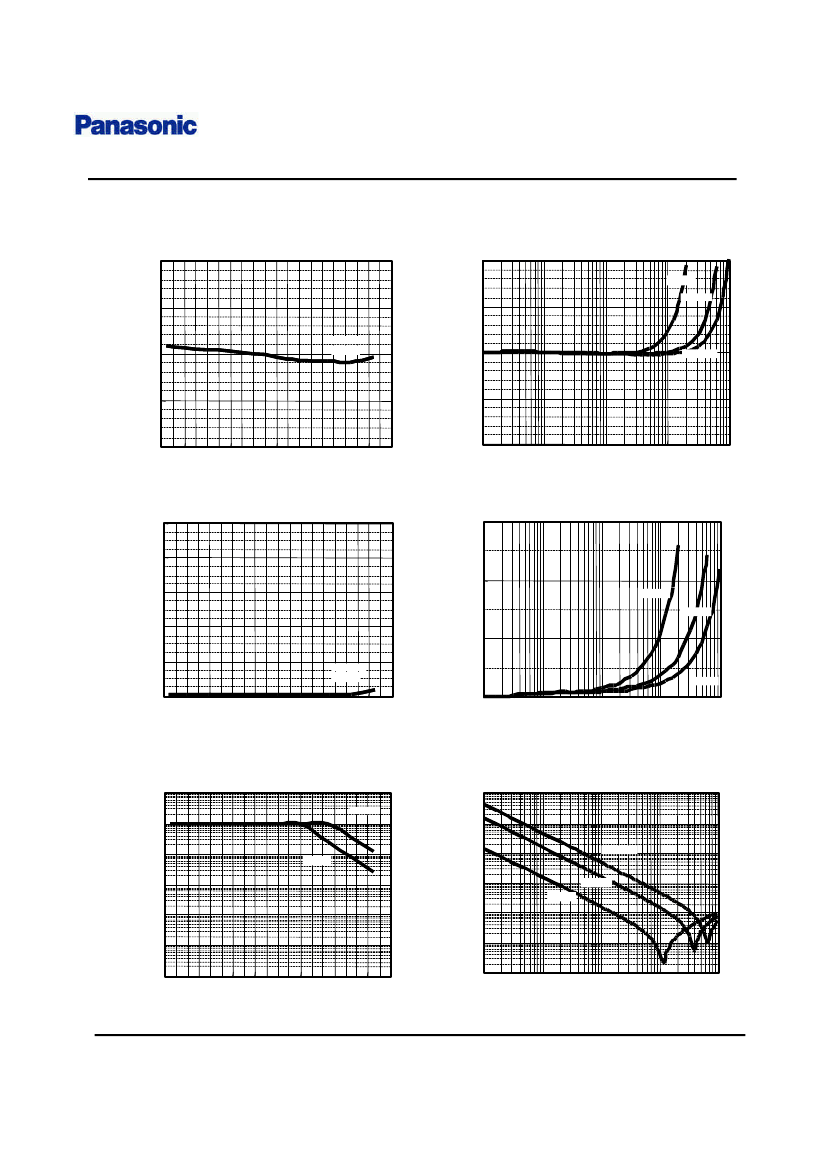

ECHU (X) Type
DC16V series
(Stacked Metallized Film)
Frequency Characteristics
10
0.10uF
Electrical Characteristics < Typical Data >
Temperature Characteristics
10
Capacitance change(%)
at 1kHz
Capacitance change(%)
0.010uF
5
0
-5
-10
-60 -40 -20 0 20 40 60 80 100 120 140
0.010uF
0.10uF
5
0
-5
-10
1
10
100
1000
10000
3300pF
Temperature(Degree C)
10
Dissipation factor(%)
at 1kHz
Frequency (kHz)
3
Dissipation factor(%)
8
6
4
2
0
-60 -40 -20 0 20 40 60 80 100120 140
0.010uF
0.10uF
2
0.10uF
0.010uF
1
3300pF
0
1
10
100
1000
10000
Temperature(Degree C)
Frequency (kHz)
1.E+12
Insuration resistance(ohm)
at DC 10V
10000
0.010uF
1.E+11
Impedance(ohm)
1000
0.10uF
1.E+10
1.E+09
1.E+08
1.E+07
1.E+06
100
10
0.10uF
3300pF
0.010uF
1
0.1
0.01
10
100
1000
10000
100000
-60 -40 -20 0 20 40 60 80 100120 140
Temperature(Degree C)
Frequency (kHz)
京公网安备 11010802033920号
EEWORLD
