ACR-0551-2183
397 Route 281
Tully, New York 13159
Phone: 315 696-6676
Fax: 315 696 9923
Email: sales@acipower.com
www.acipower.com

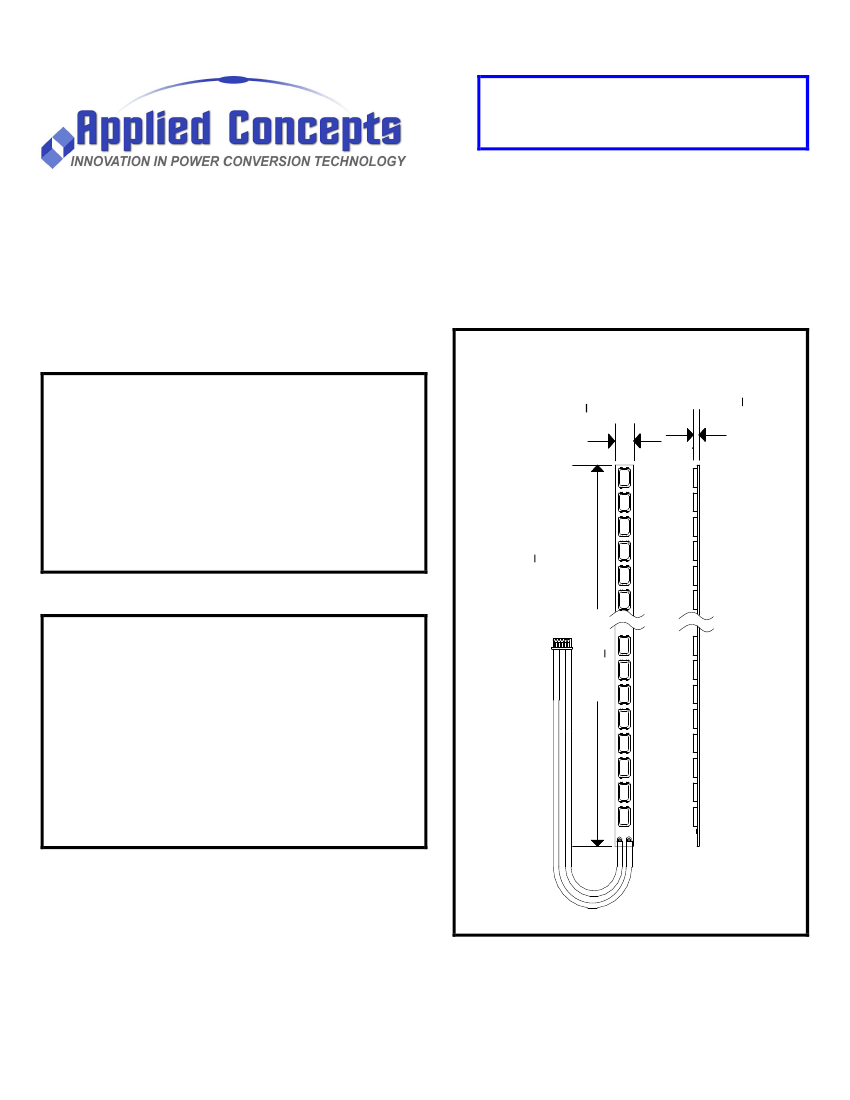

PRODUCT DATA SHEET
PAGE 1 OF 2
(Single Bank, 55V @ 80mA)
5.210 SINGLE BANK LED RAIL
0.130" + 0.005
12/4/13
The ACR-0551-2183 is designed as a replacement for field
replaceable, single rail, single edge lit 8.4 LED displays.
The rail requires the use of a constant current source to
properly drive the LED s.
The LED rail is compatible with any of ACI s I-Drive series
of LED Drivers.
CON1
Weight = 10 grams
Altitude = 35,000 Ft maximum
Humidity < 95% non-condensing
Size (L x W x H) = 5.210 IN x 0.130 IN x .072 IN
PCB thickness = 0.032 IN
RoHS compliant
Page 1 of 2
5.210" + 0.005
MECHANICAL / ENVIRONMENTAL
Cable Length from Rail to Pins: 11.0" .125
+
0.072" + 0.005
GENERAL DESCRIPTION
ACR-0551-2183
397 Route 281
Tully, New York 13159
Phone: 315 696-6676
Fax: 315 696 9923
Email: sales@acipower.com
www.acipower.com

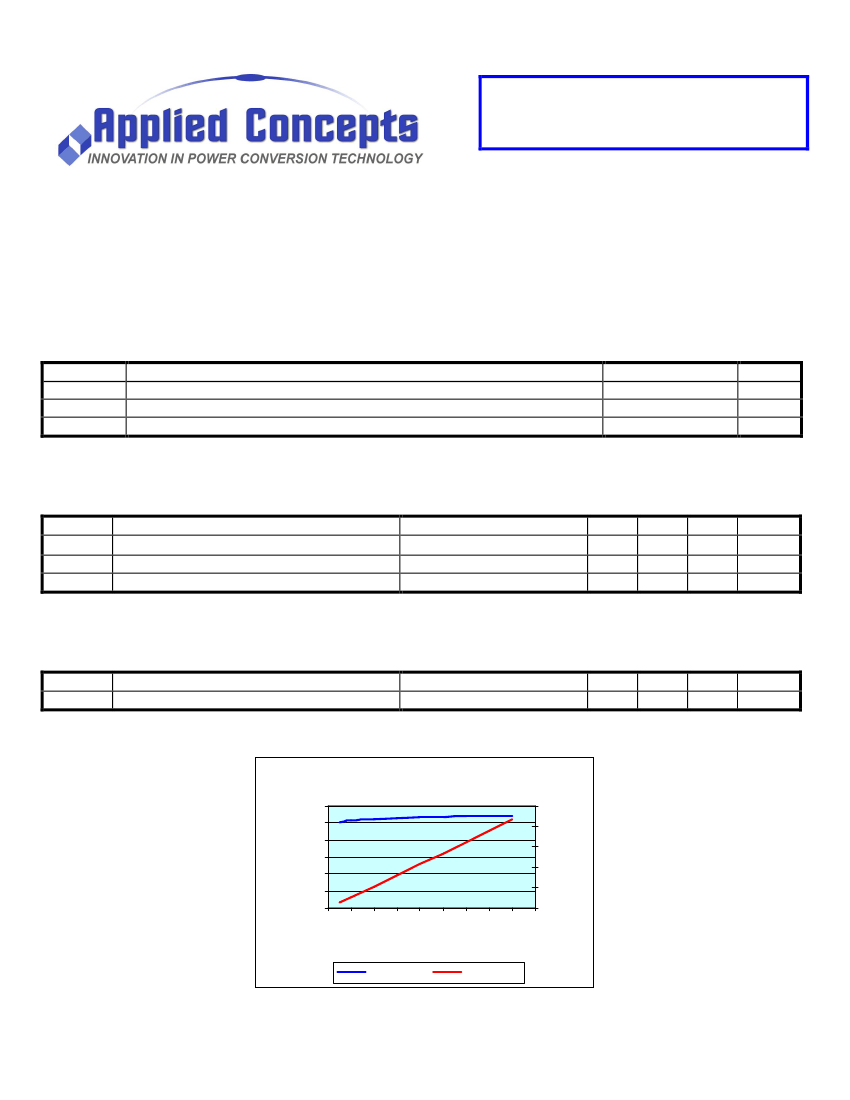

PRODUCT DATA SHEET
PAGE 2 OF 2
MAXIMUM RATINGS
Symbol
Tled
Tstg
Ifwd
Parameter
Operating temperature of LED edge light (light rail contact)
LED Rail storage temperature
LED forward current
Value
-40 to +100
-40 to +100
88
12/4/13
Unit
Deg-C
Deg-C
mA
LED OPTICAL CHARACTERISTICS
LED Manufacturer specifications for reference purpose only
Symbol
Parameter
Luminance Intensity Rank
Iv
X
White X coordinate
Y
White Y coordinate
Test Conditions
Ifwd = 93mA
Min
14.1
Typ
-
0.243
0.220
Max
18.1
Unit
cd
-
-
LED RAIL ELECTRICAL CHARACTERISTICS
Ifwd = 80mA (1 Bank per Rail, 1 Rail per Display), Tled = +75Deg-C (LED s without heat sinking to the display)
Symbol
Parameter
Test Conditions
Min
Typ
Max
Vfwd
LED rail forward voltage drop
49
55
61
Unit
Vdc
TYPICAL LED RAIL PERFORMANCE GRAPHS
Rail Voltage & Pow er vs. LED drive current
(Ta = +25Deg-C)
60.00
50.00
40.00
30.00
20.00
10.00
0.00
0
10 20 30 40 50 60 70 80 90
LED current (m A)
Rail Voltage
Rail Pow er
5.0
Rail power
(Watts)
4.0
3.0
2.0
1.0
0.0
LED Voltage
(Volts)
Page 2 of 2
