CERAMIC CAPACITORS
High Value Multilayer Ceramic Capacitors (High dielectric type)
JMK042BJ223MC-W
Features
Item Summary
6.3V, X5R, 0.022μF, ±20%, 01005
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 40000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
Dielectric Loss Tangent
Resistance
RoHS Compliance
Halogen Free
Soldering Method
01005/0402
6.3V
0.022μF
±20%
X5R/-
-55 to +85℃/-
±15/-%
10%MAX
100 MΩ・μF min.
Yes
Yes
Reflow
External Dimensions
L
W
T
e
0.4mm ±0.02
0.2mm ±0.02
0.2mm ±0.02
0.1mm ±0.03
2015.07.09
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○JMK042BJ223MC
6.3V 0402 X5R 0.022uF +/- 20% t=0.22mmMAX
6.3V 01005 X5R 0.022uF +/- 20% t=0.009inchMAX

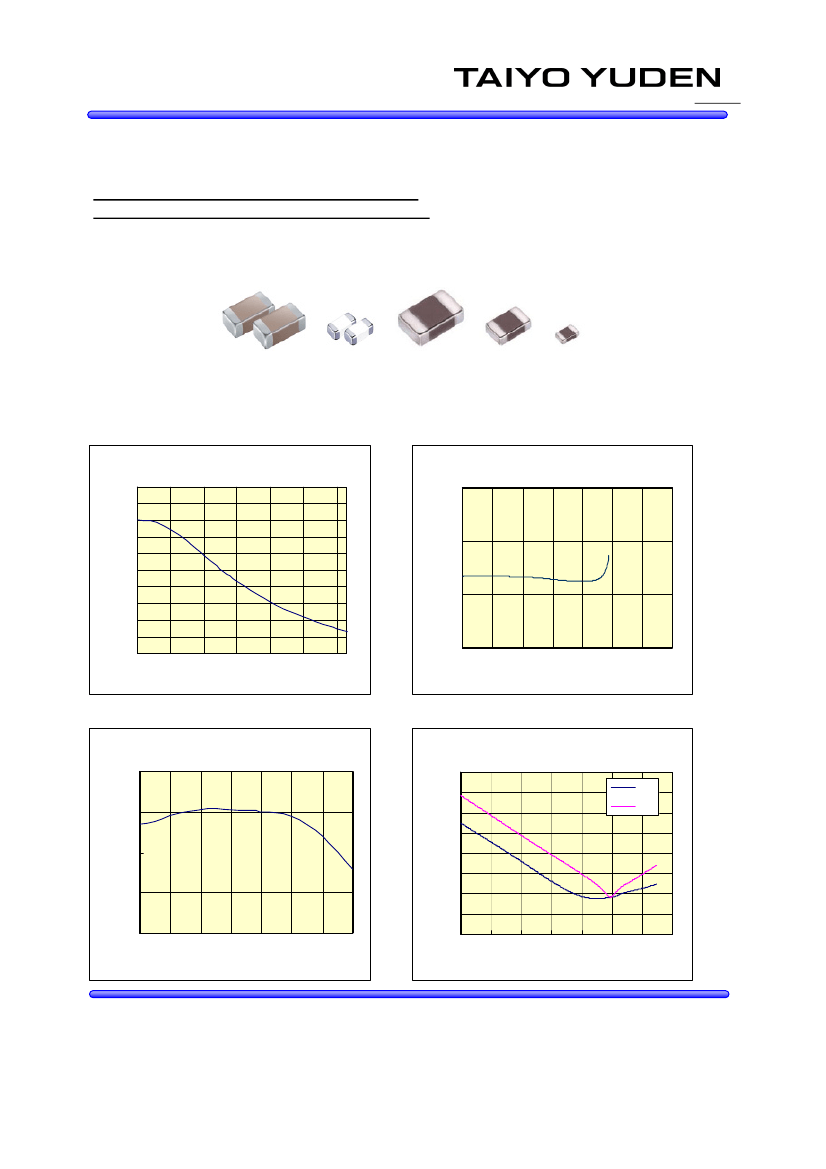

-Electrical Characteristics Data-
13SC10
RoHS compliance product
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
1
dC/C[%]
JMK042BJ223MC
DC Bias Char.
1
JMK042BJ223MC
Capacitance Freq.
Capacitance[uF]
0.1
0.01
2
3
4
5
DC Bias Voltage[V]
6
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
JMK042BJ223MC
Capacitance Temp.
10
100000
10000
0
dC/C[%]
1000
Z,ESR[OHM]
100
10
1
0.1
0.01
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
0.001
0.001 0.01
JMK042BJ223MC
Impedance,ESR Freq.
ESR
Z
-10
-20
0.1
1
10 100 1000 10000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
