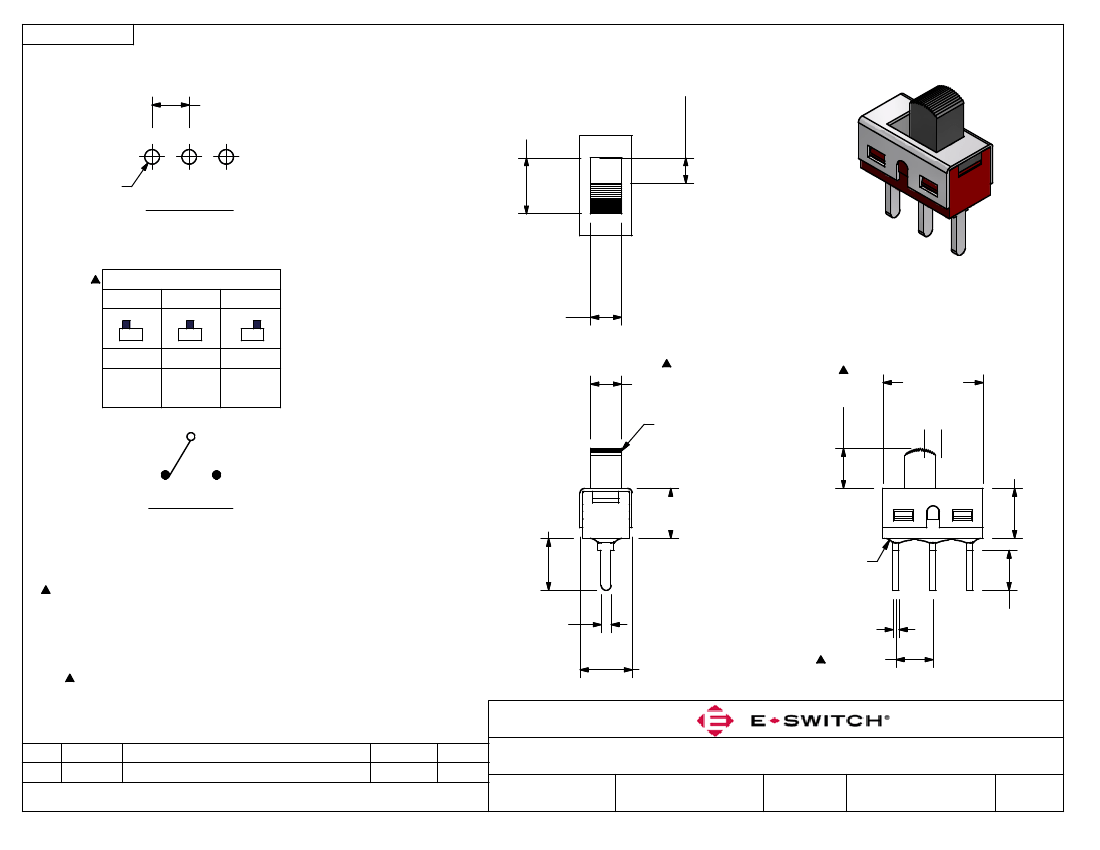

SHEET 1 OF 1
TRAVEL TO MAKE
2.16
[.085 in]
4.70
[.185 in]
6.10
[.240 in]
n
1.85
[.073 in]
P.C. MOUNTING
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
3.86
[.152 in]
ON
2-1
NONE
OPEN
ON
o
ISOMETRIC
2-3
3.86
[.152 in]
NYLON, UL 94VO
5.08
[.200 in]
12.70
[.500 in]
POS.
1 3
6.35
[.250 in]
2
1
3
CIRCUIT: SPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: GOLD
5. RATING: 0.4 (VA) MAX. @20V MAX.
6. ELECTRIC LIFE: 30,000 MAKE AND BREAK CYCLES.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10. DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT
6.60
[.260 in]
6.35
[.250 in]
EPOXY SEAL
1
1.27
[.050 in]
6.60
[.260 in]
1
.76
[.030 in]
4.70
[.185 in]
2
3
5.10
[.201 in]
C
REV
17512
PCR NO
REVISED AND REDRAWN
DESCRIPTION
7/26/07
DATE
BF
BY
TITLE
500SSP1S1M2REA
DATE
DR
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
2:1
DWG
REV
7/26/2007
BF
T511004
C
