1551-2-82-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1551-2-82-2

1551-2-82-2: DescriptionBoard Connector, 82 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject; CategoryThe connector The connector; File Size334KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1551-2-82-2 Overview

Board Connector, 82 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject

1551-2-82-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307222858
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.319 inch
body length	2.765 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	1551
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	82

Preview

Download Datasheet

View All

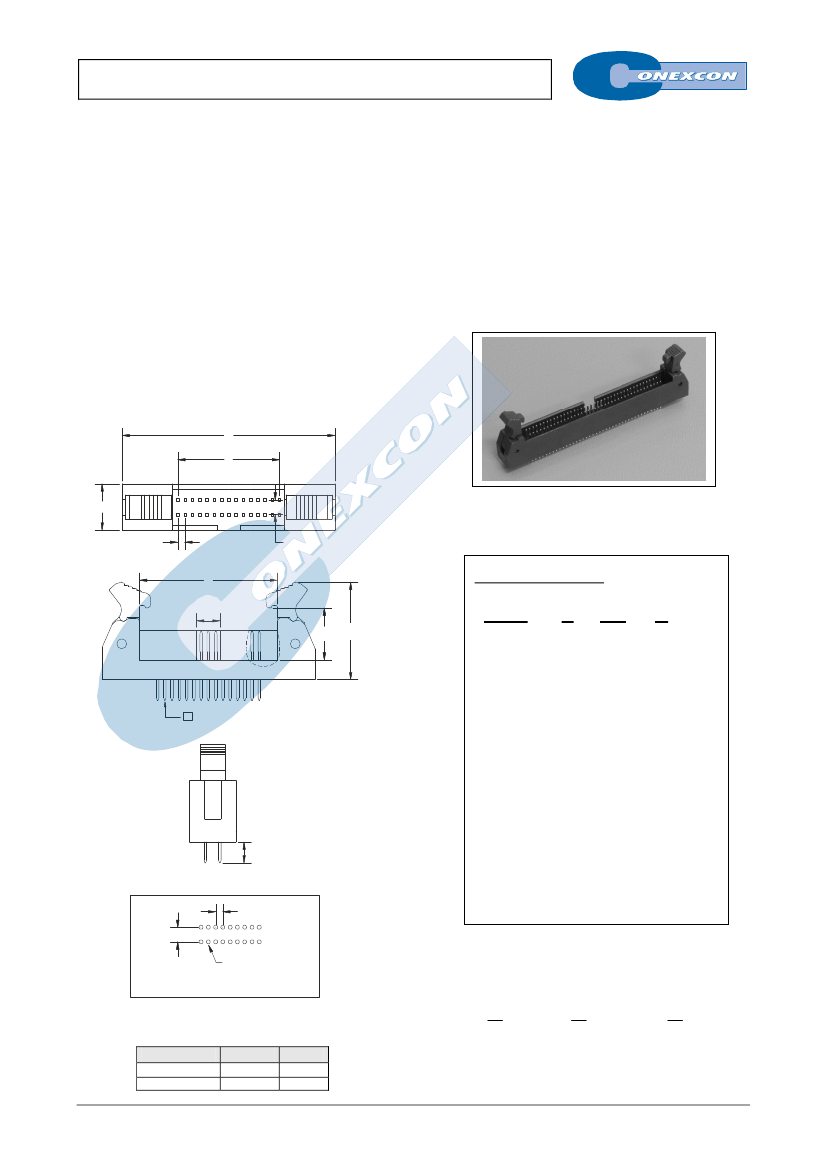

D/ ROW TOP ENTRY HEADER EJECT LATCH

1551 SERIES.

1.27 x 2.54 mm. (0.050 x 0.100”) pitch.

General Features

Electrical Features



Available in 10, 20, 26, 30, 34, 40, 50, 60, 68, 70, 80,

90 and 100 circuits

Mates with IDC connectors 1541 series

Gold plated 0.46 mm square pin (2 rows 2.54 x1.27 )

Fully shrouded with polarized slot. With eject latch



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 250 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: LCP, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features

Durability: 50 Cycles

Dimension Information

8.1

1.27

4.1

2.54

Ordering Information:

1551 -

T-

XX-

1. Connector Series

2. (T) Contact Plating

0.46x0.46



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

3. (XX) Number of circuits

3.2

Available in 10 through 100 circuits

4. (S) Latch Type

S =

Short latch

S =

Long latch

1.27

2.54

ø 0.75±0.05

RECOMMENDED HOLE PATTERN

Dimensions:

(In mm.)

1.27





















1.27



 

5.11











1.27



 

18.15





DIMENSIONS

Short latch

Long latch

17.00

18.50

8.00

10.65

(XX) = Number of circuits

A-XX
