BH4S-50TB-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BH4S-50TB-U

BH4S-50TB-U: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle; CategoryThe connector The connector; File Size239KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BH4S-50TB-U Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle

BH4S-50TB-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166171033
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.327 inch
subject depth	0.232 inch
body length	1.565 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e3
Manufacturer's serial number	BH4
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

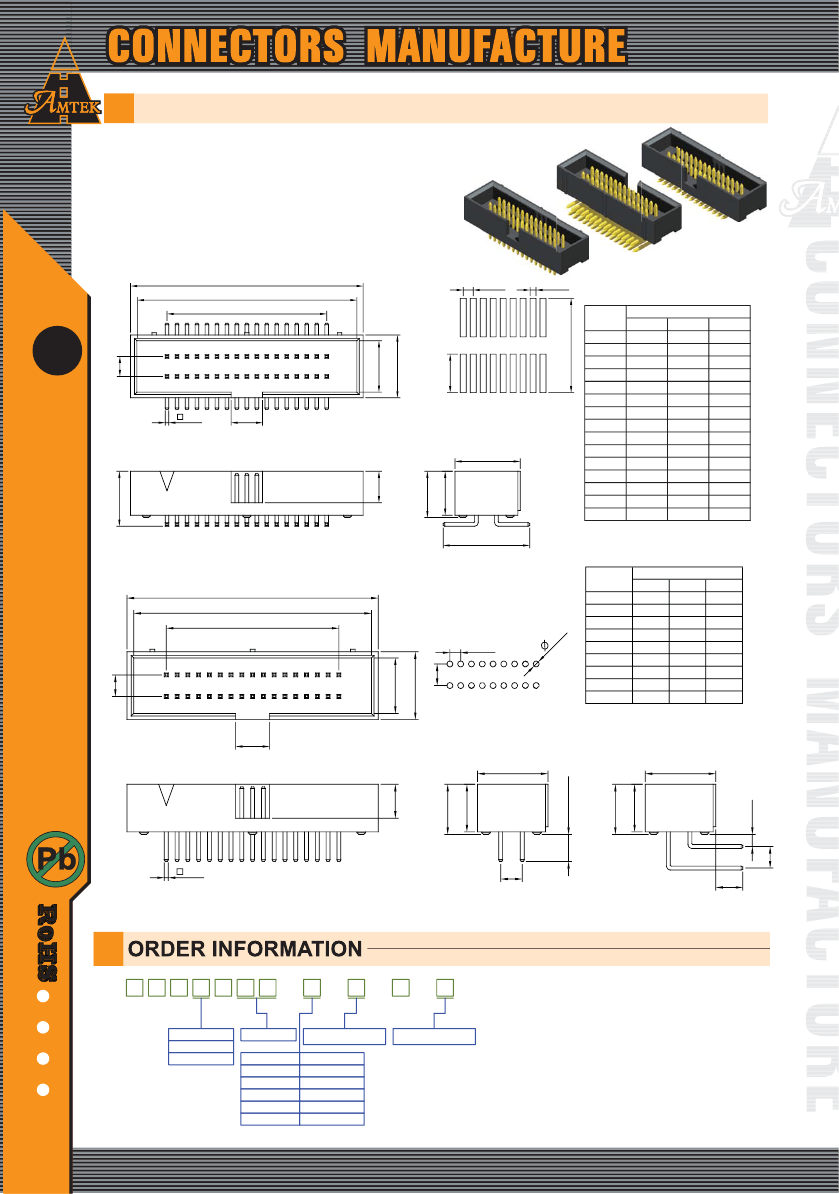

Box Header 1.27x2.54mm SMT/Right Angle/Straight Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

No. of

Contacts

(SMT/Straight)

Dinensions

11.81

10.21

2.54

13.08

11.48

3.81

14.35

12.75

5.08

15.62

14.02

6.35

16.89

15.29

7.62

18.16

16.56

8.89

19.43

17.83

10.16

20.70

19.10

11.43

24.51

22.91

15.24

27.05

25.45

17.78

29.59

27.99

20.32

33.40

31.80

24.13

39.75

38.15

30.48

46.10

44.50

36.83

48.64

47.04

39.37

ox Header 1.27mm

B H 4 X - X X

S:Straight

(Right Angle)

No. of

Contacts

100

11.81

13.08

14.35

15.62

16.89

29.59

33.40

58.80

71.50

Dinensions

10.21

2.54

11.48

3.81

12.75

5.08

14.02

6.35

15.29

7.62

27.99 20.32

31.80 24.13

57.20 49.53

69.90 62.23

No. of Contacts

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

B:Black Insulator

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

U:RoHS + Nylon 6T

R:Right Angle

M:SMT

Standard Recommended

2-29

www.amtek-co.com.tw
