38-RRG381C1100: DescriptionSilver Plated Copper; File Size65KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

38-RRG381C1100 Overview

Silver Plated Copper

Preview

Download Datasheet

View All

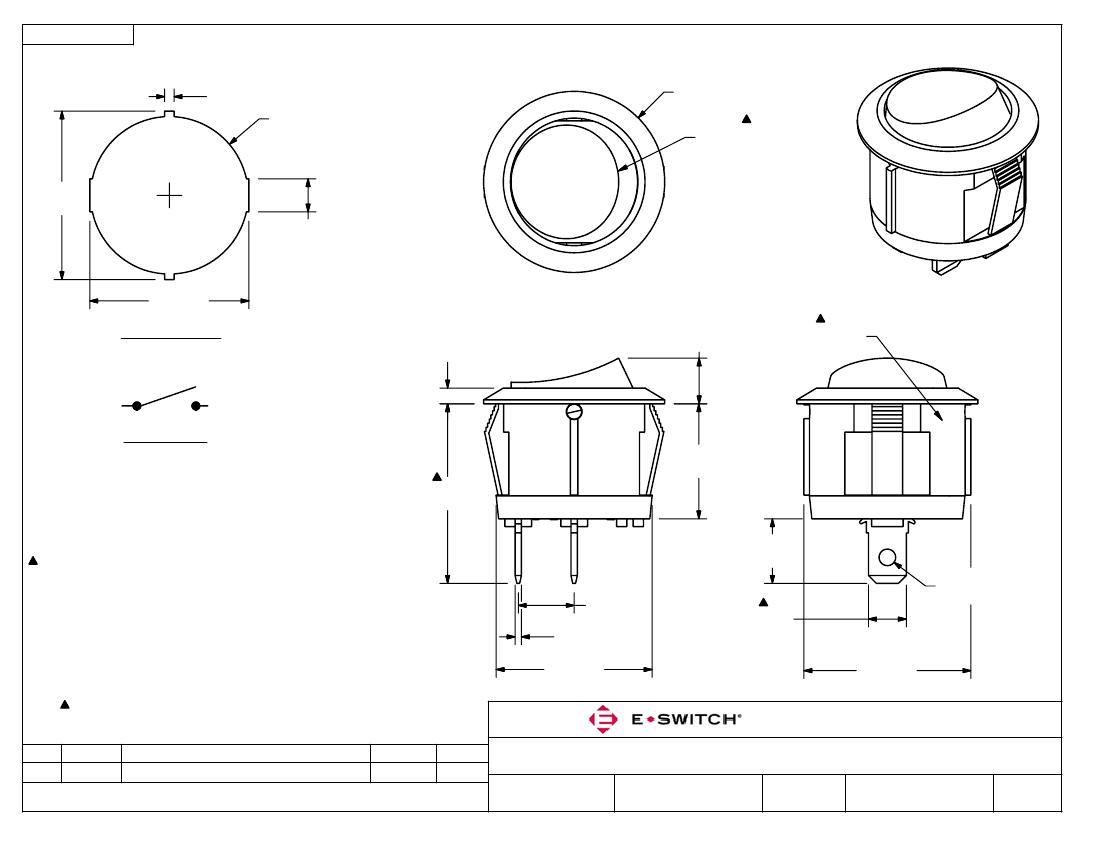

SHEET 1 OF 1

23.00

[.906 in]

1.20

[.047 in]

20.00

[.787 in]

ACTUATOR COLOR

BLACK

21.40

[.843 in]

4.20

[.165 in]

20.20

[.795 in]

PANEL MOUNTING

2.00

[.079 in]

5.80

[.228 in]

HOUSING COLOR

BLACK

14.60

[.575 in]

CIRCUIT: SPST

NOTE:

1. DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X =

0.4

X.XX =

0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. CONTACT RATING: 16A @ 125VAC (UL, cUL)

10A @ 250VAC (UL, cUL)

1/3HP 125/250VAC (UL,cUL)

10(4)A 250VAC, 1E4 T125/55 (VDE)

6. CONTACT RESISTANCE: 35mΩ MAX. @ 50VAC

7. INSULATION RESISTANCE: 1000MΩ MIN. @ 500VAC

8. DIELECTRIC STRENGTH: 1,500VAC FOR 1 MINUTE

9. ELECTRICAL LIFE: 6,000 CYCLES [UR, cUR, NOM]

10,000 CYCLES [ENEC14, SEMKO]

10. OPERATING TEMPERATURE: -20°C TO 105°C [UR, cUR, NOM]

-20°C TO 125°C [ENEC14, SEMKO]

11. DENOTES CRITICAL PARAMETER

12. 2002/95/EC (ROHS) COMPLIANT

REV

20562

PCR NO

New Release

DESCRIPTION

22.80

[.898 in]

8.20

[.323 in]

7.10

[.280 in]

.80

[.031 in]

19.80

[.780 in]

4.80

[.189 in]

[.083 in]

2.10

21.20

[.835 in]

4/25/12

DATE

TITLE

SCALE

RRG381C1100

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

4/25/2012

38-RRG381C1100
