221S0-F26-55 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 221S0-F26-55

Preview

221S0-F26-55: DescriptionBoard Connector, 6 Contact(s), Female, Straight, Crimp Terminal, M2x0.4, Plug; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerNICOMATIC

Download Datasheet Parametric View All

221S0-F26-55 Overview

Board Connector, 6 Contact(s), Female, Straight, Crimp Terminal, M2x0.4, Plug

221S0-F26-55 Parametric

Parameter Name	Attribute value
Objectid	303858819
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.217 inch
subject depth	0.307 inch
body length	1.969 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0C6
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	221S
Mixed contacts	YES
Installation option 1	M2X0.4
Installation option 2	HEX HEAD
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

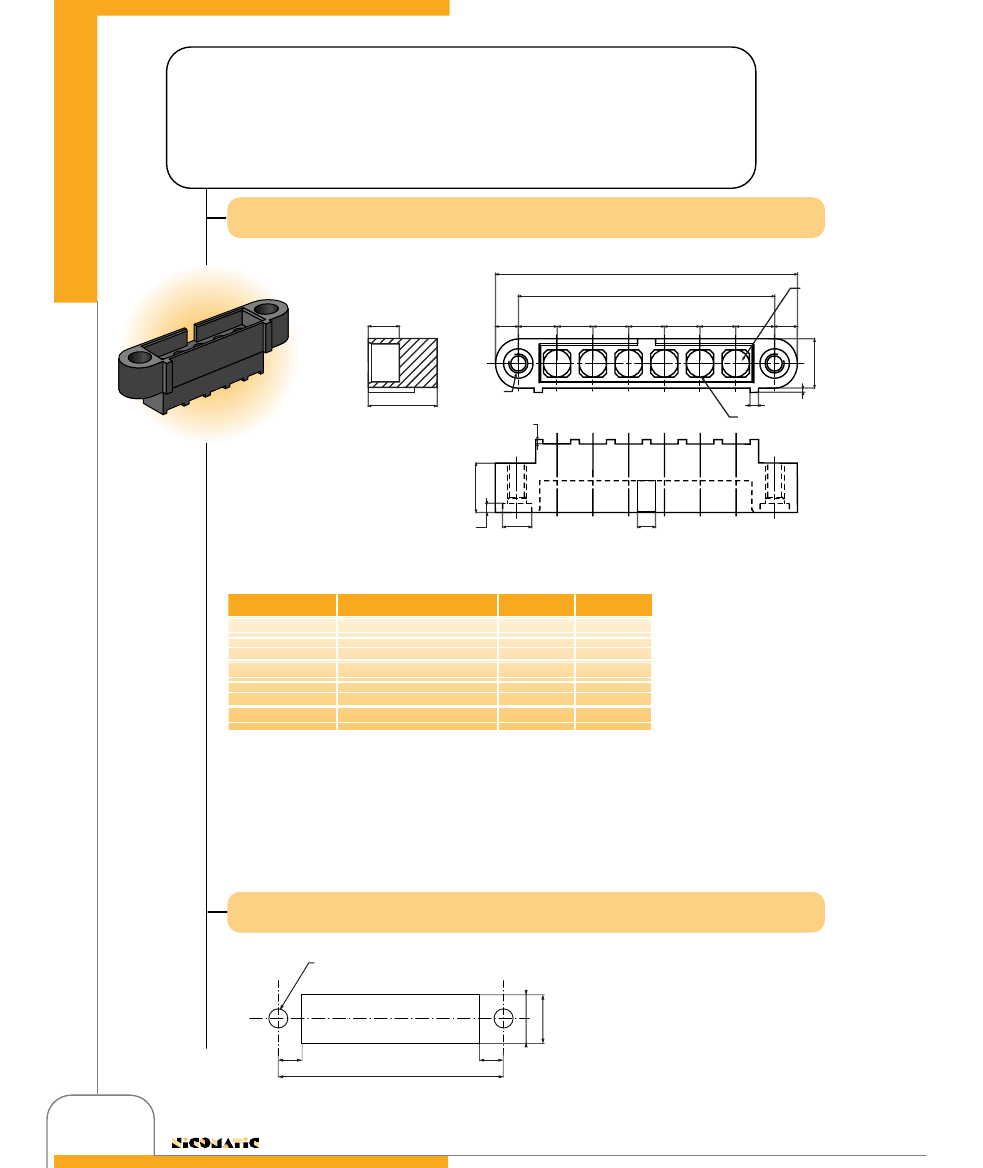

Micro-connector CMM 220

series with cavities for

special contacts

MALE ON CABLE

A

B

Cavity n¡ 1

3.5

2.5

4.5

4

4.5

2.5

1

5.5

M2

7.8

0.9

0.5

1

From 2 to 12 cavities

5.5

1

ø 3.2

2

Dimensions in mm

PART NUMBER

NUMBER OF CAVITIES

A

B

221S 0 Fxx - 22

221S 0 Fxx - 33

221S 0 Fxx - 44

221S 0 Fxx - 55

221S 0 Fxx - 66

4

6

8

10

12

26

34

42

50

58

21

29

37

45

53

xx : fixing, refer to page 25.

For special contacts and pcb lay out : please refer to pages 37 to 38, 42.

Other sizes are available upon request, please consult us.

PANEL MOUNTING

2 holes ø 2.2 min.

=

2

B

2

Tol.

+

0.1

-

20

=

5.7
