BB060-24-A-L-C: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BB060-24-A-L-C Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,

BB060-24-A-L-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166975523
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.12 inch
subject depth	0.128 inch
body length	0.388 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Durability	100 Cycles
maximum insertion force	1.0008 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BB060
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9624 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
Evacuation force-minimum value	.10008 N

Preview

Download Datasheet

View All

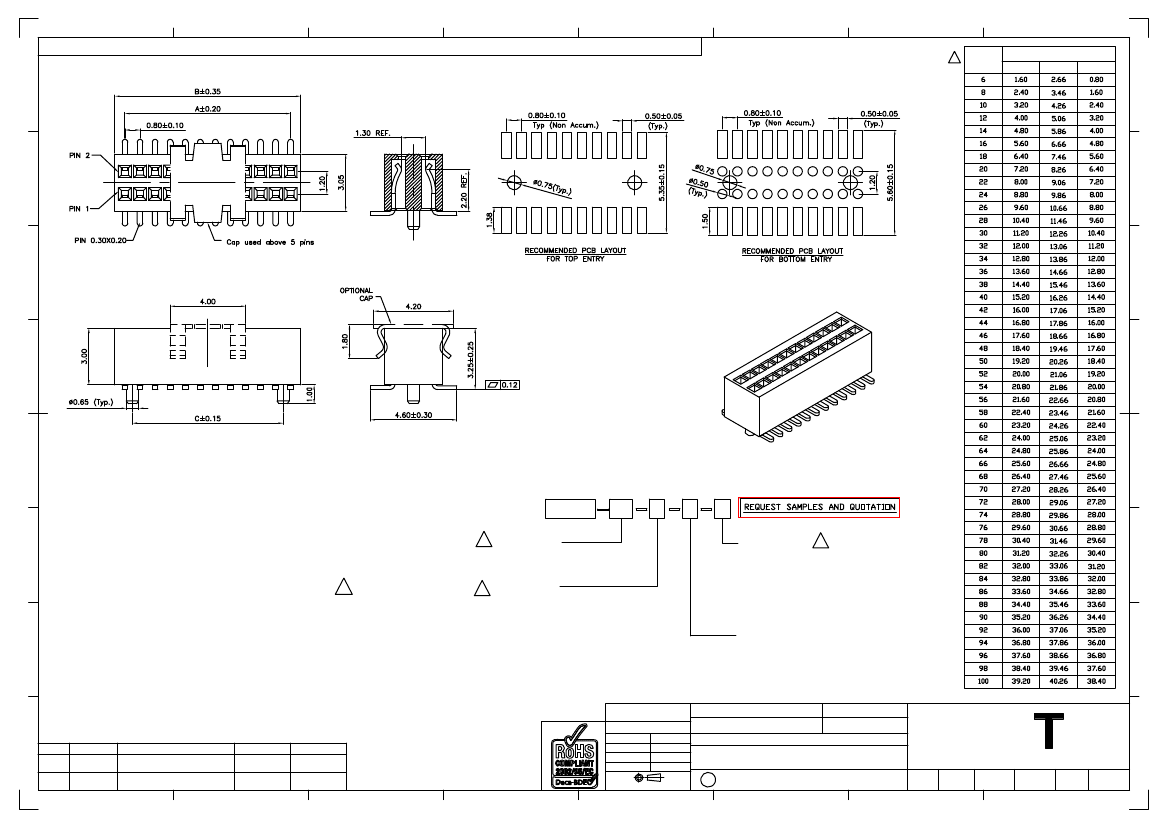

Global Connector Technology Ltd. - BB060: 0.8mm x 1.2mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, VERTICAL, DUAL ENTRY

CONTACTS

DIMENSIONS

Ordering Grid

BB060

SPECIFICATIONS

规格

B No. of Contacts

06 to 100

(00 = 100)

Contact Plating

A = Gold Flash

(Standard)

Packing Options B

C = Tape and Reel with Film (Standard)

B = Tape and Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

CURRENT RATING

电流额定值：

0.5 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 500 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 200 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BB080

DETAIL

REV

DATE

DRAWING

RELEASE

18/09/09

AMENDMENT TO PACKING OPTIONS,

DIMENSION TABLE & NO. OF CONTACTS

Insulator Material

L = LCP (Standard)

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

X.°± 5.0°

X.X°± 3.0°

X.XX°± 2.0°

BB060

Description:-

18 SEP 09

AMENDMENT TO

PLATING OPTIONS

CHANGES TO

SPECIFICATION

X.XXX ± 0.10 X.XXX°± 1.0°

Third Angle Projection

0.8mm x 1.2mm PITCH SOCKET, DUAL ROW,

SURFACE MOUNT, VERTICAL, DUAL ENTRY

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

28/09/09

22/12/09

30/12/09

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

ASE

E & OE

Sheet No.

1/1
