BD030-06-A-L-0200-0300-L-G: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD030-06-A-L-0200-0300-L-G Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle,

BD030-06-A-L-0200-0300-L-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304460449
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.134 inch
subject depth	0.098 inch
body length	0.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Manufacturer's serial number	BD030
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

3

1

2

4

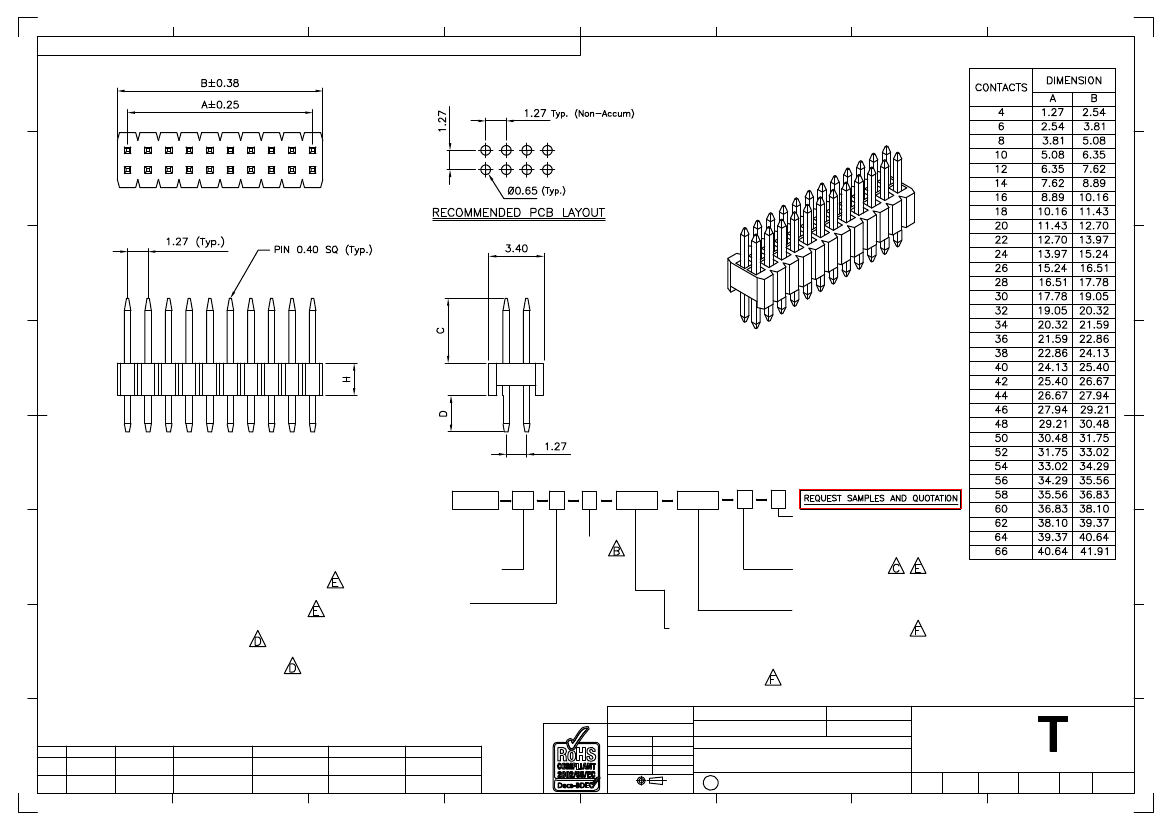

Global Connector Technology Ltd. - BD030: 1.27mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, VERTICAL

A

5

6

7

8

A

B

C

D

E

SPECIFICATIONS:

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

OPTIONS

可选物料

: POLYESTER

聚酯

,

LCP, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = A, G, B, L, F)

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

,

NYLON 6T, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = K)

SOLDERING PROCESS

可焊性

:

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

NYLON 6T (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BD050

BD055

BD057

BD060

BD064

BD065

BD067

BD091

BD092

BD093

By

DETAIL

REV

DATE

VJ

DRAWING

RELEASE

A

21/12/07

PN

ORDER GRID

AMENDMENT

B

17/04/09

PN

AE

INSULATOR MATERIAL

STANDARD INSULATOR

SOLDER TEMP & MATES

UPDATED FOR SPECIFIC

WITH INFO. UPDATED

MATERIAL CHANGED

INSULATOR HEIGHTS

E

Ordering Grid

BD030

XX

X

XXXX

X

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Insulator H = A, G, B, L, F)

N = Nylon 6T (Insulator H = K)

Dimension D (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

F

No. of Contacts

04 to 66

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Insulator

Height 'H'

K = 1.0mm

A = 1.5mm

G = 1.7mm

B = 2.0mm

L = 2.5mm

F = 3.0mm

Standard = 2.5mm

F

G

Dimension C (1/100mm)

(Post Height)

Standard - 2.00mm = 0200

Standard - 3.50mm = 0350

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Part Number:-

G

Tolerances

(Except as noted)

Date:-

Dimensions in mm

SA

AMENDMENT TO

STANDARD DIMENSIONS

BD030

Description:-

21 DEC 07

H

X.°±5°

.X°±2°

X.X ± 0.20

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

Third Angle Projection

X. ± 0.30

1.27mm PITCH PIN HEADER, DUAL ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

27/04/09

D

27/07/09

E

07/08/09

F

08/12/09

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

F

Drawn by

VJ

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
