SHEET 1 OF 1

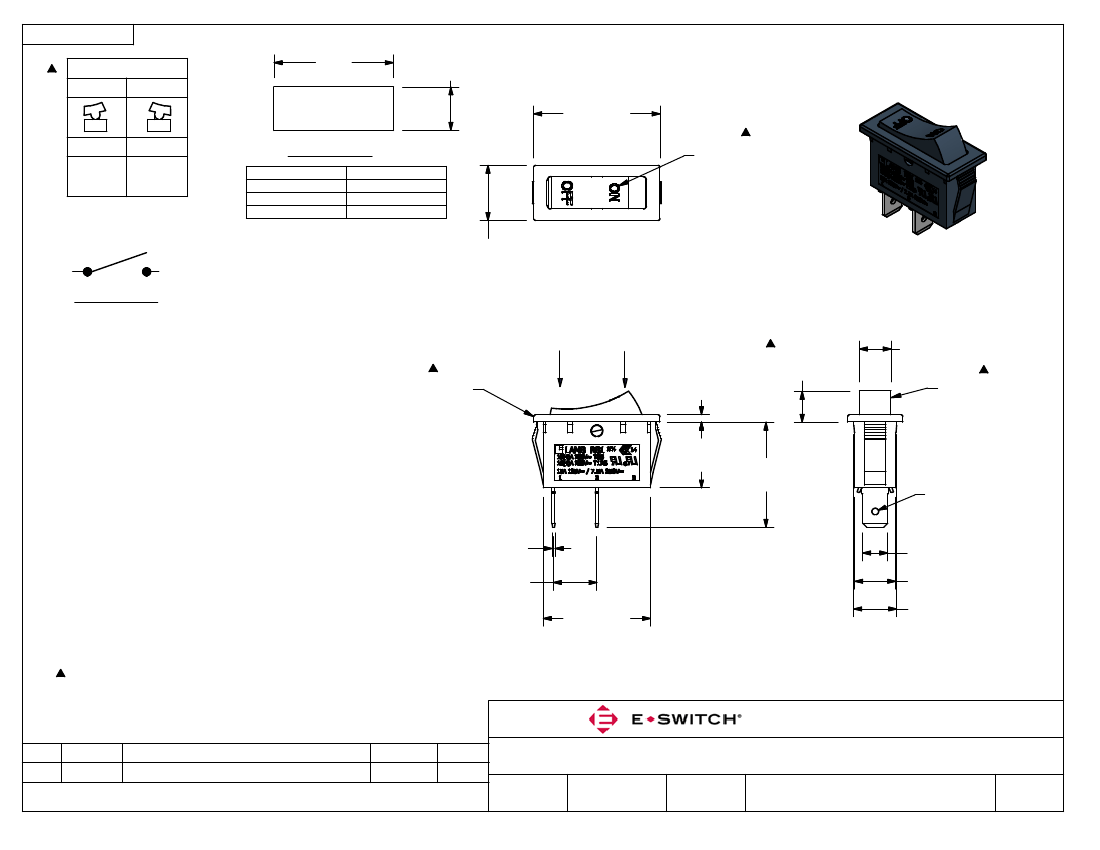

SWITCH FUNCTION
POS. 1
POS. 2
(x)
11.00
- .10
.00
+
[
.433
+.004
- .000
in
]
32.00
[1.260 in]
OFF
NONE
ON
2-1
PANEL CUTOUT
PANEL THICKNESS
O.75 - 1.25
1.25 - 2.00
2.00 - 3.00
(x)
30.0
30.4
30.7
MARKING (3)
ON-OFF VERTICAL
COLOR: WHITE
14.00
[.551 in]
1
2
CIRCUIT: SPST
MAINTAINED
POS. 1
POS. 2
1.90
[.075 in]
7.87
`
.50
[.310
`
.020
in]
8.00
[.315 in]
ACTUATOR COLOR:
BLACK
BODY COLOR:
BLACK
NOTE:
1. DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X =
±
0.4
X.XX =
±
0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. CONTACT RATINGS:
ANSI/UL 1054 AND CAN/CSA C22.2 NO.55 (E194579):
15A @ 125VAC [cUR
US
]
7.5A @ 250VAC [cUR
US
]
EN 61058-1:2002+A2 (SE/09138-1):
16(4)A 250V~ 1E4 T125/55 [ENEC14, SEMKO]
6. CONTACT RESISTANCE: 35mΩ MAX. @ 50VAC INITIAL
7. INSULATION RESISTANCE: 100MΩ MIN. @ 500VDC
8. DIELECTRIC STRENGTH: 1,500VAC FOR 1 MINUTE
9. ELECTRICAL LIFE: 6,000 CYCLES [cUR
US
]
10,000 CYCLES [ENEC10, SEMKO]
10. OPERATING TEMPERATURE: -20°C TO 85°C [cUR
US
]
-20°C TO 125°C [ENEC14, SEMKO]
11. DENOTES CRITICAL PARAMETER
12. 2002/95/EC (ROHS) COMPLIANT
16.70
[.657 in]
26.70
`
.50
[1.051
`
.020
in]
n
1.70
[.067 in]
1
.80
[.031 in]
11.00
[.433 in]
27.20
[1.071 in]
2
6.30
[.248 in]
10.40
[.409 in]
10.90
[.429 in]
A
REV
21138
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
5/24/13
DATE
EBP
BY
TITLE
RB141C1123
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
5/24/2013
EBP
38-RB141C1123
A
