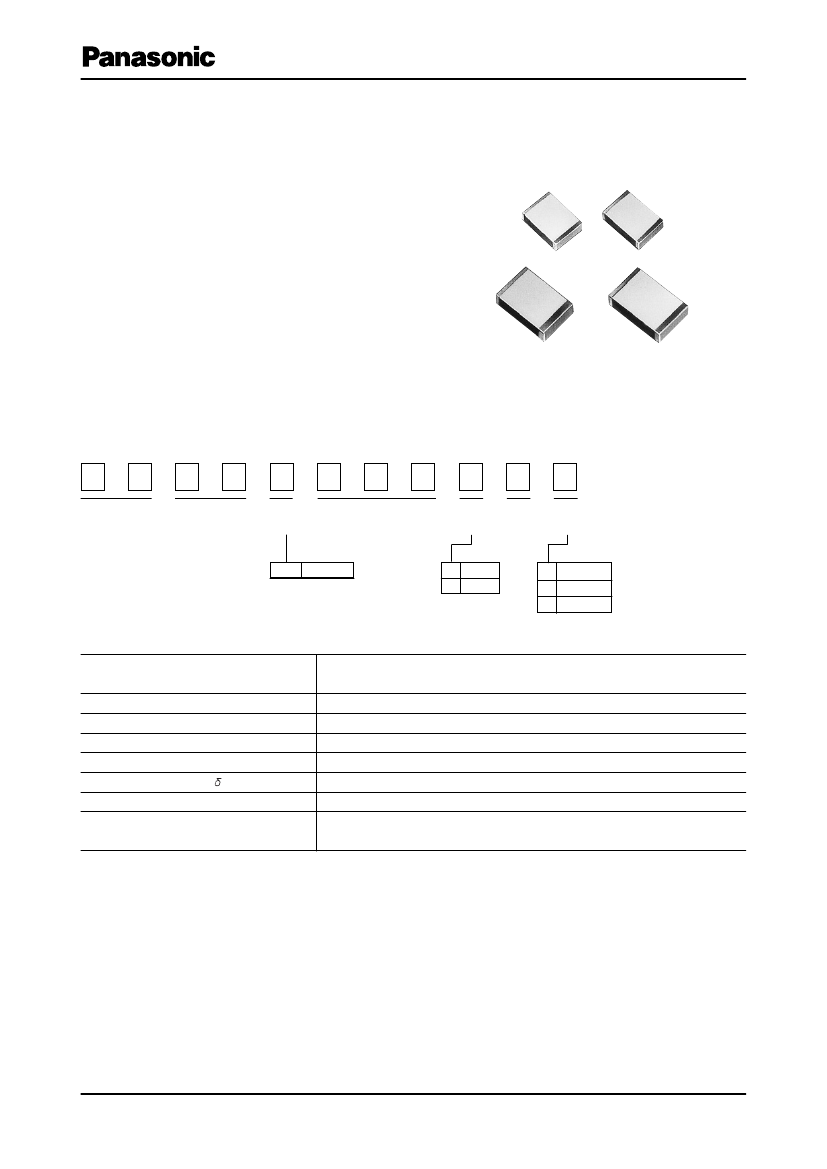

Plastic Film Capacitors
Stacked Metallized PPS Film Chip Capacitor
Type:
ECHU(C)
Stacked metallized PPS film as dielectric with simple
mold-less construction
■Features
•
Small in size
•
Low loss and excellent frequency characteristics
•
For reflow soldering
•
RoHS directive compliant
■Recommended
Applications
•
Time-constant
•
Filtering
•
Oscillation and resonance
•
Resonance circuit for LCD backlight inverter unit
■Explanation
of Numbers
1
2
3
4
5
6
7
8
9
10
11
E
C
H
U
1
Rated voltage
Capacitance
C
Cap. Tol. Suffix
Suffix
Product code
Dielectric &
construction
1
100 VDC
G ±2 %
J ±5 %
Tape width
9 12 mm
V 16 mm
■Specifications
Category temp. range
(Including temperature-rise on unit surface)
Rated voltage
Capacitance range
Capacitance tolerance
Withstand voltage
Dissipation factor (tan )
Insulation resistance (IR)
Soldering conditions
−55 ℃
to
＋105 ℃
100 VDC
0.010 µF to 0.22 µF(E12)
±2 %(G),±5 %(J)
Between terminals : Rated volt. (VDC)
✕
150 % 60 s
tanδ≦0.6 % (20
℃,
1 kHz)
IR≧3000
ＭΩ(20 ℃,
100 VDC, 60 s)
Reflow soldering : 260 ˚C max. and 95 s max. at more than 220 ˚C
(Temp. at cap. Surface)
❈
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,
please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC18 −
Plastic Film Capacitors
■
Construction
■Dimensions
in mm (not to scale)
size
L
W
H
code
E1
4.8
3.3
1.4
E2
4.8
3.3
2.0
E3a
4.8
3.3
2.4
E3
4.8
3.3
2.8
D1
6.0
4.1
1.8
D2
6.0
4.1
2.0
D3
6.0
4.1
2.4
D4
6.0
4.1
2.8
D5
6.0
4.1
3.2
Z
7.1
5.0
❈
Y
7.1
6.3
❈
❈Refer
to the column
“
Rating,Dimensions&Quantity
”
■Taping
Specification for Automatic Mounting
Refer to the page of taping specifications.
■
Rating, Dimensions & Quantity/Reel
●Capacitance
tolerance: ± 2 % (G), ± 5 % (J)
Rated volt. 100 VDC
Cap.(µF)
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
Part No.
ECHU1103□C9
ECHU1123□C9
ECHU1153□C9
ECHU1183□C9
ECHU1223□C9
ECHU1273□C9
ECHU1333□C9
ECHU1393□C9
ECHU1473□C9
ECHU1563□C9
ECHU1683□C9
ECHU1823□C9
ECHU1104□C9
ECHU1124□C9
ECHU1154□CV
ECHU1184□CV
ECHU1224□CV
↑
Dimensions (mm)
Size
Code
L
4.8
4.8
4.8
4.8
4.8
4.8
6.0
6.0
6.0
6.0
6.0
7.1
7.1
7.1
7.1
7.1
7.1
W
3.3
3.3
3.3
3.3
3.3
3.3
4.1
4.1
4.1
4.1
4.1
5.0
5.0
5.0
6.3
6.3
6.3
H
1.4
1.4
2.0
2.0
2.4
2.8
1.8
2.0
2.4
2.8
3.2
2.8
3.0
3.4
3.4
4.0
4.8
Q'ty
E1
E1
E2
E2
E3a
E3
D1
D2
D3
D4
D5
Z
Z
Z
Y
Y
Y
3000
2000
3000
2000
1500
1000
Cap. tol. code
■Recommended
for Land Dimensions (mm)
Land dimensions
Size code
Reflow soldering
A
B
C
E1,E2,E3a,E3
D1,D2,D3,D4,D5
Z
Y
2.6
3.8
4.5
4.5
6.6
7.8
9.0
9.0
3.0
3.8
4.6
5.7
❈
It is not warrantable that you can mount the capacitor without trouble under all the mounting condition when
“Recommender for Land dimensions” is adopted.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC19 −
Chip
ECHU (C) Type
DC100V series
(Stacked Metallized Film)
Frequency Characteristics
10
Electrical Characteristics <Typical Data >
Temperature Characteristics
Capacitance change(%)
Capacitance change(%)
10
5
0
0.01uF,0.068uF,0.22uF
at 1kHz
5
0.22uF
0
-5
-10
0.068uF
0.01uF
-5
-10
-60 -40 -20
0
20 40 60 80 100 120 140
1
10
100
1000
Temperature(Degree C)
Frequency(kHz)
5
at 1kHz
Dissipation factor(%)
10
8
6
4
2
0
0.22uF
0.068uF
0.01uF
Dissipation factor(%)
4
3
2
1
0.01uF,0.068uF,0.22uF
0
-60 -40 -20
0
20 40 60 80 100 120 140
1
10
100
1000
Temperature(Degree C)
Frequency(kHz)
100
0.01uF
0.068uF
0.22uF
0.01uF
Insulation resistance(ohm)
1.E+12
1.E+11
1.E+10
1.E+09
1.E+08
1.E+07
1.E+06
at DC100V
Impedance(ohm)
10
1
0.1
0.01
0.068uF
0.22uF
-60 -40 -20 0
20 40 60 80 100 120 140
100
1000
10000
100000
Temperature(Degree C)
Frequency(kHz)
ECHU (C) Type
DC100V series
(Stacked Metallized Film)

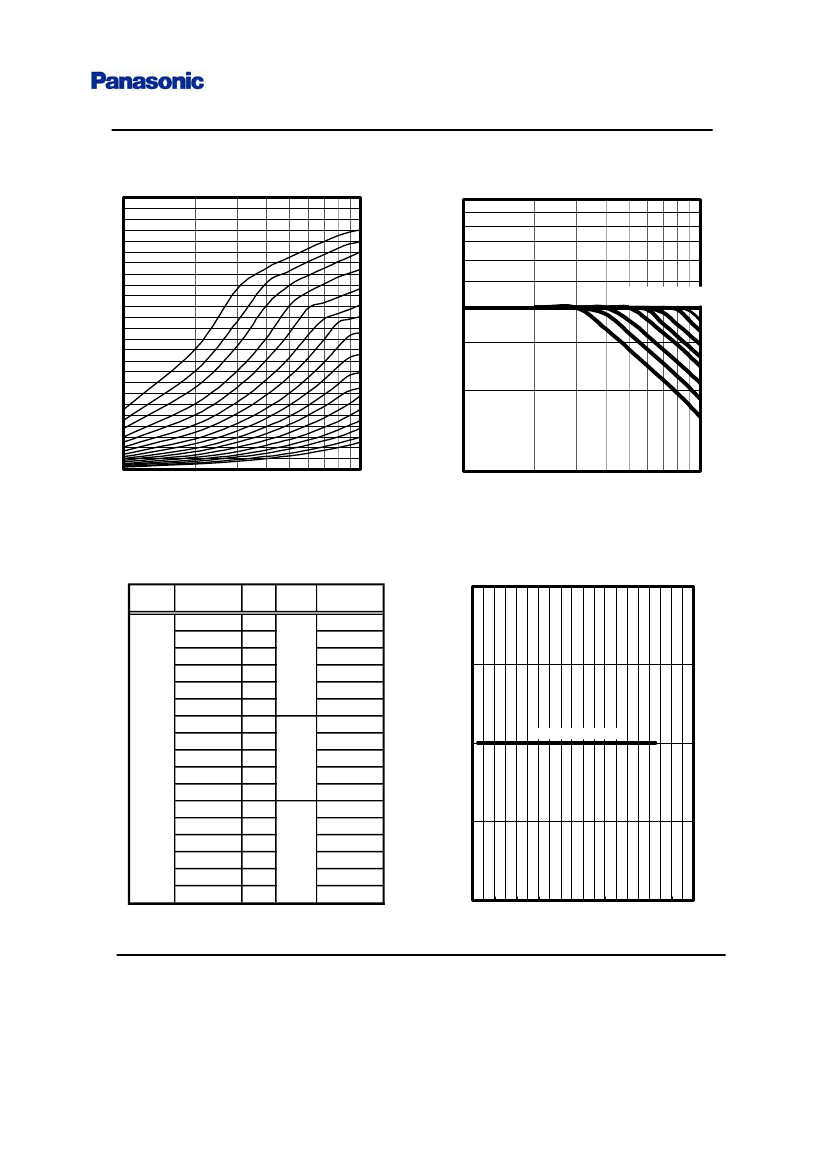

Permissible Voltage
Applicable Specifications
Permissible Current
2.5
0.22uF
0.18uF
0.15uF
0.12uF
0.1uF
0.082uF
0.068uF
0.056uF
0.047uF
0.039uF
0.033uF
0.027uF
0.022uF
0.018uF
0.015uF
0.012uF
0.01uF
100
(at sine wave)
2.0
Effective value (Arms)
Effective value (Vrms)
1.5
0.01uF to 0.027uF
0.033uF
to 0.056uF
0.068uF
0.082uF
0.1uF
0.12uF
0.15uF
0.18uF
0.22uF
1.0
0.5
0.0
10
10
Frequency(kHz)
100
10
Frequency(kHz)
100
Pulse Handling Capability (dv/dt)
(Max 10000cycles)
Rating Capacitance
code
Voltage Value(uF)
0.010
0.012
0.015
0.018
0.022
0.027
0.033
DC
100V
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
100
130
180
dV/dt
(V/us)
Current
(0-P)
(A)
1.80
2.16
2.70
3.24
3.96
4.86
4.29
5.07
6.11
7.28
8.84
8.20
10.00
12.00
15.00
18.00
22.00
Voltage Derating by Temperature
200
150
DC Rated Voltage (V)
100
0.01uF to 0.22uF
50
0
-60 -40 -20 0
20 40 60 80 100 120 140
Surface Temperature of Capacitor(DegreeC)
*Please consult Panasonic if your condition exceeds the above
*Permissible voltage graph is the case of sine waveform. When you use this product, peak voltage must not exceed DC rated voltage.
*The current(0-P) value is calculated using nominal capacitance.
