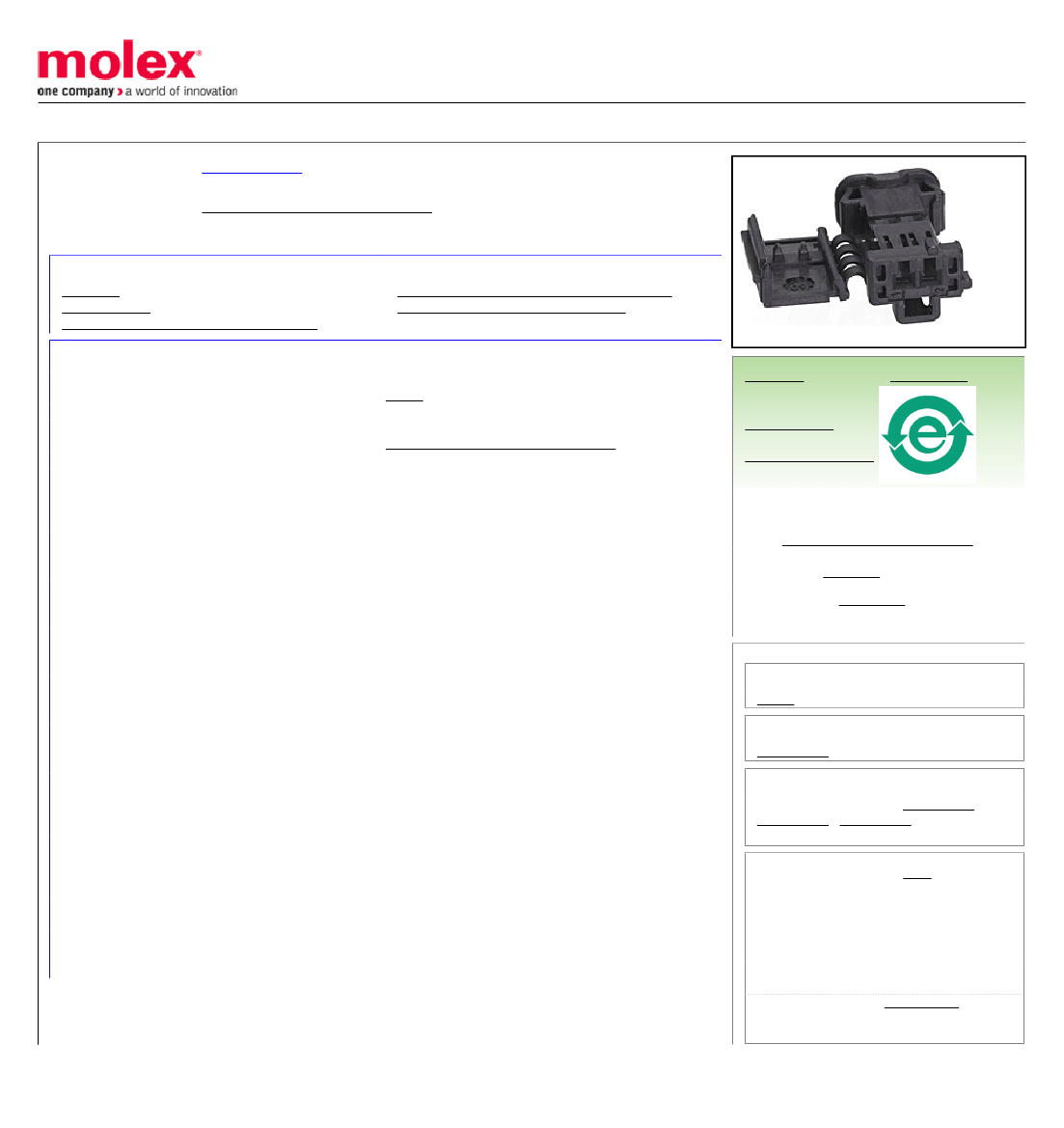

010009321: DescriptionNSCC single part, Unsealed, 1.50mm, Female Housing, 3.33mm Pitch NSCC; File Size49KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

010009321 Overview

NSCC single part, Unsealed, 1.50mm, Female Housing, 3.33mm Pitch NSCC

Preview

Download Datasheet

View All

This document was generated on 10/09/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

98817-1021

Active

NSCC - New Standard Casing Contact

NSCC single part, Unsealed, 1.50mm, Female Housing, 3.33mm Pitch NSCC, Wire to

Wire, 2 Circuits, Black

Documents:

3D Model

Drawing (PDF)

Product Specification PS-98821-001 (PDF)

Application Specification AS-98821-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

General

Product Family

Series

Application

Application Tooling Part Link

Overview

Product Name

UPC

Crimp Housings

98817

Power, Wire-to-Wire

63813-3800

NSCC - New Standard Casing Contact

NSCC

822348761357

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Physical

Breakaway

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Ports

Temperature Range - Operating

2 x1.5mm female terminals

Black

Female

Yes

Polyester

1.640/g

Carton

3.33mm

Yes

-40°C to +100°C

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

98817Series

Mates With

98822-1021 (Male Receptacle Housing)

Use With

Female Terminal NSCC 98897-1109 ,

98897-1119 , 98897-1129 or FCI Female

Terminal 1.5 Sicma 3

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Extractor Tool for

0638133800

Unsealed Receptacle

Connectors

Electrical

Current - Maximum per Contact

10A

Material Info

Old Part Number

010009321

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

AS-98821-001

PS-98821-001

SD-98815-002, SD-98817-001
