SHEET 1 OF 1
X
36.60
[1.441 in]
22 +.1/-0
31.20
[1.228 in]

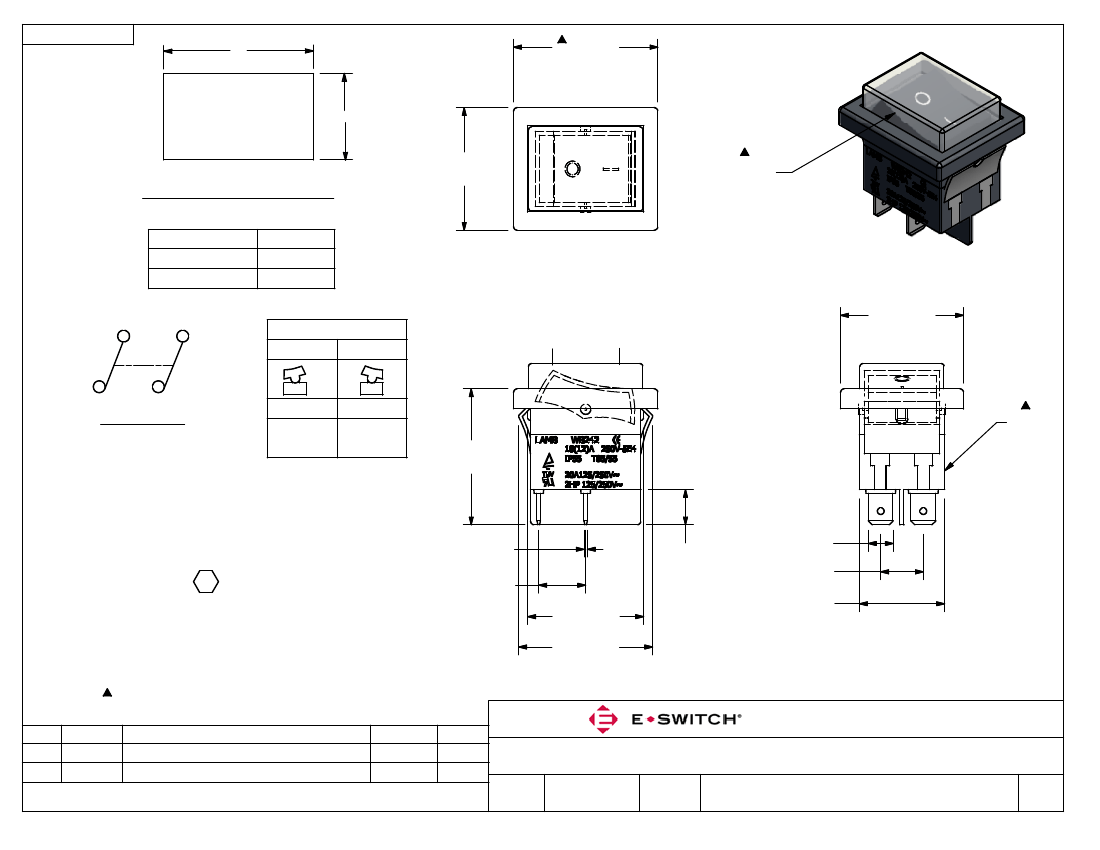

RECOMMENDED PANEL MOUNTING
ACTUATOR:
BLACK
PANEL THICKNESS
1-2
2-2.5
X
31 +.1/-0
31.6 +.1/-0
31.20
[1.228 in]
POS. 1
POS. 2
SWITCH FUNCTION
2
5
POS. 1
POS. 2
1
4
OFF
OPEN
ON
2-1, 5-4
34.60
[1.362 in]
BODY:
BLACK
CIRCUIT: DPST
(ON)=MOMENTARY
NOTE:
1. DIMENSIONS IN mm [INCH]
2. GENERAL TOLERANCE: X.X =
±
0.4
X.XX =
±
0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER PLATED COPPER
5. CONTACT RATINGS: 20A @ 125VAC [cUR
US
]
20A @ 250VAC [cUR
US
]
2.0HP 125/250VAC [cUR
US
]
B
18(12)A 250V~ 5E4 T85 [T
Ü
V]
6. CONTACT RESISTANCE: 50mΩ MAX. INITIAL
7. INSULATION RESISTANCE: 500MΩ MIN. @ 500VDC
8. DIELECTRIC STRENGTH: 1,500VAC FOR 1 MINUTE
9. IP RATING: IP55
10. OPERATING TEMPERATURE: -20°C TO 65°C [cUR
US
]
-20°C TO 65°C [TUV]
11. RUBBER SEAL: MVQ
12. DENOTES CRITICAL PARAMETER
13. 2002/95/EC (ROHS) COMPLIANT
B
A
REV
21106
20663
PCR NO
2.0HP WAS 1.5HP; ADD TUV RATING
New Release
DESCRIPTION
4/16/13
7/3/12
DATE
4
.80
[.031 in]
11.90
[.469 in]
5
9.00
[.354 in]
5
6.30
[.248 in]
10.80
[.425 in]
21.60
[.850 in]
2
29.40
[1.157 in]
34.00
[1.339 in]
EBP
rc
BY
TITLE
WB242D1121-ACC-KF05
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
NONE 7/3/2012
rc
34-WB2S00228
B
