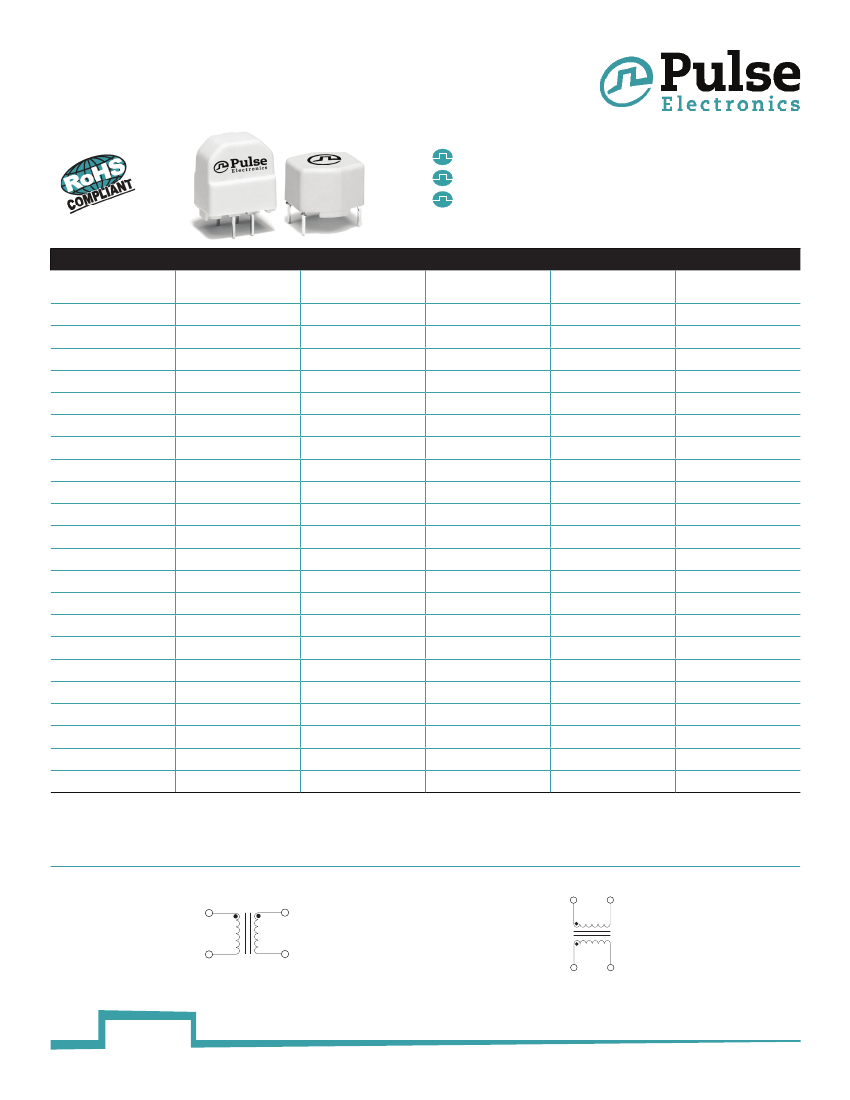

Current Compensated Noise
Suppression Chokes
FE 2X Series - 2 Phase Common Mode Choke
Materials meet UL-94 V-0 requirements
Rated voltage: 250 Vac
Dielectric withstanding voltage: 1500 Vac
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Part Number
(Vertical)
FE2X03-3-2NL
FE2X03-4-2NL
FE2X03-5-2
FE2X03-6-2NL
-
FE2X07-3-2NL
FE2X07-5-2NL
FE2X07-6-2
FE2X10-3-2NL
FE2X10-4-2NL
FE2X10-5-2
FE2X10-6-2NL
FE2X15-3-2NL
FE2X15-4-2
FE2X18-6-2NL
FE2X27-3-2NL
FE2X27-4-2
FE2X39-3-2NL
FE2X39-4-2NL
FE2X39-5-2
FE2X47-3-2
FE2X47-4-2NL
Part Number
(Horizontal)
FE2X03-3-3NL
FE2X03-4-3NL
-
-
FE2X03-8-3
FE2X07-3-3NL
FE2X07-5-3
-
FE2X10-3-3NL
FE2X10-4-3
-
-
FE2X15-3-3
-
-
FE2X27-3-3NL
FE2X27-4-3NL
FE2X39-3-3NL
FE2X39-4-3NL
-
-
-
L
(mH
±30%)
3.3
3.3
3.1
3.3
3.3
6.8
6.8
6.8
10
10
10
10
15
15
18
27
27
39
39
39
47
47
Current
(A)
1.50
2.50
2.80
4.00
8.00
1.20
2.00
2.20
0.70
1.20
1.60
1.80
0.50
1.00
1.40
0.40
0.70
0.35
0.50
0.70
0.30
0.40
DCR
(mOhms Max)
215
90
66
80
33
39
170
210
740
410
260
240
960
530
650
1700
820
2600
1500
1300
2900
1700
SRF
(kHz Min)
760
400
500
600
700
400
400
480
300
350
300
300
300
220
200
180
150
200
160
160
100
150
Notes:
1. Part Numbering System:
FE2XLV-S-P,
where
LV
is the inductance value,
S
is the size code, and
P
is package style (2 = vertical and 3 = horizontal)
2. Part numbers with NL suffix are RoHS 6/6 compliant.
Schematics
Style 2 - Vertical Package
3
5
Style 3 - Horizontal Package
1
7
4
6
2
8
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
P538.E (03/14)
pulseelectronics.com
Current Compensated Noise
Suppression Chokes
FE 2X Series - 2 Phase Common Mode Choke
Mechanicals
Style 2 - Vertical Package
B
Style 3 - Horizontal Package
B
A
A
.157 ± .039
4,00 ± 1.00
.028
0,70
.157 ± .039
4,00 ± 1.00
.028
0,70
E
F
1
C
C
E
7
D
2
8
Dimensions:
PINS VIEW
Inches
mm
Size
Code
3
4
5
A
MAX
.508
12,90
.606
15,40
.705
17,90
PINS VIEW
Size
Code
3
4
5
A
MAX
.803
20,40
1.000
25,40
1.197
30,40
B
MAX
.724
18,40
.921
23,4
1.079
27,40
C
MAX
.528
13,40
.626
15,90
.724
18,40
E
.394
10,00
.492
12,50
.591
15,00
.591
15,00
F
.197
5,00
.394
10,00
.492
12,50
.492
12,50
B
MAX
.705
17,90
.902
22,90
1.098
27,90
C
MAX
.705
17,90
.902
22,90
1.098
27,90
D
.394
10,00
.492
12,50
.591
15,00
.591
15,00
E
.591
15,00
.787
20,00
.984
25,00
1.575
40,00
1.394
1.276
.724
6
35,40
32,40
18,40
Notes:
Tolerances for E & F are
±.010
/ 0,25
1.000
1.709
1.669
8
25,40
43,40
42,40
Notes:
Tolerances for D & E are
±.010
/ 0,25
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA
92128
U.S.A.
Tel: 858 674 8100
Pulse Europe
Einsteinstrasse 1
D-71083 Herren-
berg
Germany
Pulse China Headquarters
B402, Shenzhen Academy of
Aerospace Technol-
ogy Bldg.
10th Kejinan Road
High-Tech Zone
Nanshan District
Shenzen, PR China
518057
Pulse North China
Room 2704/2705
Super Ocean Finance
Ctr.
2067 Yan An Road
West
Shanghai 200336
China
Pulse South Asia
135 Joo Seng Road
#03-02
PM Industrial Bldg.
Singapore 368363
Tel: 65 6287 8998
Fax: 65 6287 8998
Pulse North Asia
3F, No. 198
Zhongyuan Road
Zhongli City
Taoyuan County 320
Taiwan R. O. C.
Tel: 886 3 4356768
Fax: 886 3 4356823
(Pulse)
Tel: 49 7032 7806
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
trademarks or registered trademarks of their respective owners. © Copyright, 2014. Pulse Electronics, Inc. All rights reserved.
2
pulseelectronics.com
P538.E (03/14)
