GXE
Series
Miniature
Long Life
High CV
High Reliability
125 C
Maximum
Temperature
Actual
Size
MINIATURE -125 C
GXE

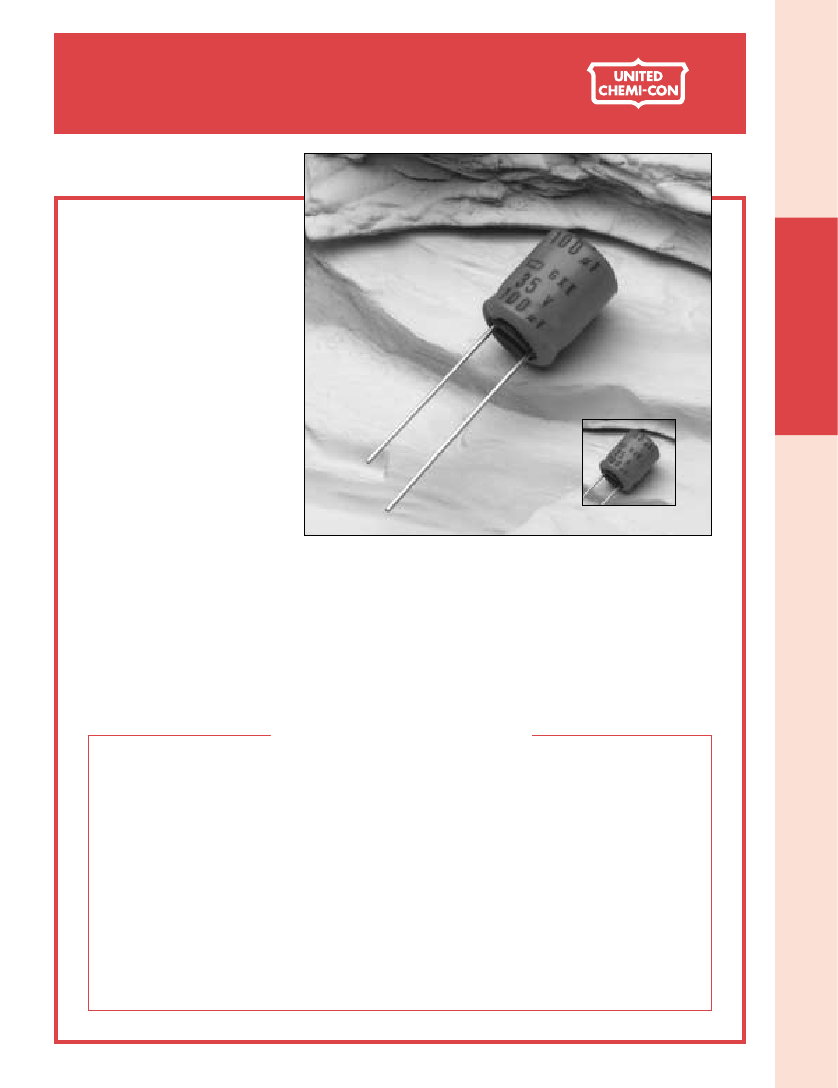

The GXE series capacitors are new miniature high temperature capacitors from United Chemi-Con.
These capacitors are designed for use in very high temperature applications such as automotive
engine controls. These GXE capacitors are an improved series offering longer useful lifetimes when
compared to the older GXD series.
The GXE series capacitors are non-solvent proof. Refer to the Mini-Glossary for cleaning guidelines
and recommended cleaning agents that are compatible with United Chemi-Con products.
Summary of Specifications
Radial lead terminals.
Capacitance range: 4.7 to 4,700µF.
Voltage range: 10 to 450VDC.
Category temperature range: 40 C to 125 C for 10 to 250V; 25 C to 125 C
for 350 to 450V.
Leakage current: See specifications table for leakage current at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 8 12mm to 16 31.5mm.
Rated lifetime: 2,000 to 5,000 hours at 125 C with the rated ripple current applied,
depending on case size.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
95
GXE Series
GXE Specifications
Item
Category Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
At
40 to 125 C for 10 to 250VDC;
10 to 450VDC
4.7 to 4,700 F
20% ( M ) at
20 C
DC Rated Voltage
10 -100V
Test Time
After 1 minute
After 1 minute
I
CV
≤
1,000: I
Leakage Current ( A )
0.03CV or 4 A, whichever is greater.
0.1CV
40
CV >1,000: I
0.04CV 100
Characteristics
25 to 125 C for 350 to 450VDC
20 C, 120Hz
MINIATURE -125 C
160 - 450V
Where I = Max. leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
At
20 C, 120Hz
10
0.20
16
0.16
25
0.14
35
0.12
50
0.10
63
0.10
80
0.08
100
0.08
160 - 250
0.20
350 - 450
0.24
GXE
Rated Voltage ( V )
Tan
( DF )
When nominal capacitance exceeds 1,000 F, add 0.02 to the values above for each 1,000 F increase.
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
exceed the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
Z ( 40 C ) / Z ( 20 C )
10
3
6
16
2
4
25
2
4
25 C or
35
2
4
50
2
4
40 C value and
63
2
4
80
2
4
100
2
4
20 C value shall not
160 - 250
3
6
350 - 450
6
–
Rated Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation of
Rated Ripple Current Multipliers.
Frequency (Hz ) for 10 -100V
Capacitance
( F)
4.7-100 F
220 - 470 F
1,000 F
2,200 - 3,300 F
4,700 F
Frequency (Hz )
120
0.40
0.50
0.60
0.75
0.85
1k
0.75
0.85
0.87
0.90
0.95
10k
0.90
0.94
0.95
0.95
0.98
100k
1.00
1.00
1.00
1.00
1.00
Frequency (Hz ) for 160 - 450V
Capacitance
( F)
4.7- 33 F
47-150 F
Frequency (Hz )
50
0.75
0.80
120
1.00
1.00
300
1.25
1.15
1k
1.50
1.30
10k
1.75
1.40
100k
1.80
1.50
Endurance
(Load Life)
The following specifications shall be satisfied when the capacitors are restored to 20 C
after subjecting them to DC voltage for the specified test time at 125 C with the rated ripple
current applied. The sum of DC voltage and peak AC voltage must not exceed the full rated
voltage of the capacitors.
Case Diameter
Ø
8mm
Ø
10mm
Ø
12.5mm & Above
Test Time (10 -100V )
2,000 Hours
3,000 Hours
5,000 Hours
Case Diameter
Ø
10mm & Above
Test Time (160 - 450V )
2,000 Hours
10 -100V
Capacitance change:
≤
30% of initial measured value
Tan ( DF ):
≤
300% of initial specified value
Leakage current:
≤
initial specified value
Shelf Life
160 - 450V
Capacitance change:
≤
20% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours (500 hours for
≥
350V ) at 125 C without voltage applied. The
rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours
and not more than 48 hours before the measurements.
10 -100V
160 - 450V
Capacitance change:
≤
30% of initial measured value
Tan ( DF ):
≤
300% of initial specified value
Leakage current:
≤
initial specified value
Capacitance change:
≤
20% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
500% of initial specified value
96
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
GXE Series
Diagram of Dimensions
VB/Radial Lead
Unit: mm
PET Sleeve
d
D
'
D
F
F
L
Vent
L
'
15
MIN.
4
MIN.
MINIATURE -125 C
8 ~ 10
12.5 ~ 16
GXE
Gas escape end seal for all case diameters.
For optional lead configurations and tape and ammo
packaging, refer to the beginning of the Miniature Section.
Ø
D
8
10
12.5
16
Ø
D
'
max.
Ø
D
0.5
Ø
D 0.5
Ø
D 0.5
Ø
D 0.5
L
'
max.
L 2.0
L 2.0
L 2.0
L 2.0
Ø
d
0.6
0.6
0.6
0.8
F 0.5
3.5
5.0
5.0
7.5
Part Numbering System for GXE Series
GXE
35
VB
101
M
10X12
LL
When ordering, always specify complete catalog number for GXE Series.
Lead Length: LL is Standard.
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R10 = .10 F; 1R0 = 1.0 F;
10R = 10 F; 101 = 100 F; 102 = 1,000 F; 103 = 10,000 F ).
Lead Configuration: VB = Radial Lead Terminals.
DC Rated Voltage: Expressed in Volts (e.g. 35 = 35WVDC).
Series Name: Indicates Basic Capacitor Design.
Standard Voltage Ratings - VB/Radial Lead (10 -100V )
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum
Impedance
(
Ω
) at
20 C, 100kHz
0.320
0.150
0.150
0.075
0.040
0.031
0.025
Rated
Ripple Current
( mA rms) at
125 C, 100kHz
340
620
620
950
1,350
1,620
1,860
10 Volts
13 Volts Surge
220
330
470
1,000
2,200
3,300
4,700
GXE10VB221M8X12LL
GXE10VB331M10X12LL
GXE10VB471M10X12LL
GXE10VB102M10X20LL
GXE10VB222M12X25LL
GXE10VB332M16X25LL
GXE10VB472M16X31LL
8
10
10
10
12.5
16
16
12
12.5
12.5
20
25
25
31.5
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
97
GXE Series
Standard Voltage Ratings - VB/Radial Lead (10 -100V )
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum
Impedance
(
Ω
) at
20 C, 100kHz
0.320
0.150
0.150
0.094
0.058
0.031
0.025
0.320
0.150
0.094
0.075
0.040
0.025
0.320
0.150
0.094
0.075
0.058
0.031
0.750
0.500
0.500
0.500
0.200
0.098
0.081
0.059
0.032
1.500
0.590
0.410
0.160
0.120
0.097
0.059
1.500
0.800
0.800
0.390
0.180
0.160
0.110
2.000
1.500
0.800
0.800
0.550
0.250
0.110
0.079
Rated
Ripple Current
( mA rms) at
125 C, 100kHz
340
620
620
790
1,080
1,620
1,860
340
620
790
950
1,350
1,860
340
620
790
950
1,080
1,620
180
250
280
280
520
880
990
1,150
1,590
150
530
690
1,050
1,290
1,460
1,850
150
480
480
790
1,240
1,390
1,500
130
150
480
480
630
990
1,500
1,790
16 Volts
20 Volts Surge
100
220
330
470
1,000
2,200
3,300
100
220
330
470
1,000
2,200
100
100
220
330
470
1,000
10
22
33
47
100
220
330
470
1,000
33
47
100
220
330
470
1,000
22
33
47
100
220
330
470
4.7
10
22
33
47
100
220
330
GXE16VB101M8X12LL
GXE16VB221M10X12LL
GXE16VB331M10X12LL
GXE16VB471M10X16LL
GXE16VB102M12X20LL
GXE16VB222M16X25LL
GXE16VB332M16X31LL
GXE25VB101M8X12LL
GXE25VB221M10X12LL
GXE25VB331M10X16LL
GXE25VB471M10X20LL
GXE25VB102M12X25LL
GXE25VB222M16X31LL
GXE35VB101M8X12LL
GXE35VB101M10X12LL
GXE35VB221M10X16LL
GXE35VB331M10X20LL
GXE35VB471M12X20LL
GXE35VB102M16X25LL
GXE50VB10RM8X12LL
GXE50VB22RM8X12LL
GXE50VB33RM8X12LL
GXE50VB47RM8X12LL
GXE50VB101M10X12LL
GXE50VB221M10X20LL
GXE50VB331M12X20LL
GXE50VB471M12X25LL
GXE50VB102M16X31LL
GXE63VB33RM8X12LL
GXE63VB47RM10X12LL
GXE63VB101M10X16LL
GXE63VB221M12X20LL
GXE63VB331M12X25LL
GXE63VB471M12X30LL
GXE63VB102M16X31LL
GXE80VB22RM8X12LL
GXE80VB33RM10X12LL
GXE80VB47RM10X12LL
GXE80VB101M10X20LL
GXE80VB221M12X25LL
GXE80VB331M12X30LL
GXE80VB471M16X25LL
GXE100VB4R7M8X12LL
GXE100VB10RM8X12LL
GXE100VB22RM10X12LL
GXE100VB33RM10X12LL
GXE100VB47RM10X16LL
GXE100VB101M12X20LL
GXE100VB221M16X25LL
GXE100VB331M16X31LL
8
10
10
10
12.5
16
16
8
10
10
10
12.5
16
8
10
10
10
12.5
16
8
8
8
8
10
10
12.5
12.5
16
8
10
10
12.5
12.5
12.5
16
8
10
10
10
12.5
12.5
16
8
8
10
10
10
12.5
16
16
12
12.5
12.5
16
20
25
31.5
12
12.5
16
20
25
31.5
12
12.5
16
20
20
25
12
12
12
12
12.5
20
20
25
31.5
12
12.5
16
20
25
30
31.5
12
12.5
12.5
20
25
30
25
12
12
12.5
12.5
16
20
25
31.5
MINIATURE -125 C
GXE
25 Volts
32 Volts Surge
35 Volts
44 Volts Surge
50 Volts
63 Volts Surge
63 Volts
79 Volts Surge
80 Volts
100 Volts Surge
100 Volts
125 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
98
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
GXE Series
Standard Voltage Ratings - VB/Radial Lead (160 - 450V )
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum
Impedance
(
Ω
) at
20 C, 100kHz
4.000
2.600
1.800
1.300
0.900
0.590
3.300
2.300
1.800
1.200
1.100
0.740
3.300
1.800
1.200
0.760
0.540
4.700
3.400
1.900
1.100
0.810
5.500
3.500
1.600
1.200
0.850
5.500
4.000
1.900
1.300
Rated
Ripple Current
(A rms) at
125 C, 120Hz
115
154
187
245
329
434
160 Volts
200 Volts Surge
22
33
47
68
100
150
10
22
33
47
68
100
10
22
33
47
68
4.7
10
22
33
47
4.7
10
22
33
47
4.7
10
22
33
GXE160VB22RM10X20LL
GXE160VB33RM10X25LL
GXE160VB47RM12X20LL
GXE160VB68RM12X25LL
GXE160VB101M16X25LL
GXE160VB151M16X31LL
GXE200VB10RM10X20LL
GXE200VB22RM10X25LL
GXE200VB33RM12X20LL
GXE200VB47RM12X25LL
GXE200VB68RM16X20LL
GXE200VB101M16X25LL
GXE250VB10RM10X20LL
GXE250VB22RM12X20LL
GXE250VB33RM12X25LL
GXE250VB47RM16X25LL
GXE250VB68RM16X31LL
GXE350VB4R7M10X20LL
GXE350VB10RM10X25LL
GXE350VB22RM12X25LL
GXE350VB33RM16X25LL
GXE350VB47RM16X31LL
GXE400VB4R7M10X20LL
GXE400VB10RM10X25LL
GXE400VB22RM12X30LL
GXE400VB33RM16X25LL
GXE400VB47RM16X31LL
GXE450VB4R7M10X25LL
GXE450VB10RM12X20LL
GXE450VB22RM16X25LL
GXE450VB33RM16X31LL
10
10
12.5
12.5
16
16
10
10
12.5
12.5
16
16
10
12.5
12.5
16
16
10
10
12.5
16
16
10
10
12.5
16
16
10
12.5
16
16
20
25
20
25
25
31.5
20
25
20
25
20
25
20
20
25
25
31.5
20
25
25
25
31.5
20
25
30
25
31.5
25
20
25
31.5
MINIATURE -125 C
200 Volts
250 Volts Surge
78
126
157
204
250
329
78
128
171
225
292
53
85
139
189
243
53
86
142
189
243
58
86
154
203
GXE
250 Volts
300 Volts Surge
350 Volts
400 Volts Surge
400 Volts
450 Volts Surge
450 Volts
500 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
99
京公网安备 11010802033920号
EEWORLD
