Over Voltage, Over Load, and Short Circuit Protection
•
Low Standby Power Consumption under 0.3W
•
Compliant to RoHS EU Directive 2011/65/EU
•
CE Mark Meets 2006/95/EC, 2011/95/EC, & 2004/108/EC
•
ANSI/AAMI ES60601-1, EN60601-1, and IEC60601-1 3rd Edition
Medical Approvals
•
Open Frame, U-Chassis, Enclosed Case, & DIN Rail Mechanical
Options Available

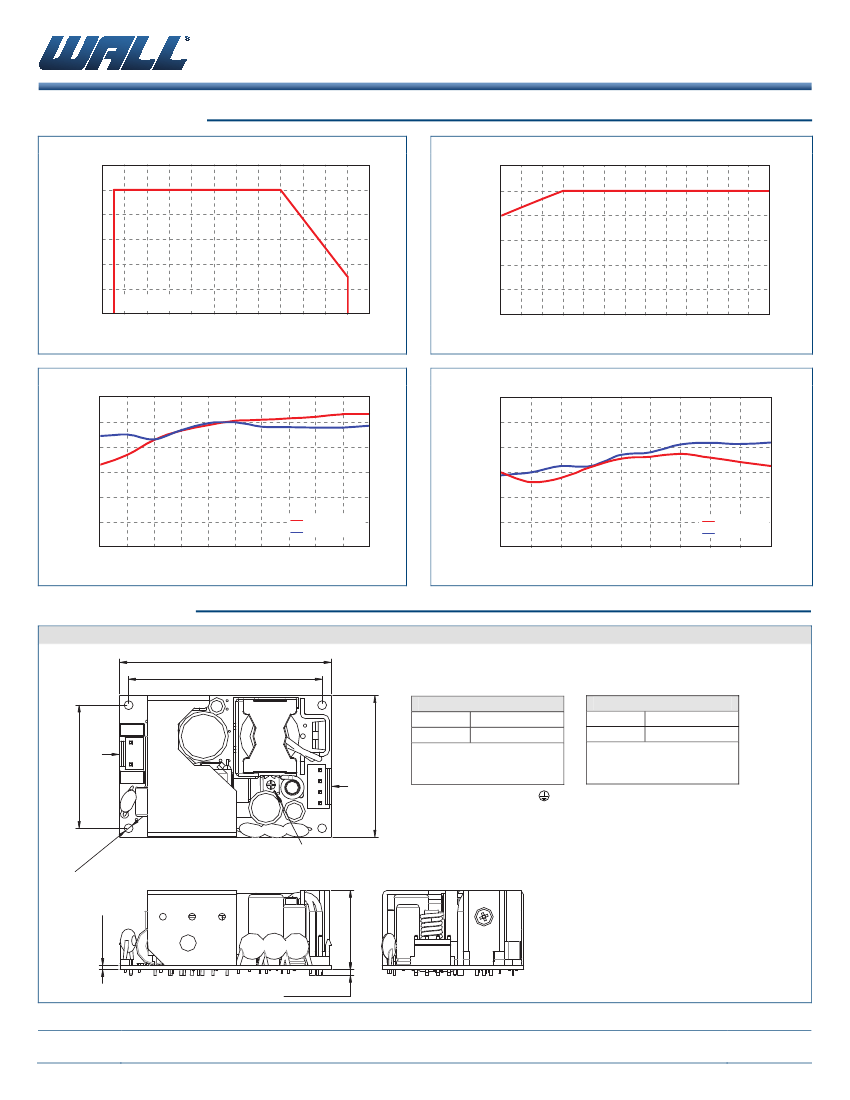

Size:
3.00 x 2.00 x 1.16 inches

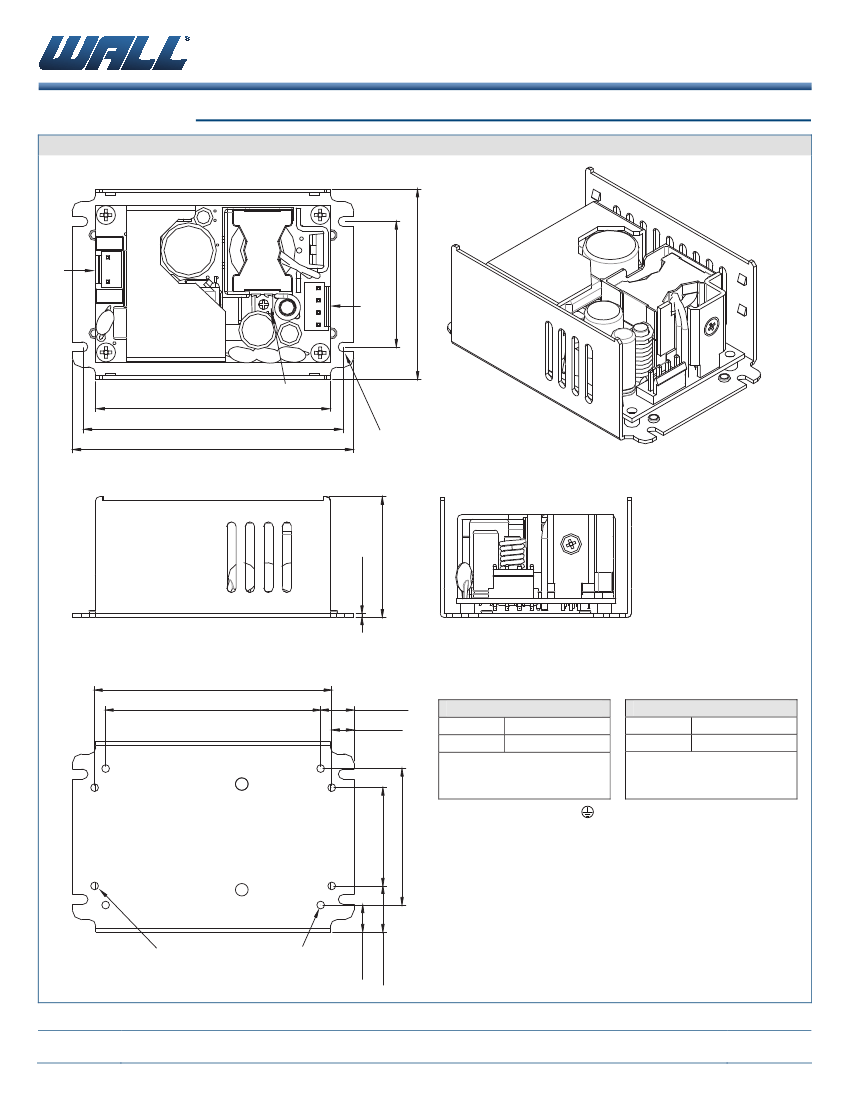

U-Chassis (Suffix “U”)
Size:
3.60 x 2.44 x 1.54 inches
Enclosed Case (Suffix “C”)

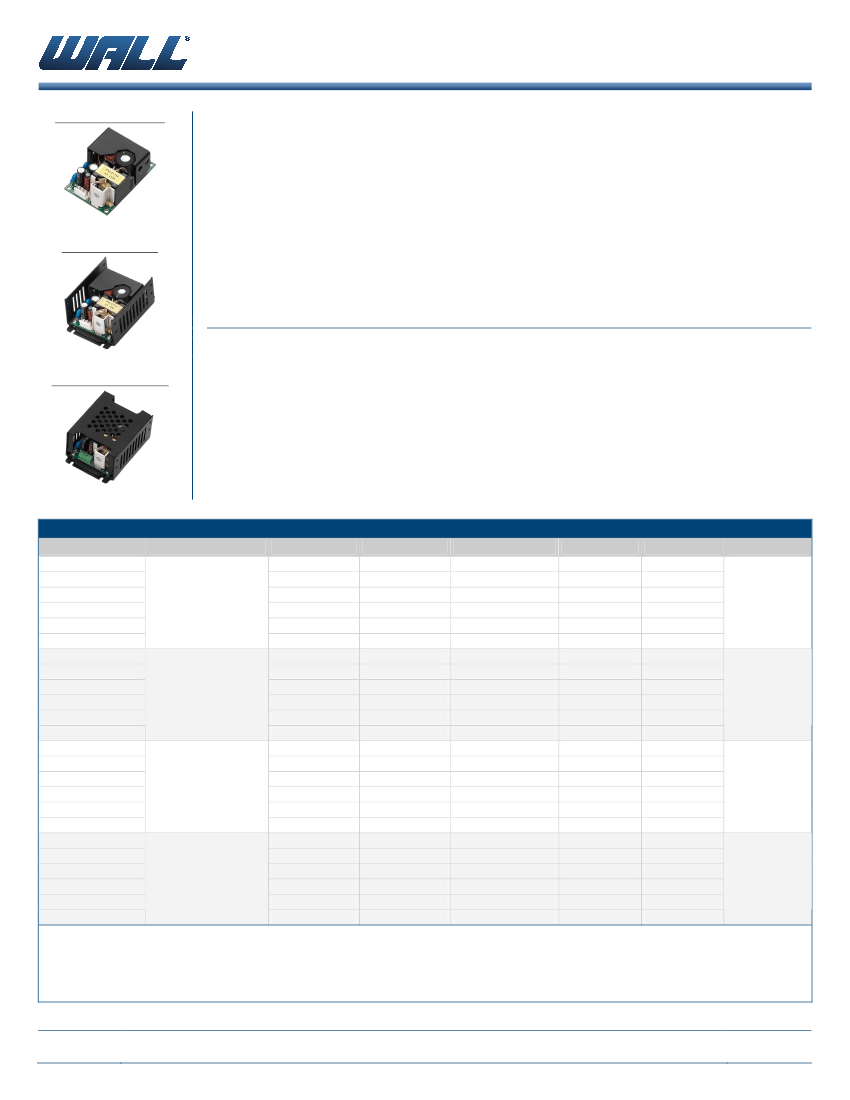

DESCRIPTION
The PSMAD100 series of AC/DC medical power supplies provides 100 Watts of output power in a compact 2 x 3 inch
footprint. These supplies feature a universal 85-264VAC (120~370 VDC) input, enabling them to be used anywhere in the
world. The off load power draw is less than 0.3 Watts, which complies with many energy-saving initiatives. 12V, 15V, 24V,
28V, 36V, and 48VDC single output voltages are available for this series, all of which have a ±10% adjustment range. These
supplies also feature a low leakage current of less than 75μA at 264VAC and are designed to withstand 4000VAC, input to
output. The PSMAD100 series has an operating temperature range of -25°C to +80°C, active power factor correction, and a
high efficiency up to 92%. These supplies are also protected against short circuit, over voltage, and over current conditions.
The PSMAD100 series has ANSI/AAMI ES60601-1, EN60601-1, and IEC60601-1 3rd edition medical safety approvals, are CE
Marked, and meet the conducted and radiated EMI requirements of EN55011, EN55022 and FCC Part 18. Open frame, U-
chassis, enclosed case, and DIN rail mechanical options are available. Class I and Class II protection types are also available.
Size:
3.60 x 2.44 x 1.54 inches
MODEL SELECTION TABLE
Model Number
PSMAD100-12S-O
PSMAD100-15S-O
PSMAD100-24S-O
PSMAD100-28S-O
PSMAD100-36S-O
PSMAD100-48S-O
PSMAD100-12S-U
PSMAD100-15S-U
PSMAD100-24S-U
PSMAD100-28S-U
PSMAD100-36S-U
PSMAD100-48S-U
PSMAD100-12S-C
PSMAD100-15S-C
PSMAD100-24S-C
PSMAD100-28S-C
PSMAD100-36S-C
PSMAD100-48S-C
PSMAD100-12S-D
PSMAD100-15S-D
PSMAD100-24S-D
PSMAD100-28S-D
PSMAD100-36S-D
PSMAD100-48S-D
NOTES
1. Protection types Class I and Class II are available for this series. Class I comes standard and for Class II add the suffix “B” to the model number. See page 3
for model number setup.
2. DIN rail option is only available for enclosed case type models.
