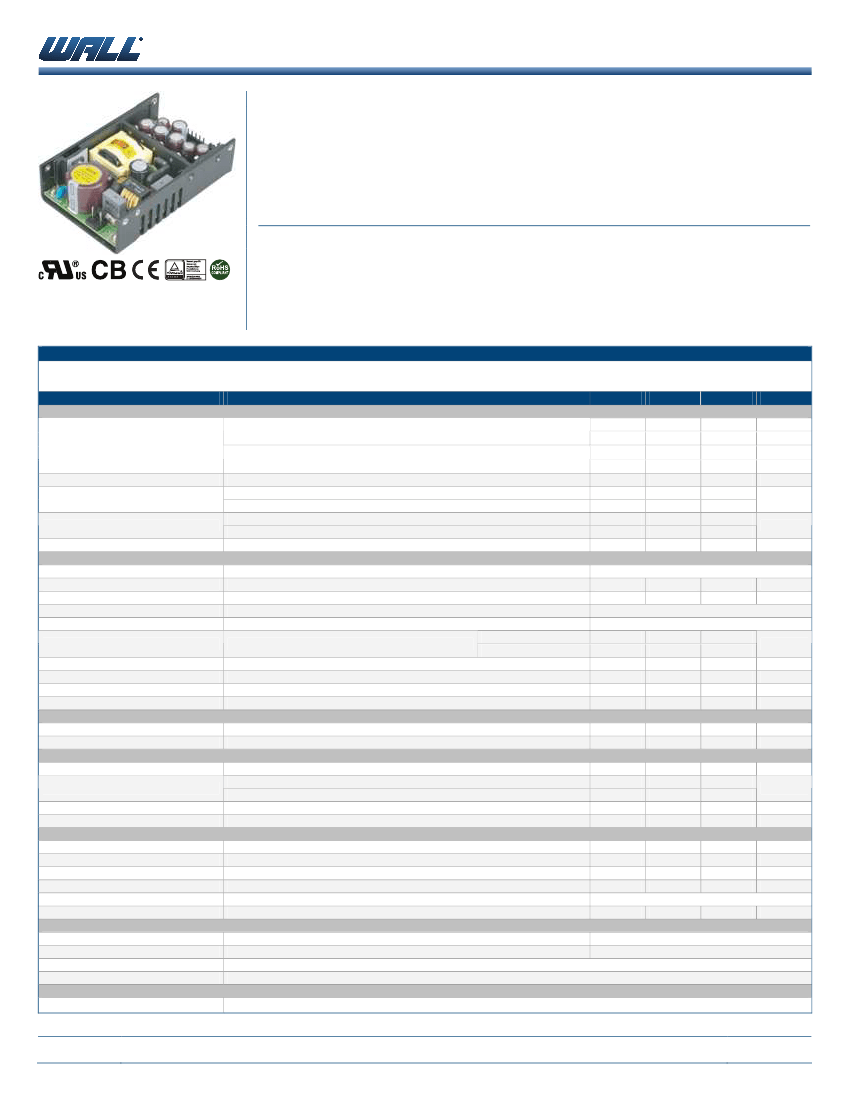

Wall Industries, Inc.
Rev A
PSIUU63 SERIES
Up to 63 Watts, AC/DC Switching Power Supplies
FEATURES
•
Class I
•
Single to Quad Outputs
•
RoHS Compliant
•
Internal EMI Filter
•
Up to 63 Watts Output Power
•
Power Fail Detect (Optional)
•
Over Voltage and Over Current Protection
•
Wide Input Voltage Range: 81~280VAC (90~420VDC)
•
-20°C to +70°C Operating Temperature Range
•
2-Pin Input Connector
•
3-Pin Input Connector Available (See PSIUU62 Series)
•
UL/cUL(UL 60950-1: 2nd Edition) & TUV/GS (EN 60950-1: 2nd Edition)
Safety Approvals
•
100% Burn-in Tested
DESCRIPTION
The PSIUU63 series of Class I AC/DC switching mode power supplies provides up to 63 Watts of continuous output
power in a 5.00” x 3.21” x 1.38” U-chassis package. This series has single, dual, triple, and quad output models with a
wide input voltage range of 81~280VAC (90~420VDC). These power supplies have an internal EMI filter and are
protected against over voltage and over current conditions. This series also has UL/cUL (UL 60950-1: 2nd edition) and
TUV/GS (EN 60950-1: 2nd edition) safety approvals. These units are well suited for use in industrial equipment as well as
many other applications. All models are 100% burn-in tested.
Size:
5.00 x 3.21 x 1.38 inches
127.0 x 81.6 x 35.1 mm
Weight:
15oz (425g)
TECHNICAL SPECIFICATIONS: PSIUU63 SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Universal Input Voltage Range
Input Voltage
Operating Input Voltage Range
Input Frequency
Input Current
Inrush Current
No Load Power Consumption
OUTPUT SPECIFICATIONS
Output Voltage
Line Regulation
Load Regulation
Output Power
Output Current
Ripple & Noise (peak to peak)
Hold-up Time
Start-up Time
Transient Response Time
Temperature Coefficient
PROTECTION
Over Voltage Protection
Over Current Protection
GENERAL SPECIFICATIONS
Efficiency
Dielectric Withstanding Voltage
Isolation Resistance
Leakage Current
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Cooling
MTBF
PHYSICAL SPECIFICATIONS
Weight
Dimensions (L x W x H)
Input Connector
Output Connector
SAFETY
Safety Approvals
TEST CONDITIONS
Min
90
106
81
90
47
Typ
Max
264
250
280
420
63
Unit
VAC
VDC
VAC
VDC
Hz
A
Vin = 100VAC or 160VDC, Io = full load
Vin = 240VAC or 325VDC, Io = full load
Vin = 115VAC or 160VDC, Io = full load, 25°C, cold start
Vin = 230VAC or 325VDC, Io = full load, 25°C, cold start
Vin = 230VAC, Io = no load
1.6
0.8
35
70
2
See Table
A
W
LL to HL, full load
Vin = 230VAC or 325VDC
0.5
5
See Table
See Table
1
6
%
%
Vin = 85VAC or 100VDC, Io = full load
Vin = 110VAC or 160VDC, Io = full load
Vin = 100VAC or 140VDC, Io = full load
Vin = 100VAC or 140VDC, Io = Full load to half load
0~50°C
Outputs under 3.3VDC
Others
16
2
1
2
5
+0.05
132
150
88
%
ms
s
ms
%/°C
%
%
%
VDC
-0.05
112
110
Vin = 230VAC or 325VDC, Io = full load
Primary to Secondary
Primary to PE
Test Voltage = 500VDC
Vin = 240VAC/60Hz
Derating linearly from 100% Load at 50°C to 50% load at 70°C
70
4242
2414
50
0.45
-20
-40
0
0
100,000
+70
+85
95
95
Free air convection
MΩ
mA
°C
°C
%
%
hours
MIL-HDBK-217F, 25°C
15oz (425g)
5.00 x 3.21 x 1.38 inches (127.0 x 81.6 x 35.1 mm)
Mates with Molex housing 09-52-4034 and Molex 2478 series crimp terminal
Mates with Molex housing 09-52-4084 and Molex 2478 series crimp terminal
UL/cUL (UL 60950-1: 2nd edition); TUV/GS (EN 60950-1: 2nd edition)
02/25/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 1 of 4
Wall Industries, Inc.
Rev A
PSIUU63 SERIES
Up to 63 Watts, AC/DC Switching Power Supplies

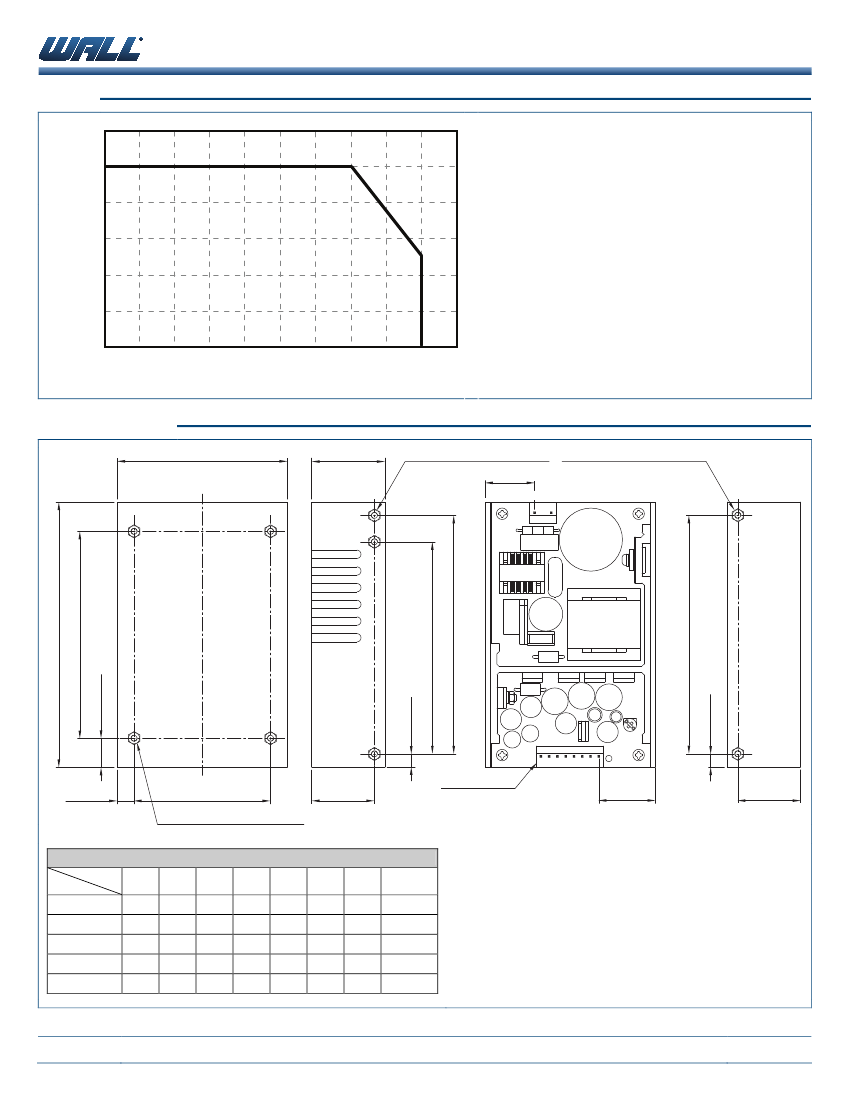

DERATING
120
100
Output Power (%)
80
60
40
20
0
-20
0
20
40
60
Ambient Temperature (°C)
70
80
Notes
1. Operating Temperature: -20°C to + 70°C
2. Derating linearly from 100% load at 50°C to 50%
load at 70°C
MECHANICAL DRAWING
3.21 [81.6]
1.38 [35.1]
#6 - 32 (MOUNTING HOLES) X 3
0.93 [23.6]
N
L
AC INPUT
P1
#6 - 32 (MOUNTING HOLES) X 2
4.50 [114.25]
0.55 [13.97]
4.00 [101.6]
4.50 [114.25]
ADJ
P2
876 54 32 1
DC OUTPUT
5.00 [127.0]
3.90 [99.06]
0.25 [6.35]
PITCH=3.96mm
0.32 [8.1]
2.57 [65.3]
#6 - 32 (MOUNTING HOLES) X 4
1.18 [30.02]
1.07 [27.3]
0.25 [6.35]
1.18 [30.02]
PIN CONNECTIONS
PIN
MODEL
PSIUU63-1XX
PSIUU63-2XX
PSIUU63-215
PSIUU63-3XX
PSIUU63-4XX
1
OUT
Vo
2
N/C
Vo
2
Vo
2
2
OUT
Vo
1
Vo
1
Vo
1
Vo
1
3
OUT
Vo
1
Vo
1
Vo
1
Vo
1
4
RTN
COM
COM
COM
COM
5
RTN
COM
COM
COM
COM
6
RTN
N/C
Vo
2
Vo
3
Vo
3
7
RTN
N/C
N/C
N/C
Vo
4
8
(Optional)
PFD
PFD
PFD
PFD
PFD
NOTES
Unit: Inches [mm]
Tolerance: ±0.02 [±0.5]
Weight: 15oz (425g)
Input connector mates with Molex housing 09-52-4034 and Molex 2478
series crimp terminal
5. Output connector mates Molex housing 09-52-4084 and Molex 2478
series crimp terminal.
6. 3-pin input connector also available (See PSIUU62 Series)
7. All dimensions are for reference only
1.
2.
3.
4.
02/25/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 3 of 4
Wall Industries, Inc.
Rev A
PSIUU63 SERIES
Up to 63 Watts, AC/DC Switching Power Supplies
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development engineers will provide a
solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008 certification is just one example of our
commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working closely with its customers to
ensure each solution meets or exceeds form, fit and function requirements. We will continue to provide ongoing support for your project above and
beyond the design and production phases. Give us a call today to discuss your future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)597-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
37 Industrial Drive
Exeter, NH 03833
02/25/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 4 of 4
