SPS-1900 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SPS-1900

Preview

SPS-1900: DescriptionPHASE SHIFTER; CategoryWireless rf/communication Radio frequency and microwave; File Size272KB，3 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

SPS-1900 Overview

PHASE SHIFTER

SPS-1900 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SYNERGY
package instruction	SURFACE MOUNT PACKAGE-14
Reach Compliance Code	compli
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	-10 dBm
Maximum insertion loss	2 dB
Maximum operating frequency	2200 MHz
Minimum operating frequency	1800 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
maximum phase shift	150 deg
minimum phase shift
RF/Microwave Device Types	PHASE SHIFTER
Maximum voltage standing wave ratio	1.7

Preview

Download Datasheet

View All

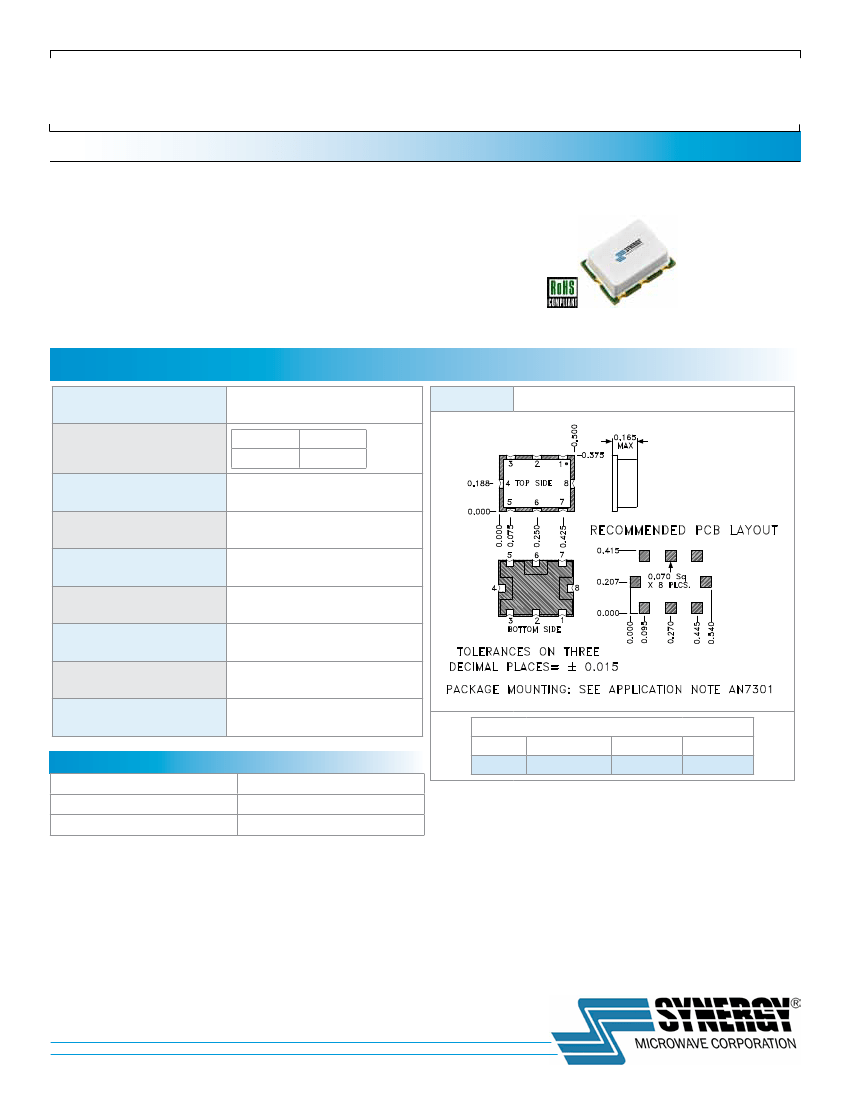

PHASE SHIFTER

SURFACE MOUNT MODEL:

SPS-1900

OPTIMIZED BANDWIDTH

FEATURES:

►

Over 135º Phase Shift

►

Low Insertion Loss

►

Low VSWR

1800 - 2200 MHz

SPECIFICATIONS (Rev. A 03/25/11)

Frequency

1800 - 2200 MHz

Typ.

1.5

DC to 250 kHz

0 - 20 V (Max.)

0 - 135º (Min.)

1.30:1 (Typ.)

-10 dBm (Max.)

50 Ohms (Nom.)

-40 to +85 °C

Input

4

-55 to +100 ºC

+20 dBm

+25 V

Max.

2.0

Package #

357

Insertion Loss (dB)

Control Bandwidth

Control Voltage

Phase Shift Range

VSWR

Input Power

Impedance

Operating Temperature Range

PORT CONFIGURATION

Output

8

CTRL

6

GND

All Others

Absolute Maximum Ratings

Storage Temp. Range

RF Input Power

Contol Voltage

201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 1 of 3 ]
