SHEET 1 OF 1
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
X
ON
2-3, 5-6
N/A
N/A
ON
2-1, 5-4
[
.878
RECOMMENDED PANEL MOUNTING
22.30
- .10
.00
+.004
- .000
+
in
]
25.00
[.984 in]
25.00
[.984 in]
2
5
PANEL THICKNESS
1.2-1.8
1.8-2.4
X
29.9/30.0
30.3/30.4
30.7/30.8
32.00
[1.260 in]
1
3
4
6
2.4-3.0

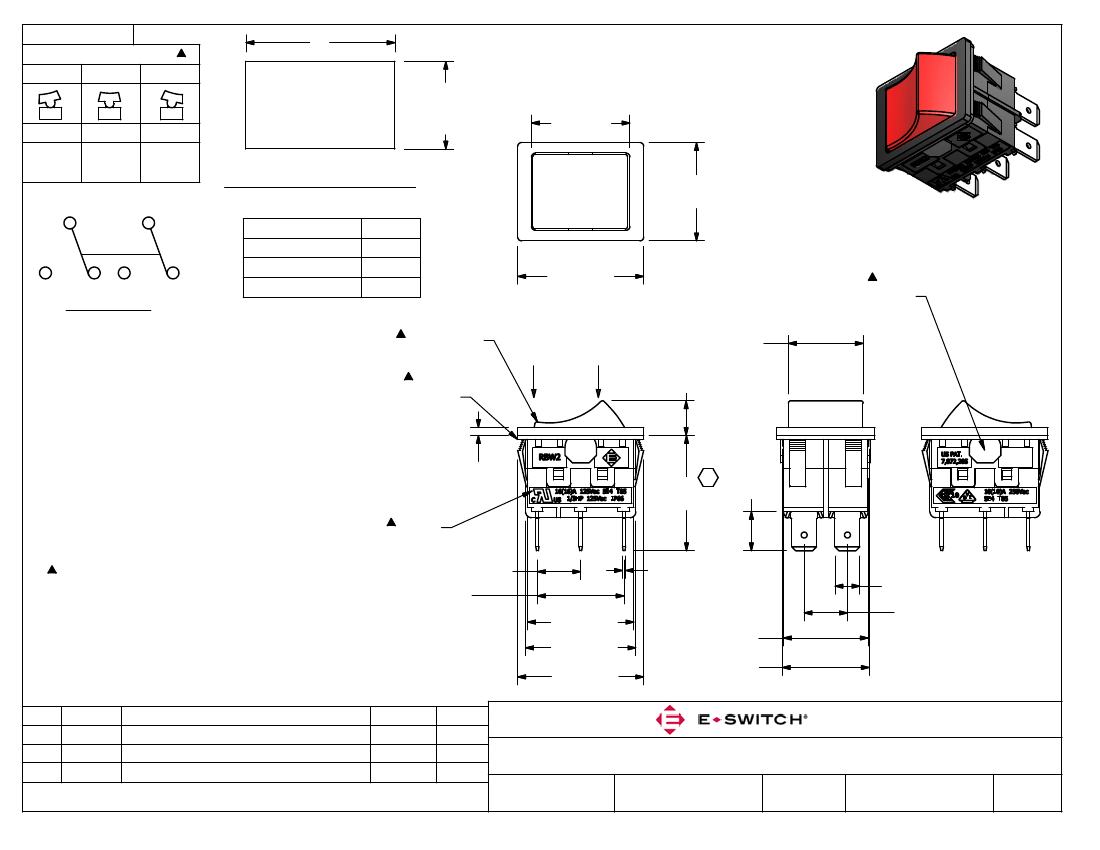

CIRCUIT: DPDT
ON-ON
RED ROCKER
MATTE FINISH
POS
1
POS
3
19.00
[.748 in]
8.80
`
.50
[.346
`
.020
in]
RUBBER PLUG
BOTH SIDES
RUBBER GASKET
(Y000100)
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERM. NOS. FOR REF. ONLY
4. RATING: CUL: 16(16)A 125VAC 5E4 T85
1/3HP 125VAC IP66
VDE: 10(10)A 250VAC 5E4 T85
5. MECHANICAL LIFE: 50,000 CYCLES
6. CONTACT RESISTANCE: <30 MILLI-OHMS INITIAL
7. DIELECTRIC STRENGTH: 1000V AC 1MIN
8. DENOTES CRITICAL PARAMETER.
9. INSULATION RESISTANCE: 500M OHMS AT 500VDC
10. OPERATING TEMP: -20°C to 85°C
11. 2002/95/EC (ROHS) COMPLIANT
2.00
[.079 in]
BLACK
HOUSING
11.00
[.433 in]
27.00
[1.063 in]
28.00
[1.102 in]
32.00
[1.260 in]
29.30
[1.154 in]
C
10.00
[.394 in]
4
5
6
.80
[.031 in]
6
3
3
6.30
[.248 in]
11.00
[.433 in]
2
1
22.00
[.866 in]
21.50
[.846 in]
22.10
[.870 in]
C
B
A
REV
20086
19686
19551
PCR NO
ADD RUBBER PLUG & GASKET, was 29.00
UPDATE SYMBOLS ON BODY
New Release
DESCRIPTION
8/10/11
12/16/11
12/29/10
DATE
BGL
BMA
rc
BY
TITLE
SCALE
RBW2BBLKREDEF0
2:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
12/27/2010
DR
rc
DWG
Y100002
REV
C
