DB100-PAF09GFT-2RD

Description
D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size78KB,1 Pages
ManufacturerMMT Corp
Websitehttp://www.mmtmachrone.com
Download Datasheet Parametric Compare View All

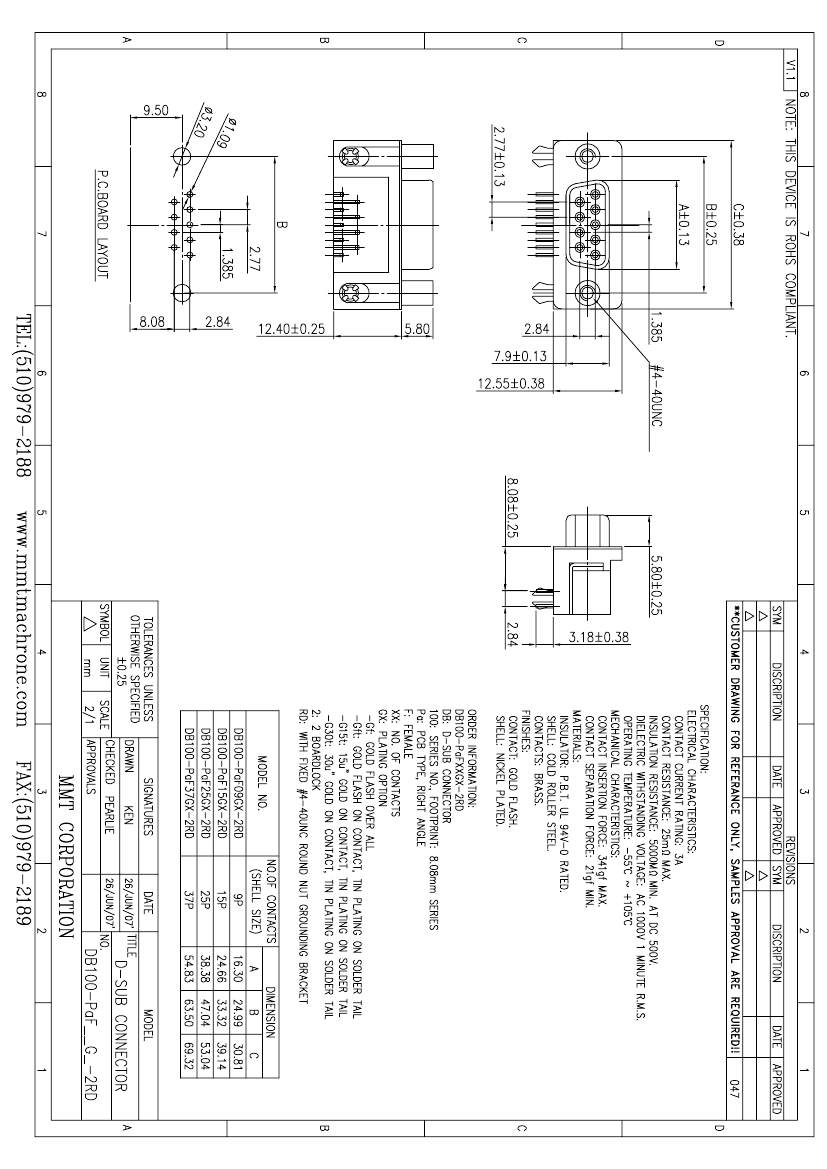

DB100-PAF09GFT-2RD Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DB100-PAF09GFT-2RD Parametric

Parameter NameAttribute value
Objectid304295398
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.494 inch
subject depth0.488 inch
body length1.213 inch
Body/casing typePLUG
Contact to complete cooperationAU
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance25 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
maximum insertion force3.336 N
Insulation resistance5000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDB100
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2SCREWLOCKS
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thicknessFLASH inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialSTEEL
Terminal length0.125 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts9
Evacuation force-minimum value.1946 N

DB100-PAF09GFT-2RD Related Products

DB100-PAF09GFT-2RD DB100-PAF37G15T-2RD DB100-PAF37GFT-2RD
Description D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width 0.494 inch 0.494 inch 0.494 inch
subject depth 0.488 inch 0.488 inch 0.488 inch
body length 1.213 inch 2.729 inch 2.729 inch
Body/casing type PLUG PLUG PLUG
Contact to complete cooperation AU AU AU
Contact completed and terminated TIN TIN TIN
Contact point gender FEMALE FEMALE FEMALE
Contact material BRASS BRASS BRASS
contact mode STAGGERED STAGGERED STAGGERED
Contact resistance 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V
maximum insertion force 3.336 N 3.336 N 3.336 N
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number DB100 DB100 DB100
Plug contact pitch 0.109 inch 0.109 inch 0.109 inch
Match contact row spacing 0.112 inch 0.112 inch 0.112 inch
Installation option 1 #4-40 #4-40 #4-40
Installation option 2 SCREWLOCKS SCREWLOCKS SCREWLOCKS
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
PCB row number 2 2 2
Number of rows loaded 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C -55 °C
PCB contact pattern STAGGERED STAGGERED STAGGERED
PCB contact row spacing 2.8448 mm 2.8448 mm 2.8448 mm
Plating thickness FLASH inch 15u inch FLASH inch
Rated current (signal) 3 A 3 A 3 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Shell surface NICKEL NICKEL NICKEL
Shell material STEEL STEEL STEEL
Terminal length 0.125 inch 0.125 inch 0.125 inch
Terminal pitch 2.7686 mm 2.7686 mm 2.7686 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 9 37 37
Evacuation force-minimum value .1946 N .1946 N .1946 N
