DRM-S-37: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size157KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

DRM-S-37 Overview

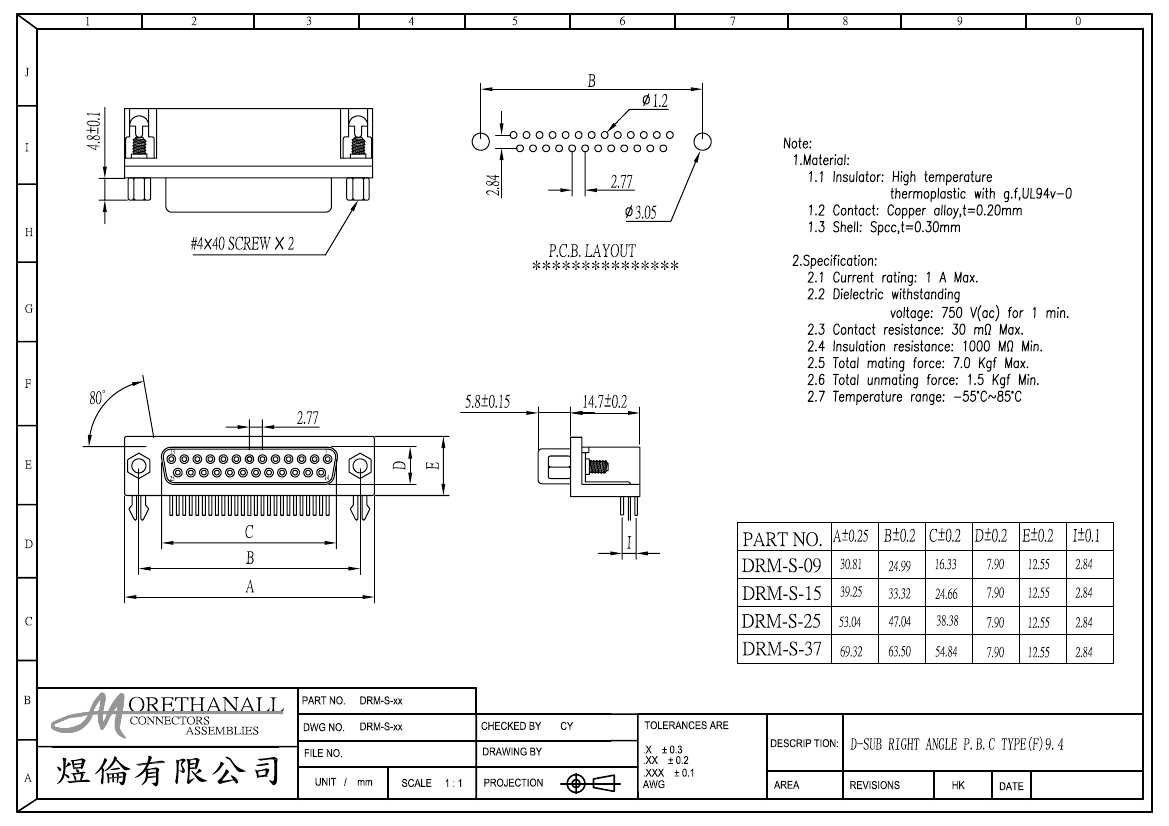

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

Parameter Name	Attribute value
Objectid	303825666
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CLINCH NUT ON FRONT
body width	0.494 inch
subject depth	0.579 inch
body length	2.729 inch
Body/casing type	PLUG
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	DRM-S
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

	DRM-S-37	DRM-S-25
Description	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Objectid	303825666	303825665
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	CLINCH NUT ON FRONT	CLINCH NUT ON FRONT
body width	0.494 inch	0.494 inch
subject depth	0.579 inch	0.579 inch
body length	2.729 inch	2.088 inch
Body/casing type	PLUG	PLUG
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	DRM-S	DRM-S
Plug contact pitch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40
Installation option 2	CLINCH NUT	CLINCH NUT
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell material	STEEL	STEEL
Terminal pitch	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER
Total number of contacts	37	25
